KJF

KOR


ULTRAPRECISION LOCATOR

YOU CAN COUNT ON OUR EXPERTISE

    •  Click to watch the video
    Features
    • Simple Installation
    • Repeatability: 3ųm
    • Compact Size
    • Load Weight: Max. ~500kg
    • Tightening Force : Min. 203kgf~
    • Operating Temperature : 0~70℃
    • Locating function only(No clamping function)
    • Locating by hand

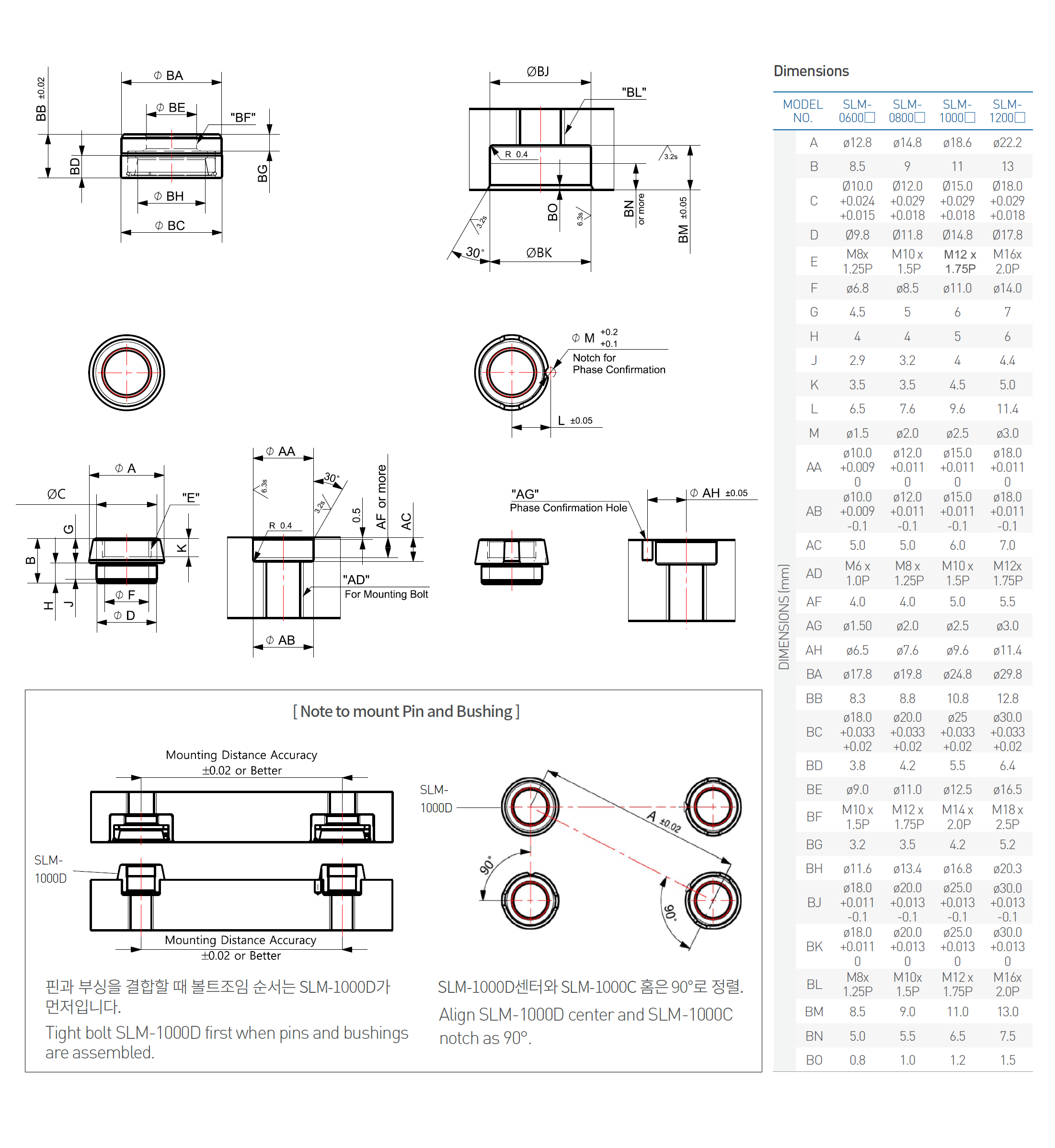

    MODEL NO Order Download
    2D 3D PDF
    SLM-0600□
    SLM-0800□
    SLM-1000□
    SLM-1200□
