KJF

KOR

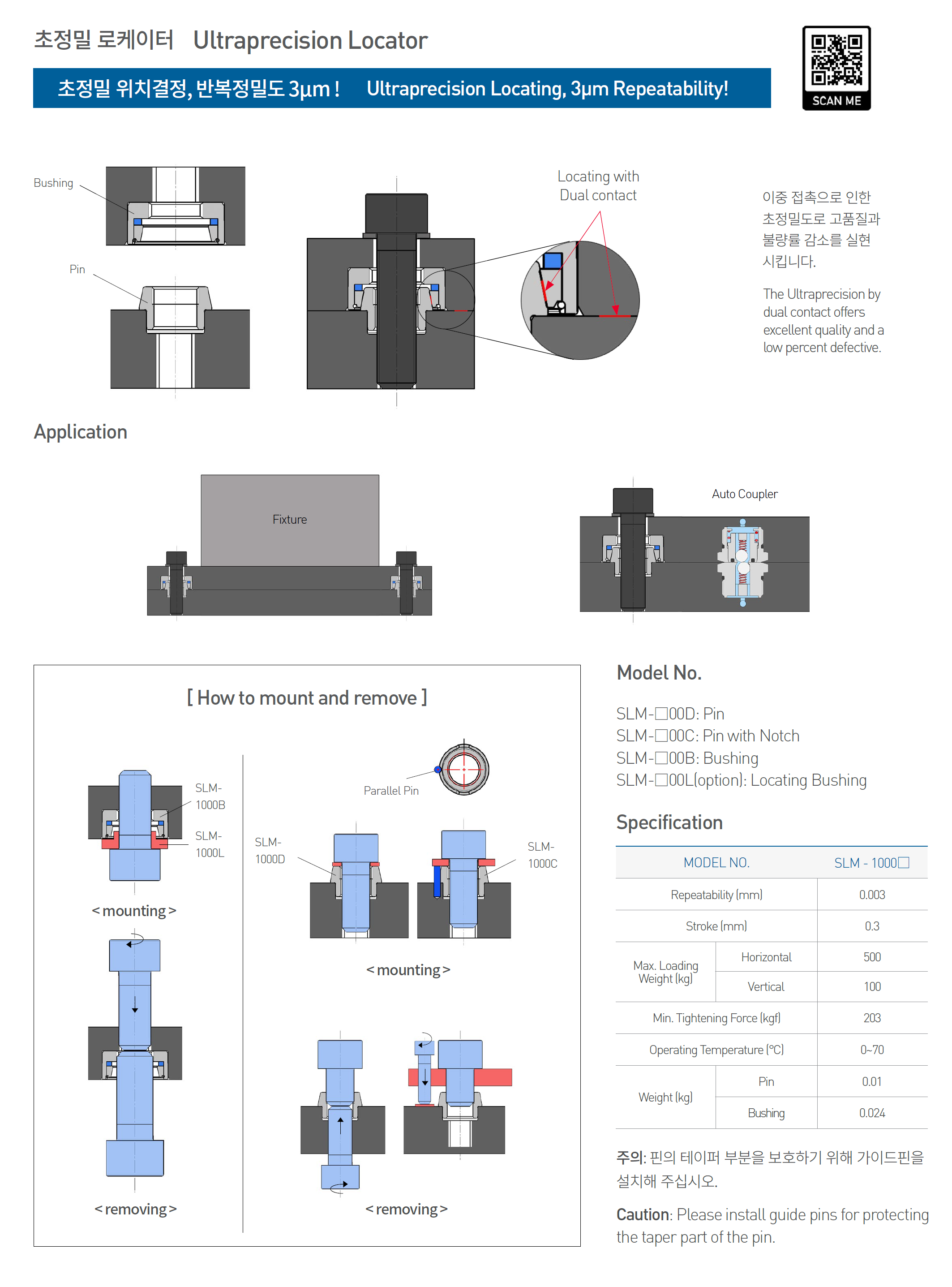

ULTRAPRECISION LOCATOR

YOU CAN COUNT ON OUR EXPERTISE

Features
  • Simple Installation
  • Repeatability: 3ųm
  • Compact Size
  • Load Weight: Max. ~500kg
  • Tightening Force : Min. 203kgf~
  • Operating Temperature : 0~70℃
  • Locating function only(No clamping function)
  • Locating by hand

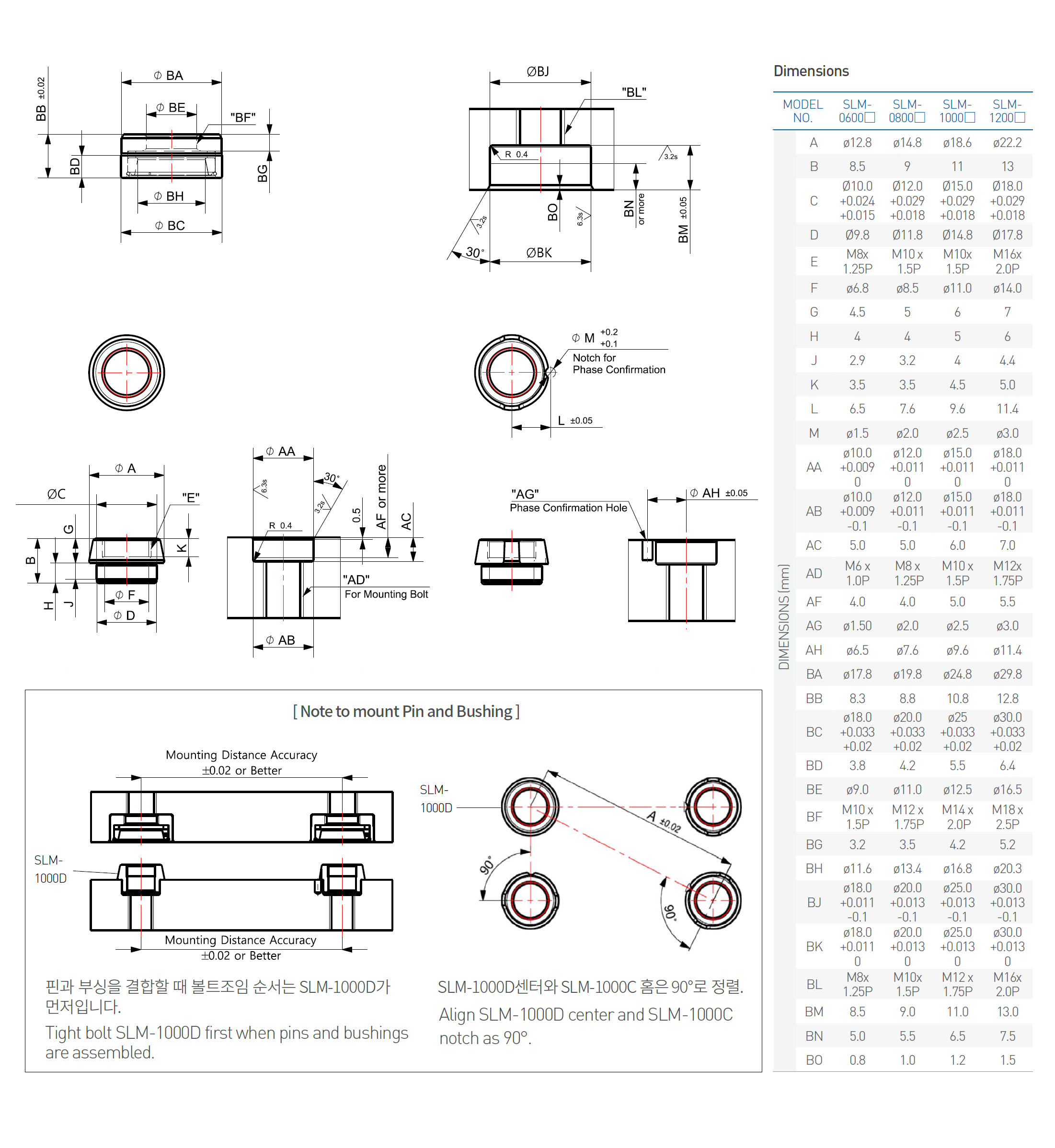

MODEL NO Order Download
2D 3D PDF
SLM-0600□
SLM-0800□
SLM-1000□
SLM-1200□
