| Model No. | Clamping Force(kgf) | Piston Diameter(ø) |
Effective Area(㎠) |
Stroke(mm) | Operating Pressure Range (kgf/㎠) |
Operating Temperature Range(℃) |
Weight (kg) |
||
|---|---|---|---|---|---|---|---|---|---|
| @5kgf/㎠ | Total | Clamp | Extra | ||||||
| MLC-2038A | 13 | 20 | 3.14 | 27.5 | 25.0 | 2.5 | 3~9.99 | 0~60 | 0.64 |
| MLC-2547A | 20 | 25 | 4.9 | 34.0 | 31.5 | 2.5 | 1.51 | ||
| MLC-3255A | 31 | 32 | 8.04 | 38.0 | 35.5 | 2.5 | 2.22 | ||
| MLC-4065A | 49 | 40 | 12.56 | 44.0 | 41.0 | 3.0 | 3.68 | ||
| MLC-5080A | 79 | 50 | 19.63 | 50.0 | 47.0 | 3.0 | 5.86 | ||

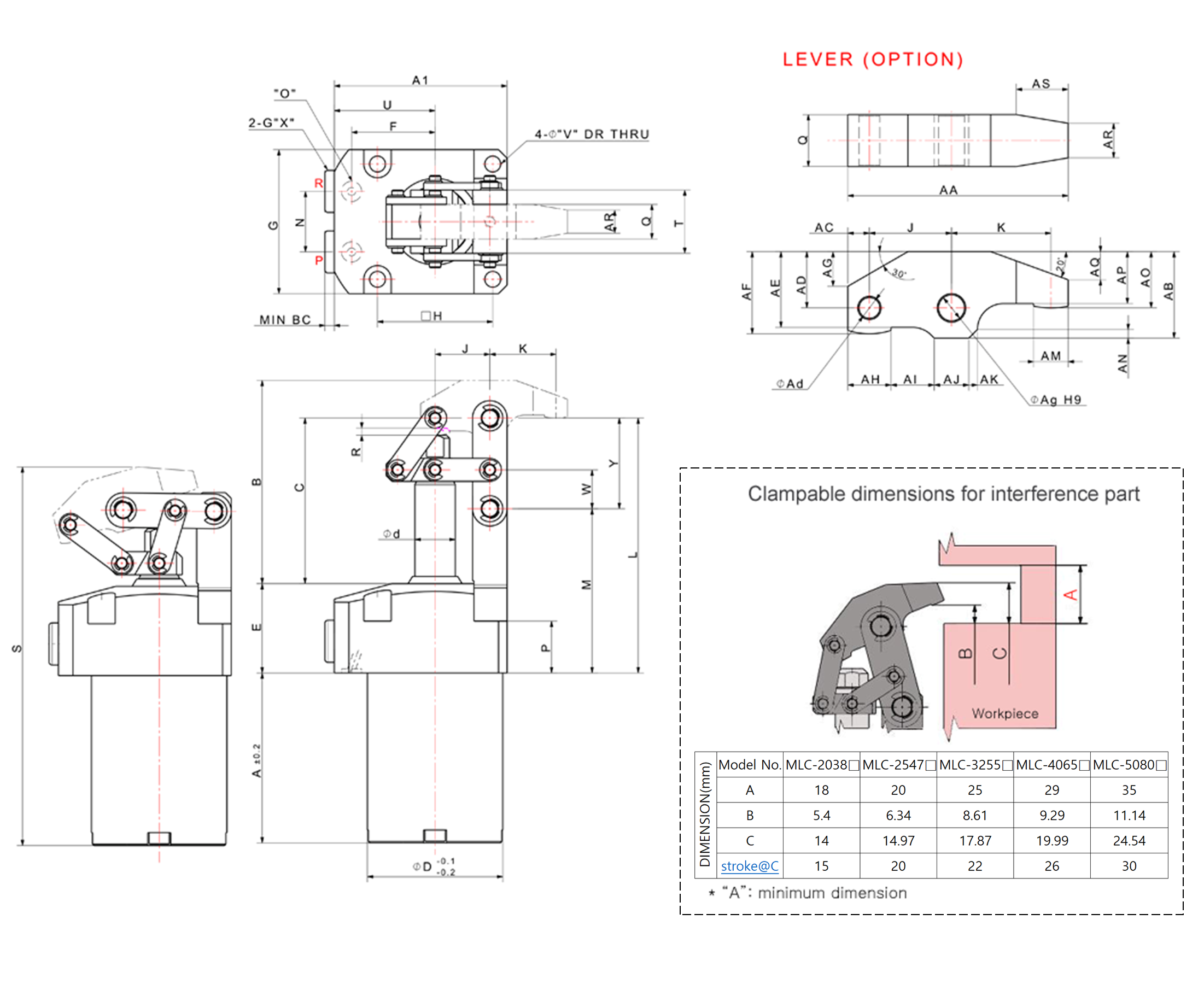

| MODEL NO | Download | Dimensions(mm) | |||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2D | 3D | A | A1 | B | C | øD | ød | E | F | G | H | J | K | L | M | N | O | P | Q | R | S | T | U | V | W | X | Y | AA | AB | AC | AD | ØAd | ØAg | AE | AF | AG | AH | AI | AJ | AK | AM | AN | AO | AP | AQ | AR | AS | ||
| MLC-2038A |  |
 |
 |
48.0 | 51.0 | 59.5 | 46.5 | 38.0 | 10.0 | 25.0 | 22.5 | 41.0 | 33.0 | 17.5 | 21.5 | 71.5 | 45.5 | 18.0 | 10 | 15.0 | 10.0 | 2.5 | 107.5 | 19.0 | 28.0 | 4.5 | 10.0 | PT1/8 | 26.0 | 47.5 | 20.0 | 4.5 | 13.0 | 4.8 | 5.0 | 17.5 | 19.0 | 8.0 | 11.0 | 7.0 | 8.0 | 2.0 | 8.0 | 2.0 | 13.0 | 12.0 | 6.5 | 6.0 | 12.0 |
| MLC-2547A | |
|
|
59.0 | 60.0 | 70.5 | 57.5 | 47.0 | 14.0 | 31.0 | 29.0 | 50.0 | 40.0 | 19.0 | 23.0 | 88.5 | 57.0 | 21.0 | 11.0 | 18.0 | 12.0 | 2.5 | 131.4 | 22.0 | 35.0 | 5.5 | 13.5 | G1/8 | 31.5 | 51.0 | 20.0 | 5.0 | 13.0 | 4.8 | 6.0 | 17.5 | 19.0 | 8.0 | 10.0 | 10.0 | 8.0 | 2.0 | 8.0 | 2.0 | 13.0 | 12.0 | 6.5 | 8.0 | 12.0 |
| MLC-3255A | |
|
|
70.0 | 67.0 | 79.5 | 64.5 | 55.0 | 14.0 | 31.0 | 32.0 | 59.0 | 47.0 | 21.5 | 28.0 | 95.5 | 60.5 | 21.0 | 11.5 | 17.0 | 16.0 | 2.5 | 148.2 | 28.0 | 37.5 | 6.6 | 15.0 | G1/8 | 35.0 | 59.0 | 23.0 | 5.5 | 15.0 | 5.8 | 8.0 | 19.5 | 21.0 | 10.0 | 11.0 | 11.0 | 8.0 | 5.0 | 8.0 | 3.0 | 15.0 | 14.0 | 8.0 | 12.0 | 16.0 |
| MLC-4065A | |
|
|
79.0 | 80.0 | 98.0 | 80.0 | 65.0 | 16.0 | 38.0 | 37.0 | 69.0 | 55.0 | 24.5 | 31.0 | 118.0 | 72.5 | 25.0 | 14.0 | 21 | 19.0 | 3.0 | 171.4 | 36.0 | 45.5 | 9.0 | 17.5 | G1/4 | 45.5 | 66.5 | 28.0 | 7.0 | 18.0 | 6.8 | 10.0 | 24.5 | 26.0 | 14.0 | 14.0 | 12.5 | 10.0 | 5.0 | 8.0 | 5.0 | 18.0 | 17.0 | 9.5 | 14.0 | 170. |
| MLC-5080A | |
|
|
86.0 | 93.0 | 111.0 | 89.0 | 80.0 | 20.0 | 44.0 | 44.0 | 84.0 | 67.0 | 30.0 | 37.0 | 133.0 | 83.0 | 28.0 | 16.0 | 23.2 | 22.0 | 3.0 | 193.5 | 42.0 | 51.0 | 11.0 | 19.0 | G1/4 | 50 | 78.0 | 34.0 | 7.0 | 22.0 | 6.8 | 12.0 | 29.0 | 32.0 | 16.0 | 14.0 | 16.0 | 12.0 | 7.0 | 8.0 | 5.0 | 22.0 | 21.0 | 10.6 | 16.0 | 20.0 |
