Edge Clamp

YOU CAN COUNT ON OUR EXPERTISE

Features
  • Single-acting
  • Compact design
  • Easy installating
  • Operating Pressure : 15~250kgf/㎠
  • Operating Temperature : 0~60℃
When processing the upper surface of the workpiece with a face cutter, you can clamp the side of the workpiece with the edge clamp without tool interference.

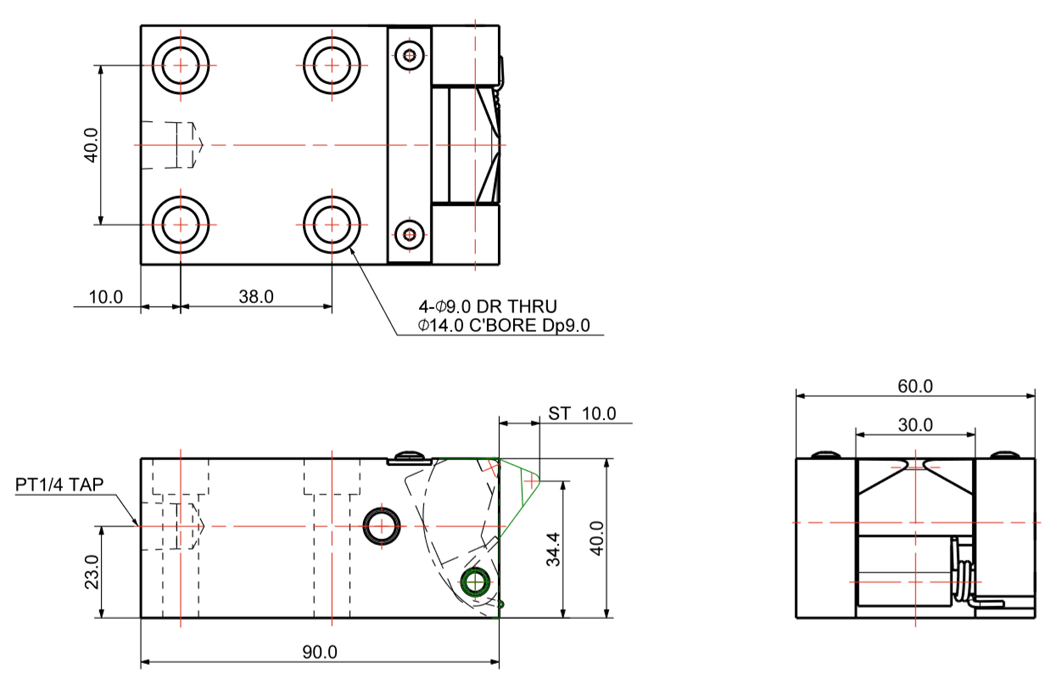

Specifications
MODEL NO. Max. Clamping Force (Ton) Oil Capacity (㎤) Effective Area (㎠) Stroke (mm) Piston Diameter (mm) Weight (kg) Download
2D 3D PDF
EDG-2510 1.22 4.9 4.9 10.0 25.0 1.41
