Cartridge Type Rotary Joint

YOU CAN COUNT ON OUR EXPERTISE

★Assembling★
Features
  • Insertion into the hollow
  • Supply hydraulic to rotating part
  • Prevent piping twisting
  • Gas Nitriding Surface
  • Max. Pneumatic Operating Pressure : 9.9kgf/㎠
  • Max. Hydraulic Operating Pressure : 150kgf/㎠
  • Operating Temperature : 0~70℃
  • Max. RPM : 120rpm
  • Sealing Material : Exclusive seal
  • Fluid : hydraulic, air, cutting oil

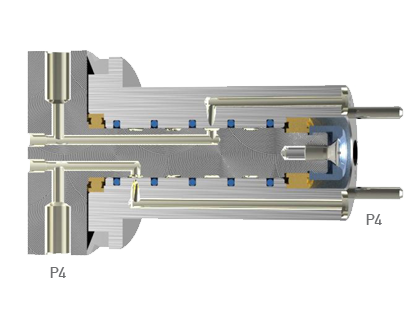

  • Structure
  • Application
The Cartridge type is inserted into the hollow shaft of the index, thereby reducing the overall length of the fixture.
Bolts are mounted from the outside to the inside and there is no change to the reference point during repair for easy replacement.
Specifications
MODEL NO. RTC-4040C RTC-4045C RTC-5055C RTC-6055C RTC-5070C RTC-8070C
Number of Lines 4 4 5 6 5 8
Fluid Hydraulic Oil, Air, Cutting Fluid
Max. Operating Pressure 150kgf/㎠
Max. Revolutions per Minute 120rpm
Operating Temperature Range 0~70℃
Weight 1.3 kg 1.4 kg 2.33 kg 2.41 kg 3.79 kg 4.58 kg
Download 2D 3D PDF 2D 3D PDF 2D 3D PDF 2D 3D PDF 2D 3D PDF 2D 3D PDF
