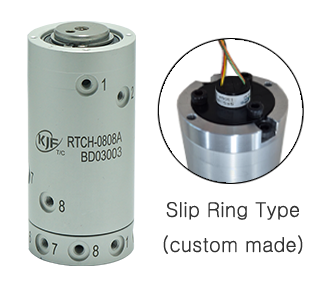

ROTARY JOINT Pneumatic Type
YOU CAN COUNT ON OUR EXPERTISE
-
-
Features
- Stable rotational torque
- Connect pneumatic pressure to the
rotating body
- Prevent hose/tube twisting
- Working fluid: Pneumatic (air)
- Operating pressure: 3~9.9 kgf/cm2
- Operating temperature: 0~70°C
- Max. rotation speed: 900 rpm
Introduction

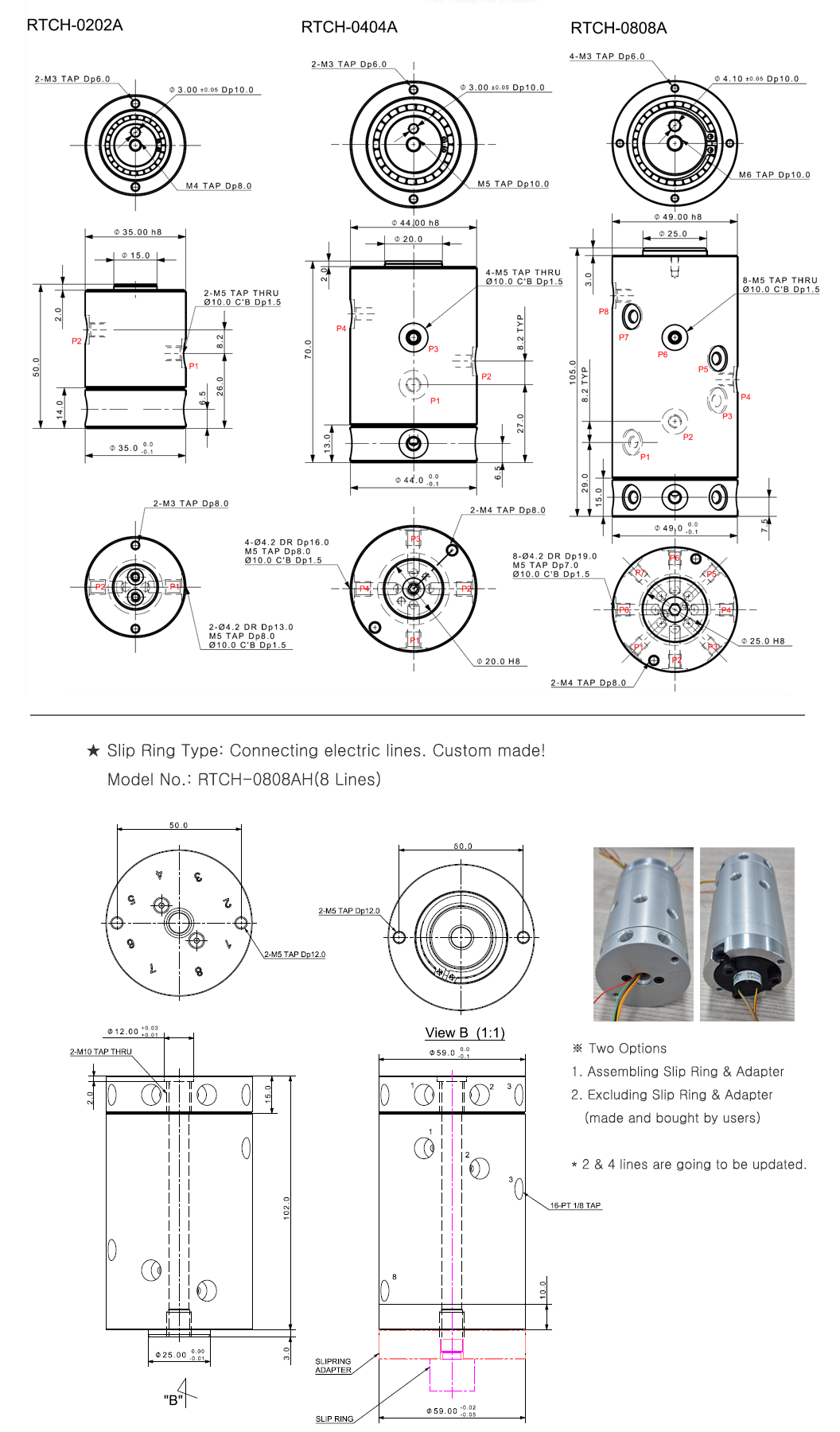

Specifications
| Model No. |
RTCH-0202A |
RTCH-0404A |
RTCH-0808A |
| Number of Lines |
2 |
4 |
8 |
| Fluid |
Air |
Air |
Air |
| Max. Operating Pressure |
3~9.99kgf/㎠ |
3~9.99kgf/㎠ |
3~9.99kgf/㎠ |
| Max. RPM |
900rpm |
900rpm |
900rpm |
| Operating Temperature |
0~70℃ |
0~70℃ |
0~70℃ |
| Weight |
0.16kg |
0.40kg |
0.76kg |
