POWER CLAMP

YOU CAN COUNT ON OUR EXPERTISE

Features
  • Compact Size
  • Magnet built-in
  • Clamp/unclamp detection sensor can be installed
  • Double acting operation
  • pneumatically operated
  • Holding force generated after clamping
  • Inner Dia. Range : ø16~26
  • Operating Pressure Range : 3~9.99kgf/㎠
  • Operating Temperature Range : 0~60℃
  • Supplied with assembled clamp arm

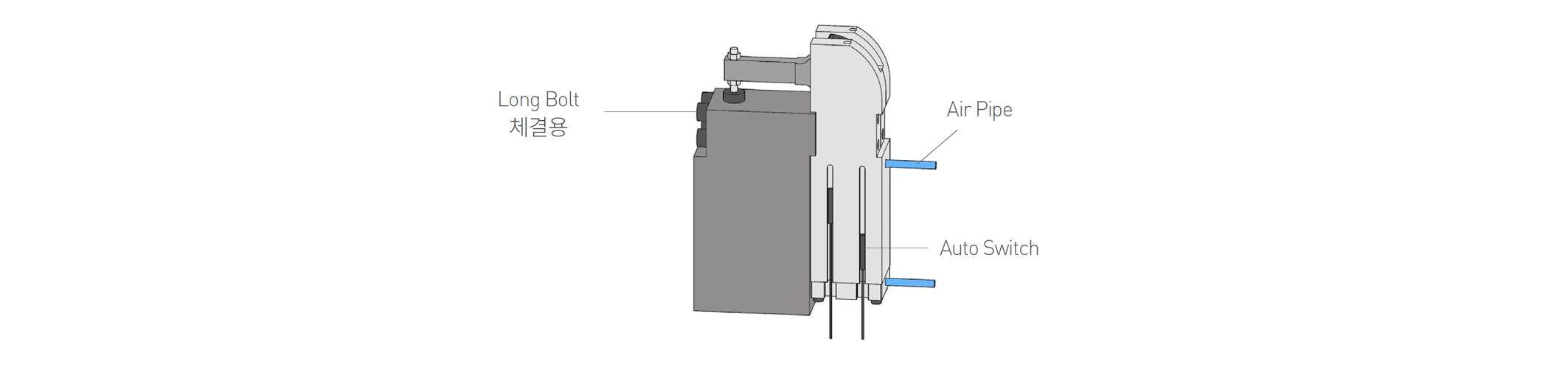

    Application
Model No.
  • 1
    Clamp Type
    PAC = POWER CLAMP
  • 2
    Piston Diameter
    ex ) 16 = Ø16
  • 3
    Cylinder Force
    ex ) 10 = 10kgf/㎠@5bar
  • 4
    Type
    A = Pneumatic (Air)
    E = Sensing
Specifications
Model No. Pistion Diameter
mm		 Max. Clamping Torque(kgf.cm) Max. Holding Torque(kgf.cm)
@5bar		 Operating
Pressure Range
(kgf/㎠)		 Operating
Temperature
Range(℃)		 Weight
(kg)
@5bar
PAC-1610AE 16.0 66.0 612.0 3~9.99 0~60 0.25
PAC-2626AE 26.0 182.0 1014.0 0.50

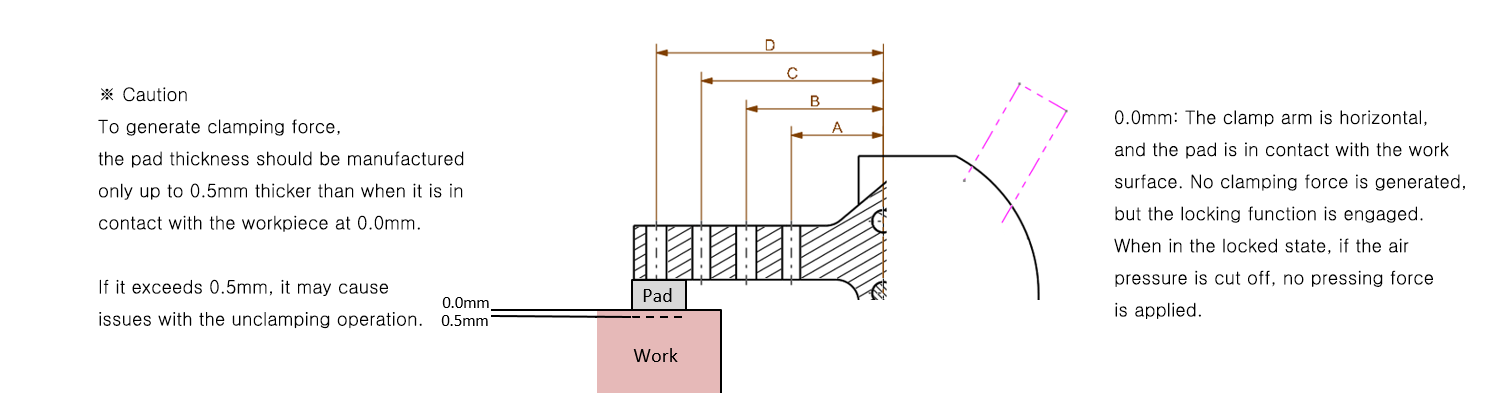

Operation

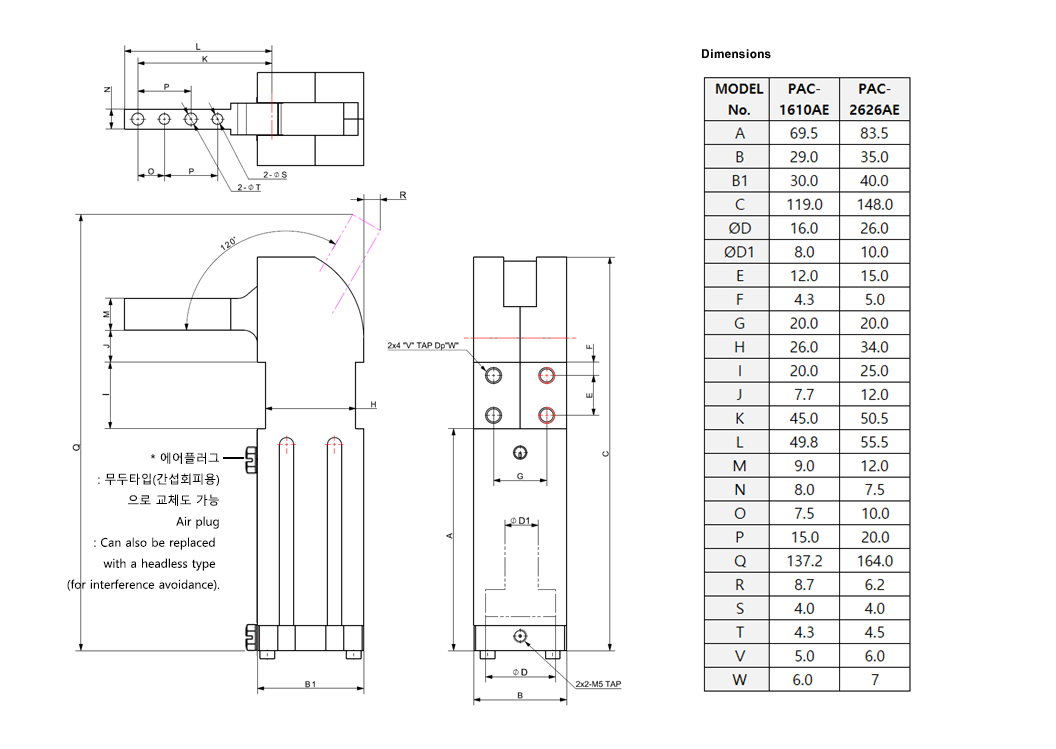

    • Drawing
    Drawing Download
    MODEL NO Download
    2D 3D PDF
    PAC-1610AE
    PAC-2626AE
