SWING CLAMPS
YOU CAN COUNT ON OUR EXPERTISE
- Introduction
-

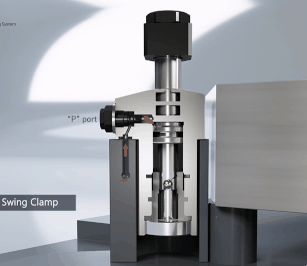

Swing clamp is designed to straighten after being rotated by the led groove inside the cylinder.
Swing clamp dodges interference when loading a structure and its compact size is intended to maximize design convenience for the designer.
Clamping force is applied to a structure in a vertical direction to ensure stable clamping.
The products are available in various types and sizes to suit your installation environment.

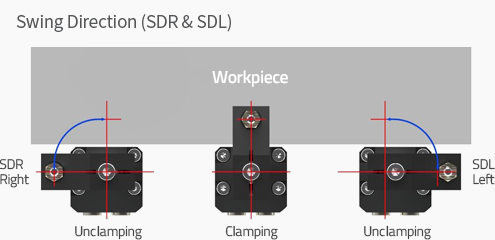

- * Operation: "SDL" TYPE, SWING LEFT & DOWN STRAIGHT *
-
-
COMPACT TYPE
Subminiature size
Piston Dia. : ø10 & 14
Operating Pressure : 15~150kgf/㎠
-
-
COMPACT TYPE
LOW PRESSURE
Piston Dia. : ø25~60
Operating Pressure : 20~70kgf/㎠
-
-
TOP FLANGE TYPE
NIPPLE / GASKET METHOD
Piston Dia. : ø25~55
Operating Pressure : 20~150kgf/㎠
-
-
BOTTOM FLANGE TYPE
LOWER PART FLANGE
Piston Dia. : ø25~55
Operating Pressure : 20~150kgf/㎠
-
-
PIN HOLE ROD LEVER
Drawing for
TOP & BOTTOM FLANGE TYPE
