Top Flange Type Swing Clamp

YOU CAN COUNT ON OUR EXPERTISE

Piping and Manifold Method

Features
  • Threaded body housing
  • Nipple piping type
  • Gasket manifold type
  • Easy exchanging lever
  • Piston Diameter : ø25~55
  • Operating Pressure : 20~150kgf/㎠
  • Operating Temperature : 0~60℃
  • Lever is option item
Model No.
  • 1
    Clamp Type
    SDR = SWING RIGHT
    SDL = SWING LEFT
  • 2
    Piston Diameter
    ex ) 25 = Ø25
  • 3
    Pistion Rod Stroke
    ex ) 22 = 22mm
  • 4
    Type
    P = Pin Hole Rod
    G = Gasket
    GP = Gasket + Pin Hole Rod
    GV = Gasket + Flow control valve
    GPV = Gasket + Pin Hole Rod + Flow Control Valve
    No sign = Standard
  • 5
    Swing Angle
    No sign = 90°
    ex) 30 = 30°
SWING CLAMP TOP FLANGE TYPE
  • SDR/L-2522
  • SDR/L-3030
  • SDR/L-4045
  • SDR/L-5555
Specifications
Model No. Type Cylinder
Force(kgf)		 Piston
Diameter(ø)		 Effective
Area(㎠)		 Stroke(mm) Oil
Capacity(㎤)
at Clamping		 Operating
Pressure Range
(kgf/㎠)		 Operating
Temperature
Range(℃)		 Weight
(kg)
Swing Straight Total
SDR/L-2522 Standard 590 25 2.36 12 10 22 5.20 20~150 0~60 1.40
G
SDR/L-3030 Standard 780 30 3.13 16 14 30 9.38 2.40
G
SDR/L-4045 Standard 1600 40 6.41 16 29 45 28.83 4.20
G
SDR/L-5555 Standard 3530 55 14.13 25 30 55 77.72 8.90
G

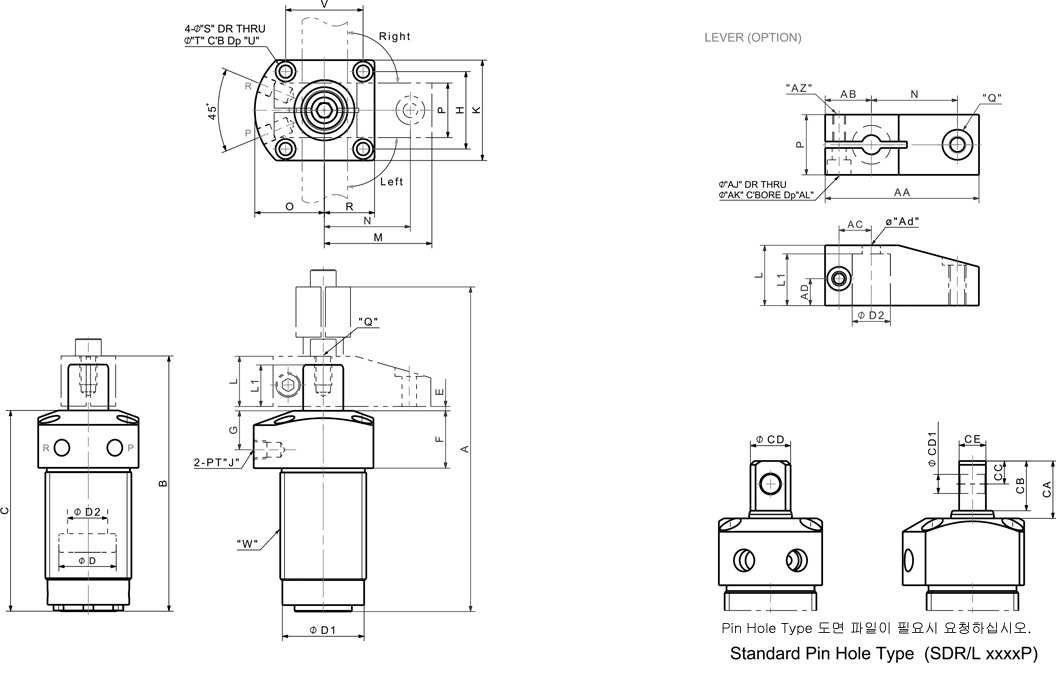

- Standard Type
MODEL NO Download Dimensions(mm)
2D 3D PDF A B C øD øD1 øD2 E F G H J K L L1 M N O P Q R S T U V W AA AB AC AD øAd AJ AK AL AZ CA CB CC øCD1 øCD CE
SDR/L-2522 152 130 99 25 37 18 3 30 21 42 PT 1/8 55 28 24 50 40 32 28 M8x1.25P 19 6.5 11 15 25 M40x1.5P 71.5 21.5 15 12.5 9 6.5 11 7 M6 27 22.5 10 8 17 12
SDR/L-3030 188 158 123 30 45.5 22.4 3 35 22 42 PT 1/4 54 32 27 60 50 36.5 32 M10x1.5P 27 6.5 11 15 42 M48x1.5P 88 28 19 14 11 9 14 9 M8 30 26 12 10 21 14
SDR/L-4045 223 178 140 40 57 28 3 40 26 54 PT 1/4 70 35 29 75 60 48.5 38 M12x1.75P 35 9 14 20 54 M60x1.5P 110 35 24.5 15 13 11 17 11 M12 34 31 14 12 26.5 18
SDR/L-5555 280 225 182 55 76 35 3 45 30 70 PT 3/8 89 40 34 90 70 59 60 M16x2.0P 44.5 11 17 25 70 M80x1.5P 130 40 28 17 17 11 17 20 M16 43 38 18 16 33 22

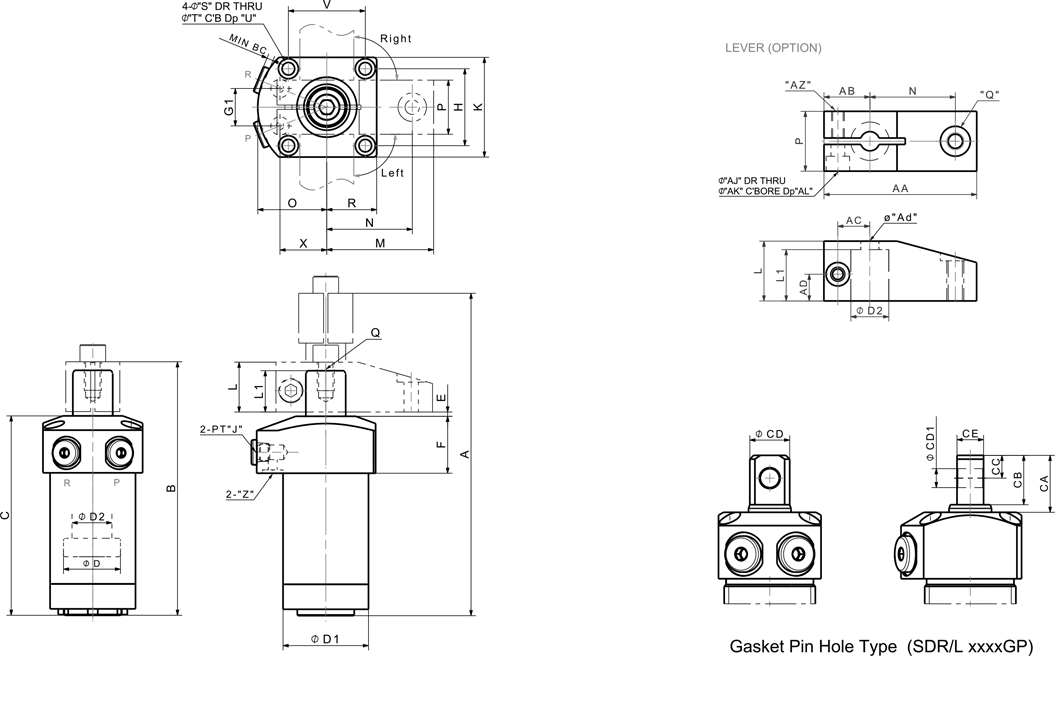

- G Type
MODEL NO Download Dimensions(mm)
2D 3D PDF A B C øD øD1 øD2 E F G1 H J K L L1 M N O P Q R S T U V X Z AA AB AC AD øAd AJ AK AL AZ BC CA CB CC øCD1 øCD CE
SDR/L-2522G 152 130 99 25 37 18 3 30 20 42 PT 1/8 55 28 24 50 40 32 28 M8x1.25P 19 6.5 11 15 25 23 P6 71.5 21.5 15 12.5 9 6.5 11 7 M6 3.9 27 22.5 10 8 17 12
SDR/L-3030G 188 158 123 30 45.5 22.4 3 35 23 42 PT 1/4 54 32 27 60 50 36.5 32 M10x1.5P 27 6.5 11 15 42 25.5 P6 88 28 19 14 11 9 14 9 M8 3.3 30 26 12 10 21 14
SDR/L-4045G 223 178 140 40 57 28 3 40 31 54 PT 1/4 70 35 29 75 60 48.5 38 M12x1.75P 35 9 14 20 54 35 P6 110 35 24.5 15 13 11 17 11 M12 3.3 34 31 14 12 26.5 18
SDR/L-5555G 280 225 182 55 76 35 3 45 35 70 PT 3/8 89 40 34 90 70 59 60 M16x2.0P 44.5 11 17 25 70 43 P10 130 40 28 17 17 11 17 20 M16 1.8 43 38 18 16 33 22

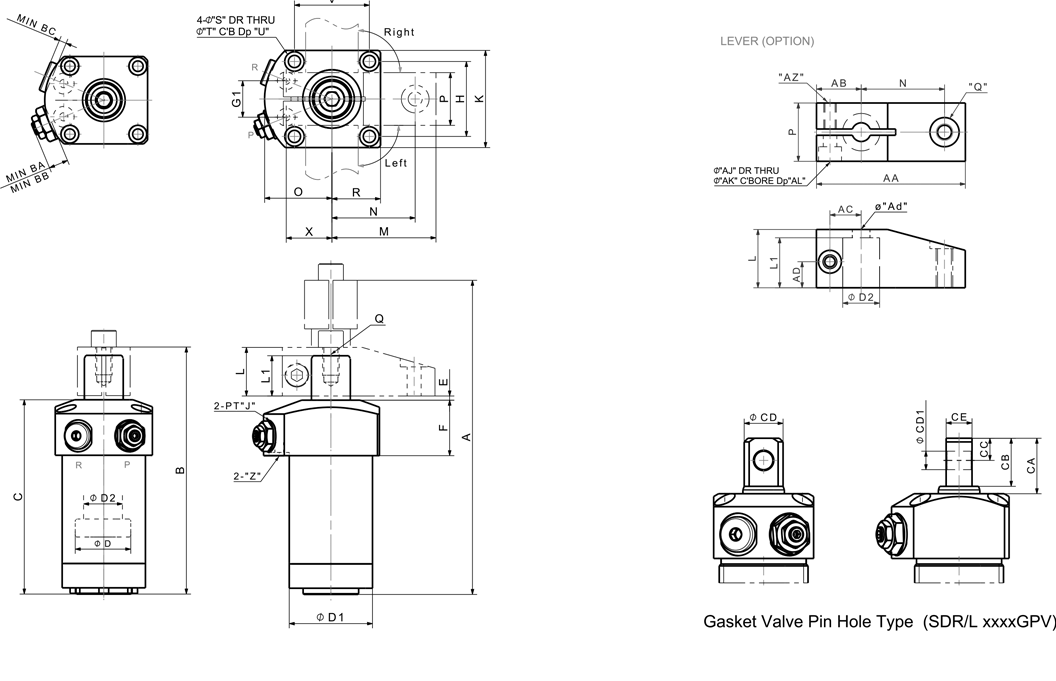

- GV Type
MODEL NO Download Dimensions(mm)
2D 3D PDF A B C øD øD1 øD2 E F G1 H J K L L1 M N O P Q R S T U V X Z AA AB AC AD øAd AJ AK AL AZ BA BB BC CA CB CC øCD1 øCD CE
SDR/L-2522GV 152 130 99 25 37 18 3 30 20 42 PT 1/8 55 28 24 50 40 32 28 M8x1.25P 19 6.5 11 15 25 23 P6 71.5 21.5 15 12.5 9 6.5 11 7 M6 7.2 13.7 3.9 27 22.5 10 8 17 12
SDR/L-3030GV 188 158 123 30 45.5 22.4 3 35 23 42 PT 1/4 54 32 27 60 50 36.5 32 M10x1.5P 27 6.5 11 15 42 25.5 P6 88 28 19 14 11 9 14 9 M8 7.2 16.8 3.3 30 26 12 10 21 14
SDR/L-4045GV 223 178 140 40 57 28 3 40 31 54 PT 1/4 70 35 29 75 60 48.5 38 M12x1.75P 35 9 14 20 54 35 P6 110 35 24.5 15 13 11 17 11 M12 7.2 16.8 3.3 34 31 14 12 26.5 18
SDR/L-5555GV 280 225 182 55 76 35 3 45 35 70 PT 3/8 89 40 34 90 70 59 60 M16x2.0P 44.5 11 17 25 70 43 P10 130 40 28 17 17 11 17 20 M16 5.7 15.3 1.8 43 38 18 16 33 22
