Pneumatic Type Swing Clamp

YOU CAN COUNT ON OUR EXPERTISE

Piping Method
Features
  • Operate with pneumatic
  • Double-acting
  • Gas Nitriding Surface
  • Easy installation
  • Piston Diameter : ø15~50
  • Operating Pressure : 3~9.9kgf/㎠
  • Operating Temperature : 0~60℃
  • Lever is option item
  • < SWING AT CLAMPING: "SDL" TYPE, COUNTER-CLOCKWISE/"SDR" TYPE CLOCKWISE >
    Model No.
    • 1
      Clamp Type
      SDR = SWING RIGHT
      SDL = SWING LEFT
    • 2
      Piston Diameter
      ex ) 15 = Ø15
    • 3
      Piston Rod Stroke
      ex ) 14 = 14mm
    • 4
      Type
      A = Pneumatic (Air)
    • 5
      Swing Angle
      No sign = 90°
      ex) 30 = 30°
    SWING CLAMP PNEUMATIC TYPE
    • SDR / L-1514A
    • SDR / L-2018A
    • SDR / L-2518A
    • SDR / L-3025A
    • SDR / L-4032A
    • SDR / L-5032A
    Specifications
    Model No. Cylinder Force(kgf) Piston
    Diameter(ø)
    Effective
    Area(㎠)
    Stroke(mm) Swing Angle
    (Repeated Accuracy)
    Operating
    Pressure Range
    (kgf/㎠)
    Operating
    Temperature
    Range(℃)
    Weight
    (kg)
    Max. Nom. Swing Straight Total
    SDR/L-1514A 12.5 3.8 15 1.26 7 7 14 ±3°
    (±0.5°)
    3~9.9 0~60 0.18
    SDR/L-2018A 22.1 5.8 20 2.20 9 9 18 0.32
    SDR/L-2518A 40.8 12.4 25 4.12 8 10 18 0.50
    SDR/L-3025A 58.8 17.8 30 5.93 15 10 25 0.92
    SDR/L-4032A 106.9 32.4 40 10.79 17 15 32 1.51
    SDR/L-5032A 169.1 51.2 50 17.08 17 15 32 2.07

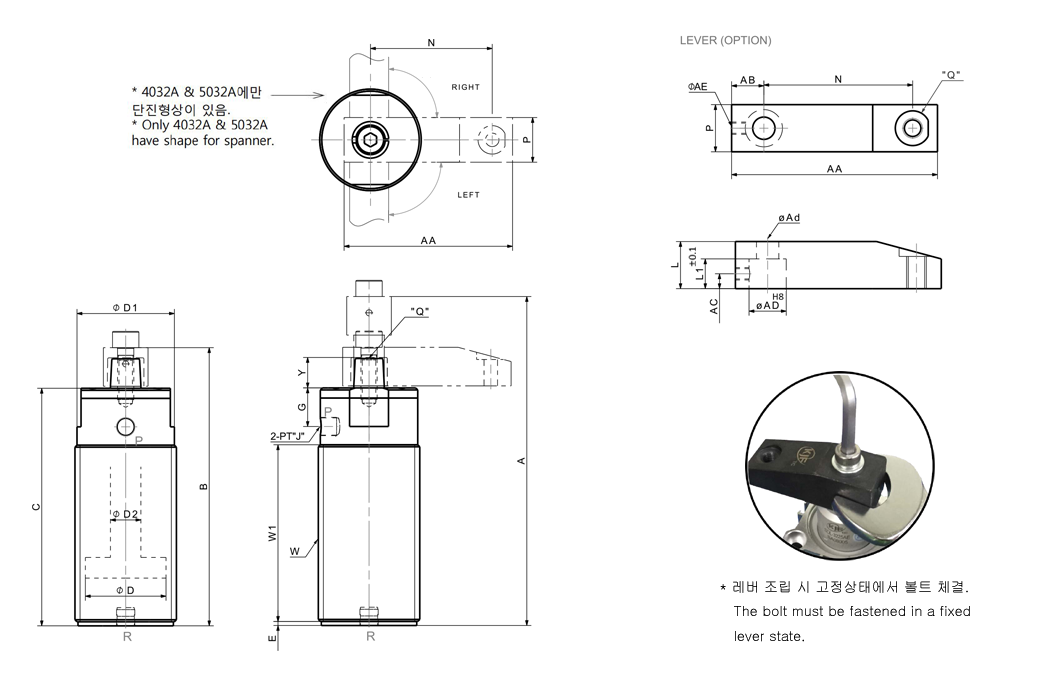

    MODEL NO Dimensions(mm) Download
    A B C øD øD1 øD2 E G J L L1 N P Q W W1 Y AA AB AC øAd øAD øAE 2D 3D PDF
    SDR/L-1514A 97 83 70 15 18.5 8 4 11 M5 12 8.5 25 14 M4 M20x1.0P 49.5 9.5 38.5 8.5 7 4.5 11 2
    SDR/L-2018A 114 96 79 20 23 10 3 11 M5 16 12.5 30 16 M5 M25x1.5P 59 13.5 45 10 10 5.5 13 3
    SDR/L-2518A 120 102 85 25 30 10 2 12 M5 16 12.5 35 16 M5 M32x1.5P 65 13.5 55 12 10 6 13 3
    SDR/L-3025A 150 125 105 30 38 12 2 12 PT 1/8 19 12.5 35 19 M6 M40x1.5P 83 13.5 55 13 10 7 15 3
    SDR/L-4032A 169 137 117 40 48 15 2 19 PT 1/8 19 14 60 22 M8 M50x1.5P 87 15 83 13 11 9 18 3
    SDR/L-5032A 173 141 120 50 58 18 16 17 PT 1/8 19 14 70 25 M8 M60x1.5P 78 16 95 15 6 9 21 3
