Mounting Base Accessories

YOU CAN COUNT ON OUR EXPERTISE

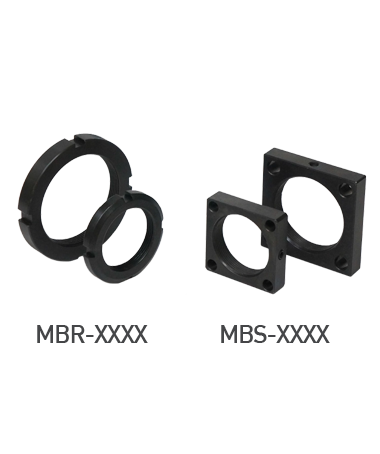

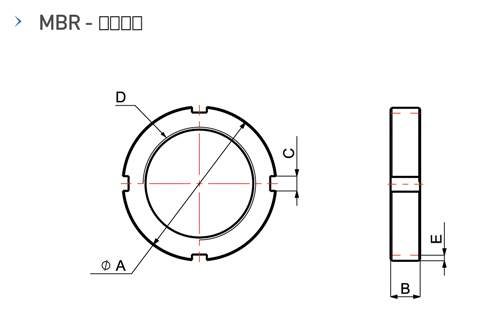

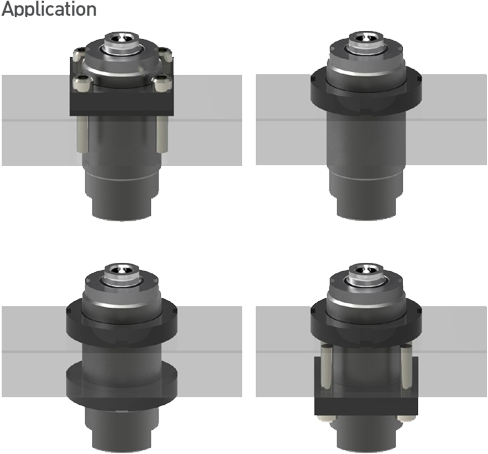

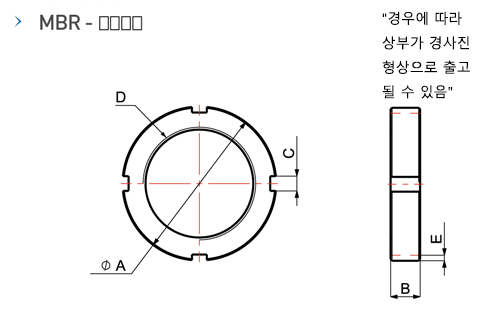

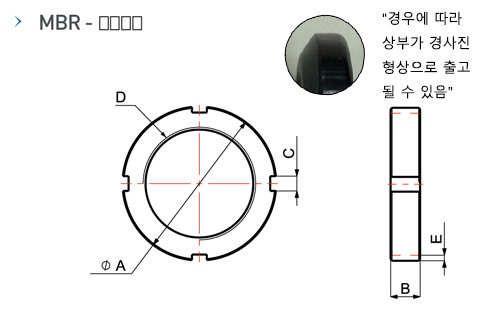

MODEL NO. DIMENSIONS (mm) Download
øA B C D E 2D 3D PDF
MBR-2010 32 10 4 M20 x P1.0 2.0
MBR-2110 32 M20 x P1.5
MBR-2510 38 5 M25 x P1.5
MBR-2810 40 M28 x P1.5
MBR-3010 45 M30 x P1.5
MBR-3210 45 M32 x P1.5
MBR-3610 52 M36 x P1.5
MBR-3810 52 M38 x P1.5
MBR-4010 58 6 M40 x P1.5 2.5
MBR-4510 65 M45 x P1.5
MBR-4811 70 11 M48 x P1.5
MBR-5011 70 M50 x P1.5
MBR-6011 80 7 M60 x P1.5 3.0
MBR-6111 80 M60 x P2.0
MBR-6512 85 12 M65 x P2.0
MBR-7012 92 8 M70 x P2.0 3.5
MBR-8015 105 15 M80 x P2.0
MBR-9016 120 16 10 M90 x P2.0 4.0
MODEL NO. DIMENSIONS (mm)
øA B C D E 2D 3D PDF
MBS-2012 30 12 22 M20 x P1.0 4.5
MBS-2112 30 M20 x P1.5
MBS-2512 38 28 M25 x P1.5 5.5
MBS-2812 40 29 M28 x P1.5 6.7
MBS-3012 42 32 M30 x P1.5 7.0
MBS-3212 42 M32 x P1.5
MBS-3615 45 15 36 M36 x P1.5
MBS-3815 50 38 M38 x P1.5
MBS-4012 50 12 40 M40 x P1.5
MBS-4518 60 18 45 M45 x P1.5 9.0
MBS-4820 60 20 M48 x P1.5
MBS-5012 65 12 50 M50 x P1.5
MBS-6015 75 15 60 M60 x P1.5
MBS-6025 75 25 M60 x P1.5
MBS-6125 75 M60 x P2.0
MBS-6525 80 65 M65 x P2.0
MBS-7025 90 70 M70 x P2.0 11.0
MBS-8025 100 80 M80 x P2.0 13.0
MBS-9025 110 90 M90 x P2.0
