Rotary Joint
YOU CAN COUNT ON OUR EXPERTISE
Features
Supply hydraulic to rotating part
Prevent piping twisting
Gas Nitriding Surface
Max. Pneumatic Operating Pressure : 9.9kgf/㎠
Max. Hydraulic Operating Pressure : 150kgf/㎠
Operating Temperature : 0~70℃
Max. RPM : 120rpm
Sealing Material : Exclusive seal
Fluid : hydraulic, air, cutting oil
Structure
Application
It is useful for exclusive processing machine or assembly with index table as well as fixture of horizontal machining center.

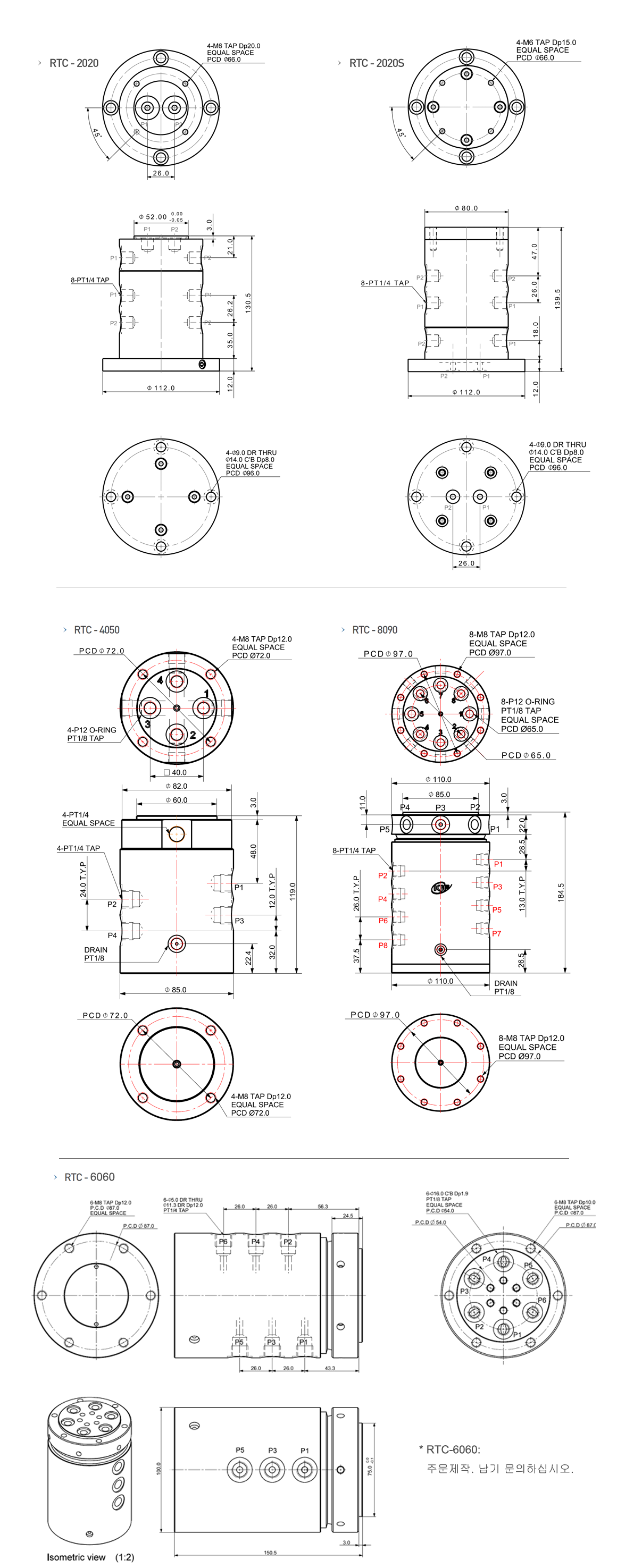

Specifications
MODEL NO.
RTC-2020
RTC-2020S
RTC-4050
RTC-8090
Number of Lines
2
2
4
8
Fluid
Hydraulic Oil, Air, Cutting Fluid
Max. Operating Pressure
150kgf/㎠
Max. Revolutions per Minute
120rpm
Operating Temperature Range
0~70℃
Weight
5.0 kg
5.5 kg
10.0 kg
13.0 kg
