Block Type Work Support

YOU CAN COUNT ON OUR EXPERTISE

Features

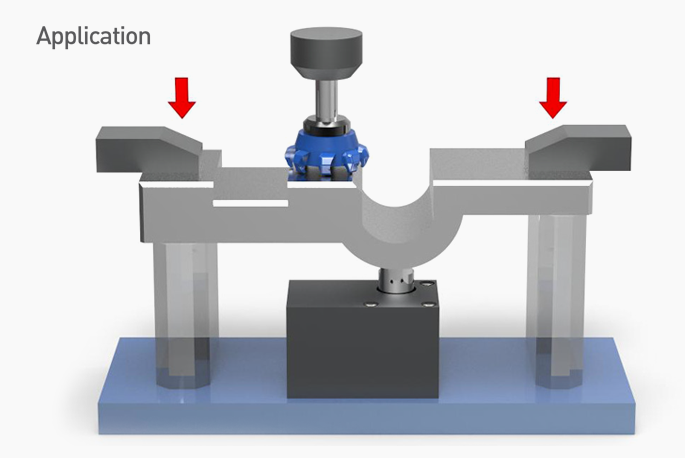

  • It is used for preventing vibration or slack of workpiece by cutting force. It is able to keep an accuracy of workpiece machining surface and reduces tool vibration. Thus, tool life could be extended.
  • Operating Pressure : 5~100kgf/㎠
  • Piston Speed : 8~100mm/s
  • Operating Temperature : 0~60℃
  • CWD-4010 and CWD-4011 are symmetry design.
Specifications
MODEL NO. Effective Area (㎠) Oil Capacity (㎤) Operating Pressure (kgf/㎠) Weight (kg) Spring Force (kgf) Stroke (mm) Download
Push Pull Push Pull 2D 3D PDF

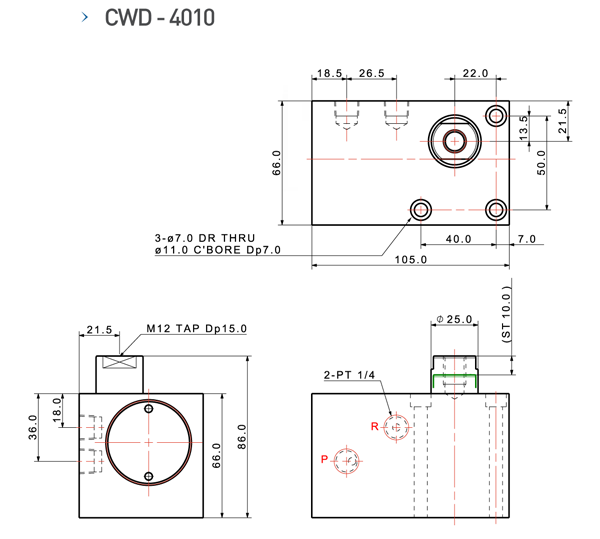

CWD-4010 12.56 9.42 18.84 14.13 5~100 3.2 1.7 10
CWD-4011
