Rod Shape_Horizontal Block Clamp

YOU CAN COUNT ON OUR EXPERTISE

Model No.
  • 1
    Clamp Type
    BDH = Block Clamp, Double(Push/Pull)-acting, Horizontal type
    BPH = Block Clamp, Single(Push)-acting , Horizontal type
  • 2
    Piston Diameter
    ex ) 28 = Ø28
  • 3
    Pistion Rod Stroke
    ex ) 15 = 15mm
*도면 다운로드 후 "스트로크"를 확인하십시오.*

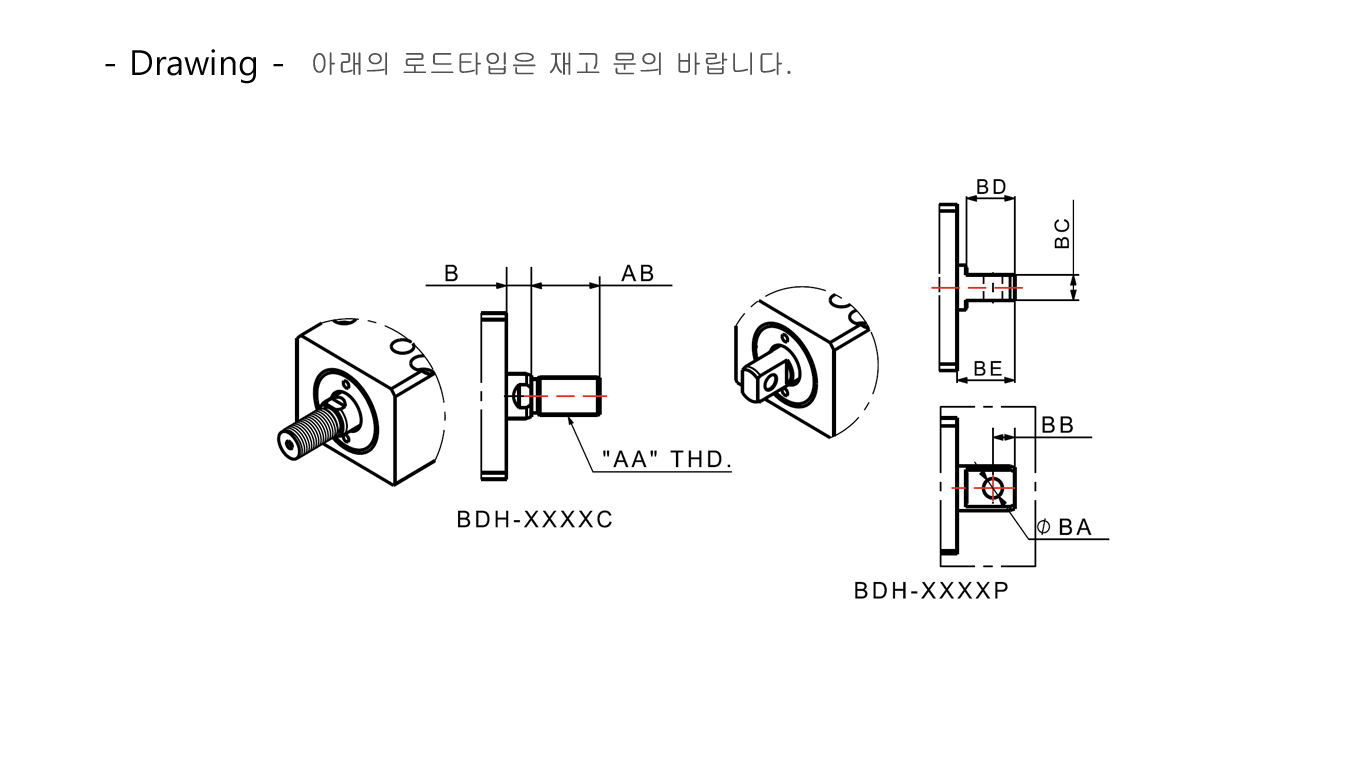

NO. DIMENSIONS(mm) Download 주문
AA AB BA BB BC BD BE Pistondia. 2D 3D PDF
BDH-20xx□ M10 x 1.25P 20 ø6 7 8 15.5 18.5 ø20
BDH-25xx□ M12 x 1.25P 22 ø6 7 8 15.5 18.5 ø25
BDH-28xx□ M14 x 1.5P 25 ø8 8 12 20.5 23.5 ø28
BDH-32xx□ M16 x 1.5P 25 ø8 9 14 21.5 24.5 ø32
BDH-40xx□ M20 x 1.5P 30 ø10 11 16 25.5 28.5 ø40
BDH-50xx□ M24 x 1.5P 35 ø12 13 20 29.5 32.5 ø50
BDH-63xx□ M30 x 1.5P 45 ø16 17 25 35.5 38.5 ø63
BDH-80xx□ M39 x 1.5P 60 ø18 20 32 42.5 45.5 ø80
