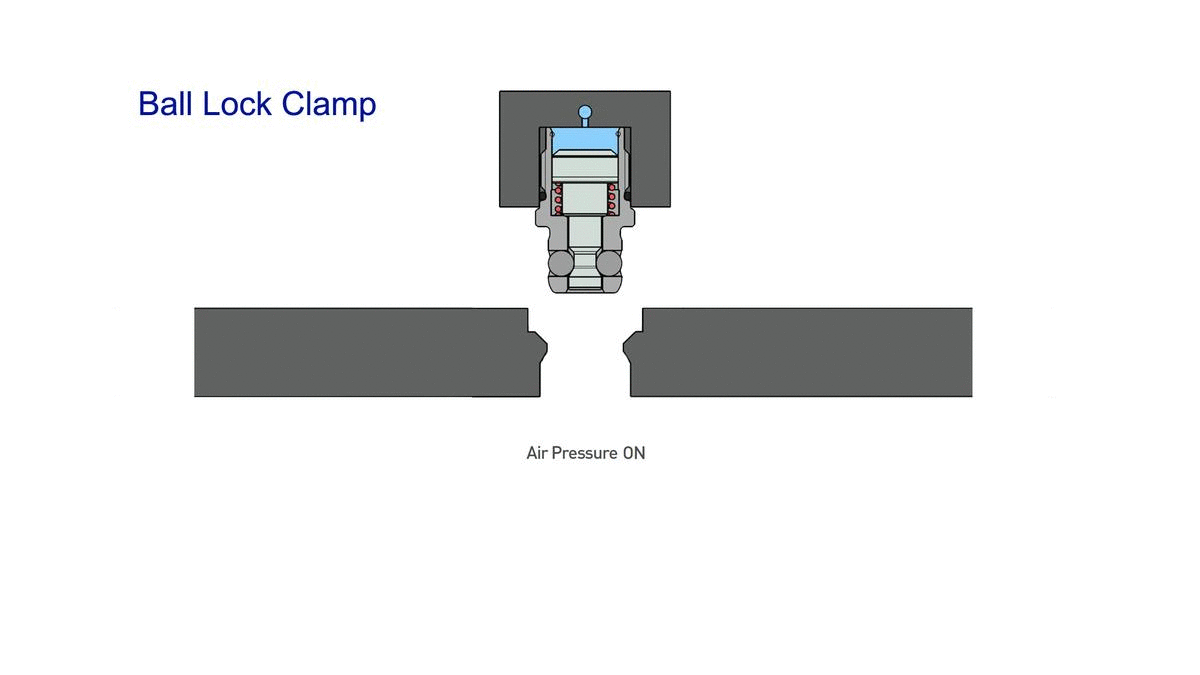

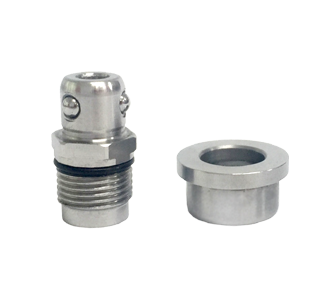

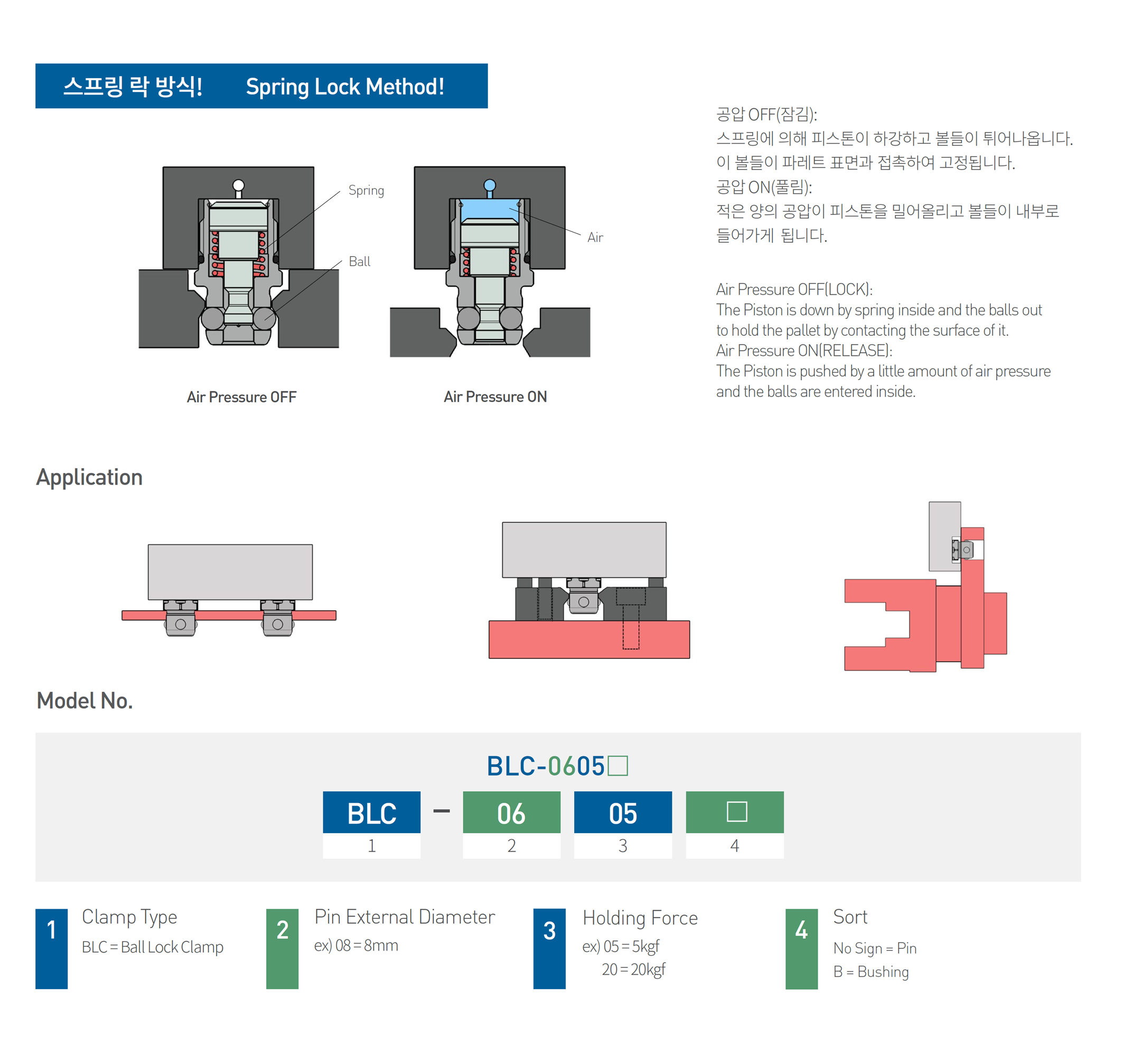

| Model No. | Holding Force(kgf) | Fluid | Release Air Capacity(㎤) |
Weight(kg) | Operating Pressure Range (kgf/㎠) |
Operating Temperature Range(℃) |
|
|---|---|---|---|---|---|---|---|
| Pin | Bushing | ||||||
| BLC-0605 | 5 | Air | 0.08 | 0.007 | 0.004 | 2.5~7.1 | 0~70 |
| BLC-0807 | 7 | 0.08 | 0.008 | 0.005 | |||
| BLC-1010 | 10 | 0.15 | 0.013 | 0.008 | |||
| BLC-1215 | 15 | 0.26 | 0.020 | 0.009 | |||
| BLC-1620 | 20 | 0.49 | 0.045 | 0.019 | |||

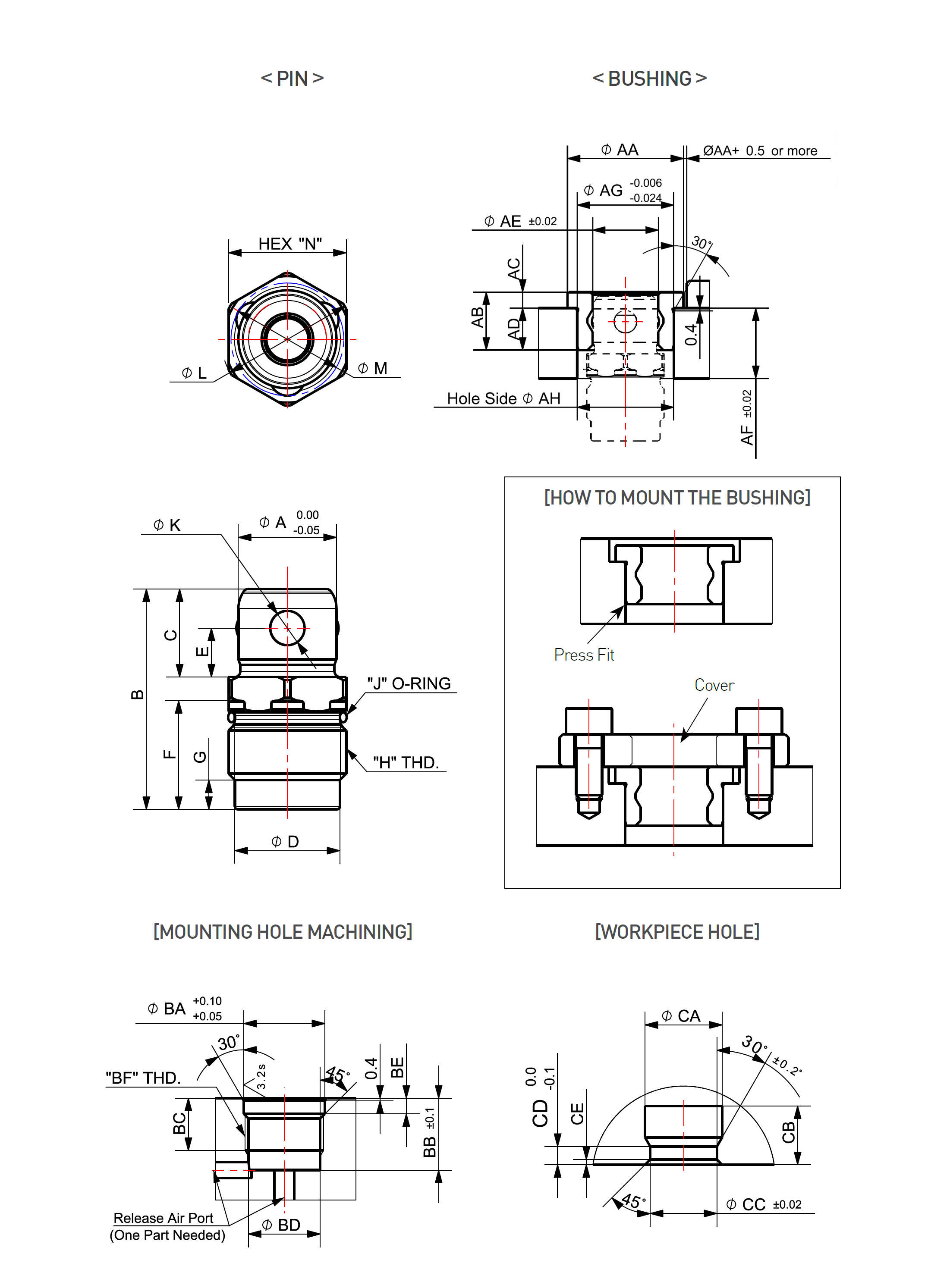

| MODEL NO | 주문 | Download | Dimensions(mm) | |||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2D | 3D | øA | B | C | øD | E | F | G | H | J | øK | øL | øM | N | øAA | AB | AC | AD | øAE | AF | øAG | øAH | øBA | BB | BC | øBD | BE | BF | øCA | CB | øCC | CD | CE | |||
| BLC-0605 |  |
 |
 |
 |
6.5 | 19.5 | 7.0 | 9.0 | 4.0 | 10.6 | 3.0 | M10x0.75P | SS8.5(NOK) | 2.5 | 11.0 | 7.7 | 10.0 | 14.0 | 7.5 | 2.0 | 5.5 | 6.7 | 8.0 | 12.0 | 12.0 | 10.4 | 10.5 | 7.5 | 9.3 | 2.4 | M10x0.75P | 7.9 | 8.0 | 6.7 | 2.8 | 0.8 |
| BLC-0807 | |
|
|
|
8.0 | 20.5 | 8.0 | 9.0 | 4.5 | 10.6 | 3.0 | M10x0.75P | SS8.5(NOK) | 3.0 | 11.0 | 9.3 | 10.0 | 14.0 | 7.5 | 2.0 | 5.5 | 8.2 | 8.0 | 12.0 | 12.0 | 10.4 | 10.5 | 7.5 | 9.3 | 2.4 | M10x0.75P | 9.5 | 9.0 | 8.2 | 3.2 | 0.8 |
| BLC-1010 | |
|
|
|
10.0 | 22.5 | 9.0 | 10.7 | 5.0 | 11.1 | 3.0 | M12x1.0P | SS10.5(NOK) | 3.5 | 13.5 | 11.5 | 12.0 | 18.0 | 9.0 | 2.5 | 6.5 | 10.2 | 9.5 | 15.0 | 15.0 | 12.4 | 11.0 | 8.0 | 11.0 | 2.4 | M12x1.0P | 11.8 | 10.0 | 10.2 | 3.4 | 0.8 |
| BLC-1215 | |
|
|
|
12.0 | 25.0 | 10.0 | 12.7 | 5.5 | 12.1 | 3.0 | M14x1.0P | SS12(NOK) | 4.0 | 15.5 | 13.8 | 14.0 | 20.0 | 10.0 | 2.5 | 7.5 | 12.2 | 11.0 | 17.0 | 17.0 | 14.4 | 12.0 | 9.0 | 13.0 | 2.8 | M14x1.0P | 14.2 | 11.0 | 12.2 | 3.6 | 0.8 |
| BLC-1620 | |
|
|
|
16.0 | 29.5 | 11.5 | 16.1 | 6.5 | 14.1 | 3.4 | M18x1.5P | AS568-016 | 5.0 | 21.2 | 18.2 | 19.0 | 26.0 | 11.5 | 3.0 | 8.5 | 16.2 | 13.0 | 23.0 | 23.0 | 19.4 | 14.0 | 10.5 | 16.5 | 3.8 | M18x1.5P | 18.6 | 12.5 | 16.2 | 4.0 | 1.0 |
