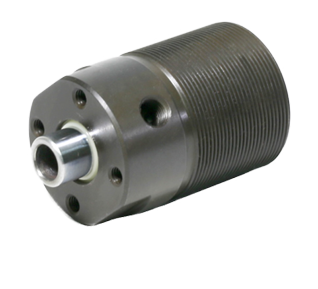

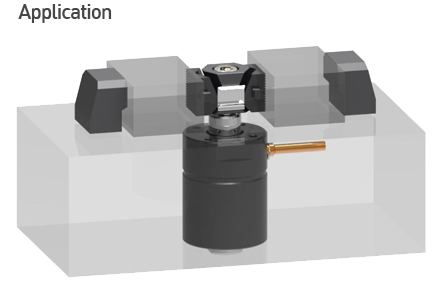

| MODEL NO. | Max Force (Ton) | Oil Capacity (㎤) | Effective Area (㎠) | Stroke (mm) | Piston Diameter (Ø) | Weight (kg) |
|---|---|---|---|---|---|---|
| HLP-2808 | 1.0 | 3.31 | 4.14 | 8 | Ø28 | 0.85 |
| HLP-4012 | 1.9 | 9.18 | 7.65 | 12 | Ø40 | 1.91 |
| HLP-6320 | 5.3 | 43.08 | 21.54 | 20 | Ø63 | 4.28 |
Model No. |

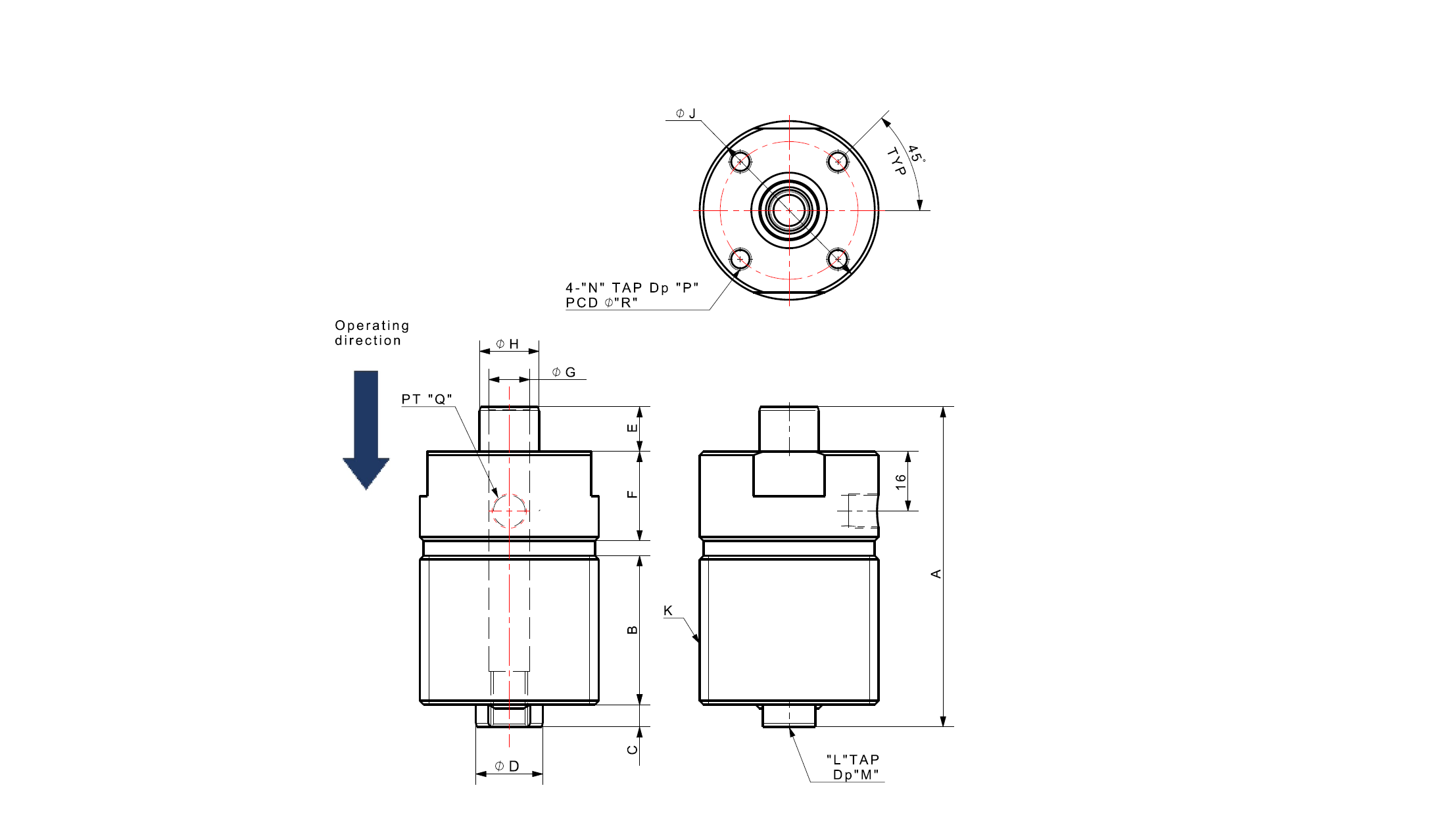

DIMENSIONS(mm) |
DOWNLOAD |
주문 | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
A |
B |
C |
øD |
E |
F |
øG |
øH |
øJ |
K |
L |
M |
N |
P |
Q |
R |
2D |
3D |
|||
HLP-2808 |
86 |
40 |
6 |
18 |
12 |
25 |
11 |
16 |
48 |
M48x1.5P |
M10x1.5P |
15 |
M6x1.0P |
10 |
1/8 |
37 |
 |
 |
 |
 |
HLP-4012 |
109 |
53 |
9 |
28 |
15 |
29 |
17 |
25 |
65 |
M65x1.5P |
M12x1.75P |
20 |
M8x1.25P |
16 |
1/4 |
50 |
|
|
|
|
HLP-6320 |
140 |
70 |
10 |
40 |
23 |
34 |
21 |
35 |
88 |
M88x2.0P |
M20x2.5P |
32 |
M12x1.75P |
18 |
3/8 |
70 |
|
|
|
|
