Pneumatic Type MULTI-LINK CLAMPS

YOU CAN COUNT ON OUR EXPERTISE

Operation
Features
  • 내경범위 : ø25~50
  • 작동범위 : 3~9.99kgf/㎠
  • 사용온도 : 0~60℃
  • 레버는 옵션

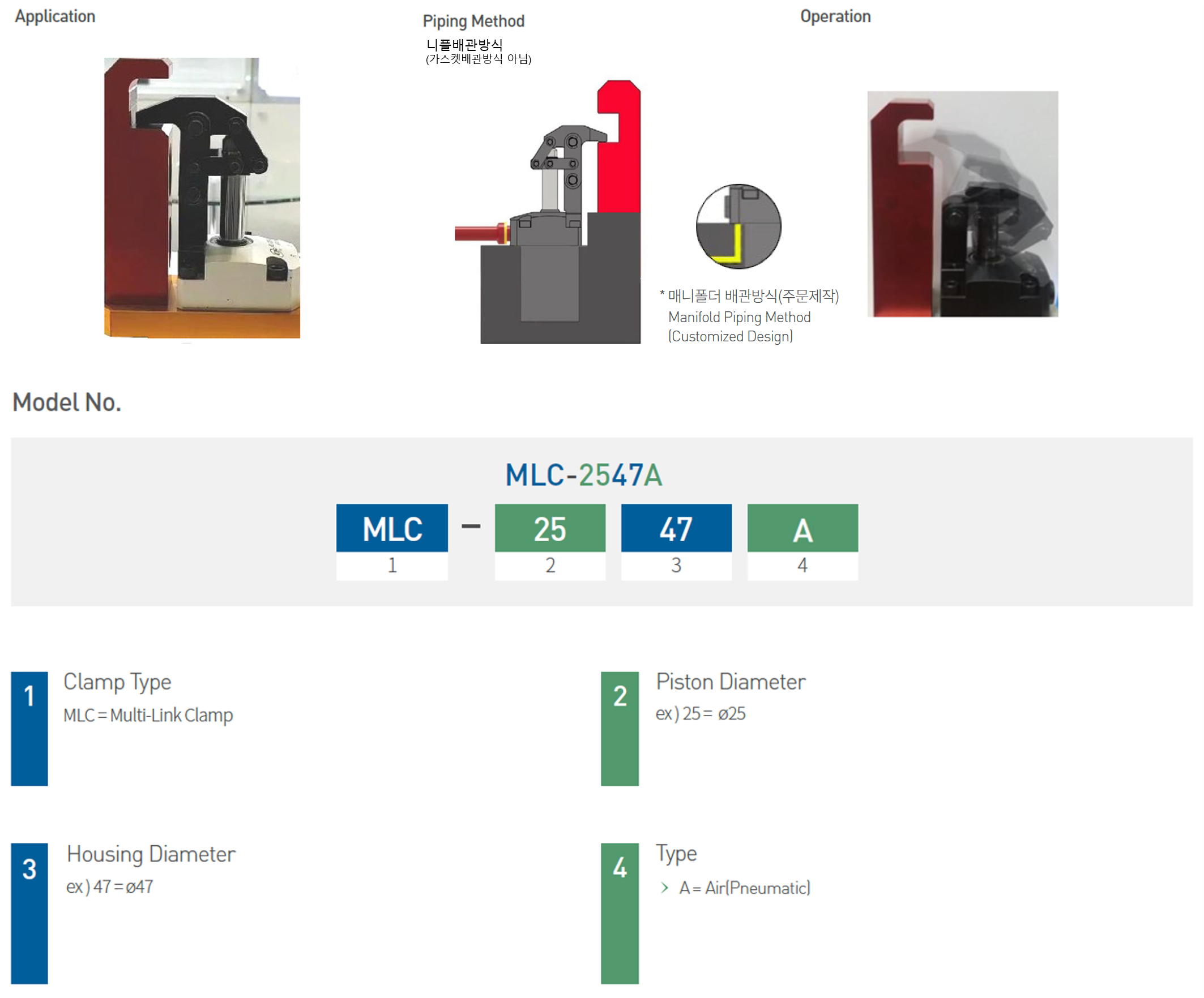

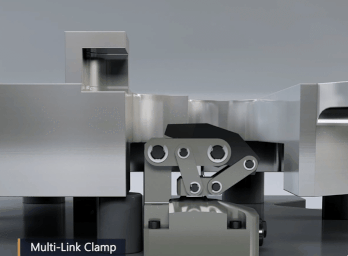

MULTI-LINK CLAMP
  • MLC-2547AG
  • MLC-3255AG
  • MLC-4065AG
  • MLC-5080AG
Specifications

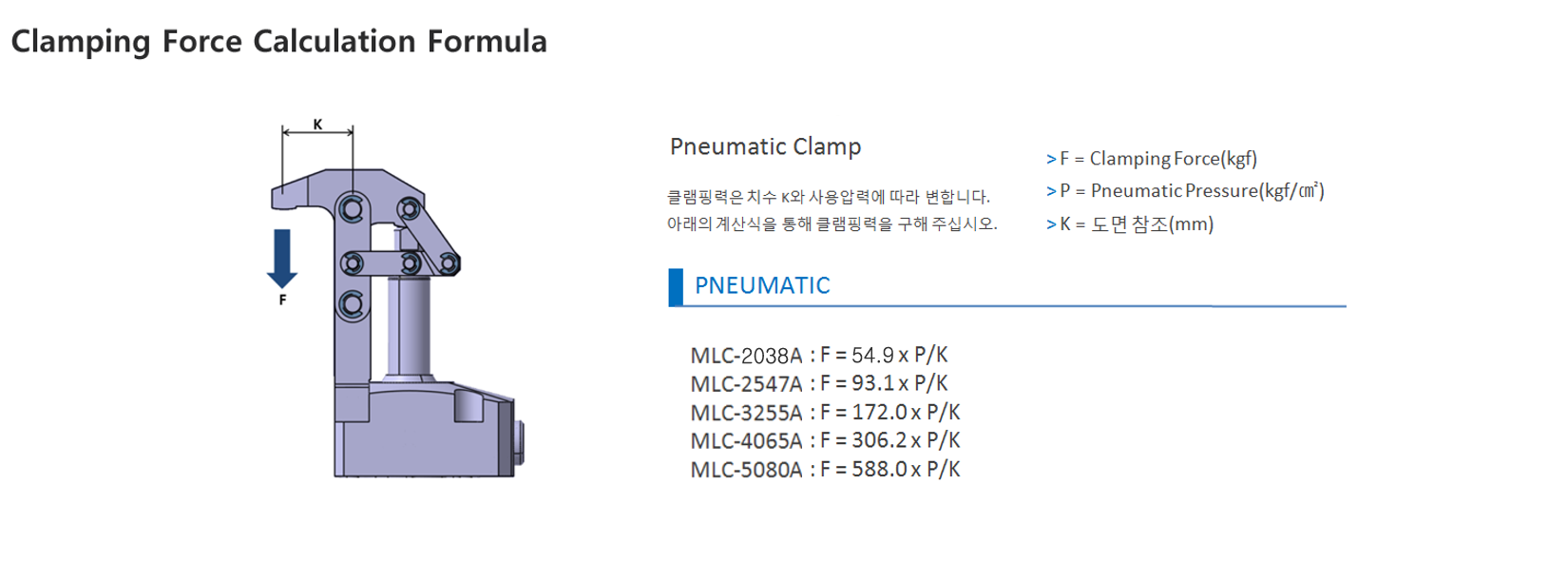

Model No. Clamping Force(kgf) Piston
Diameter(ø)
Effective
Area(㎠)
Stroke(mm) Operating
Pressure Range
(kgf/㎠)
Operating
Temperature
Range(℃)
Weight
(kg)
@5kgf/㎠ Total Extra
MLC-2547AG 16 25 4.9 31.5 2.5 3~9.99 0~60 1.51
MLC-3255AG 23 32 8.04 35.5 2.5 2.22
MLC-4065AG 39 40 12.56 41.0 3.0 3.68
MLC-5080AG 67 50 19.63 47.0 3.0 5.86

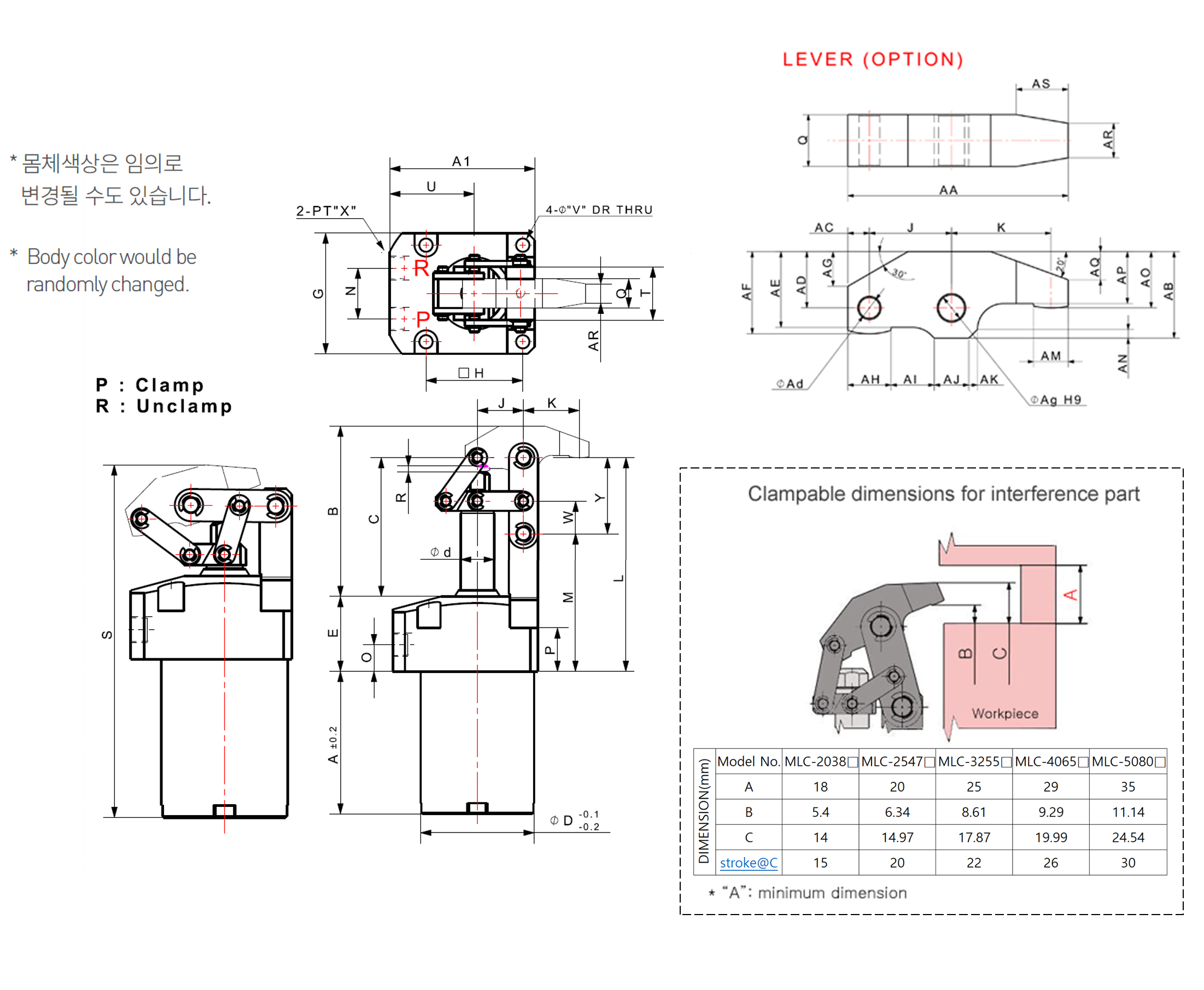

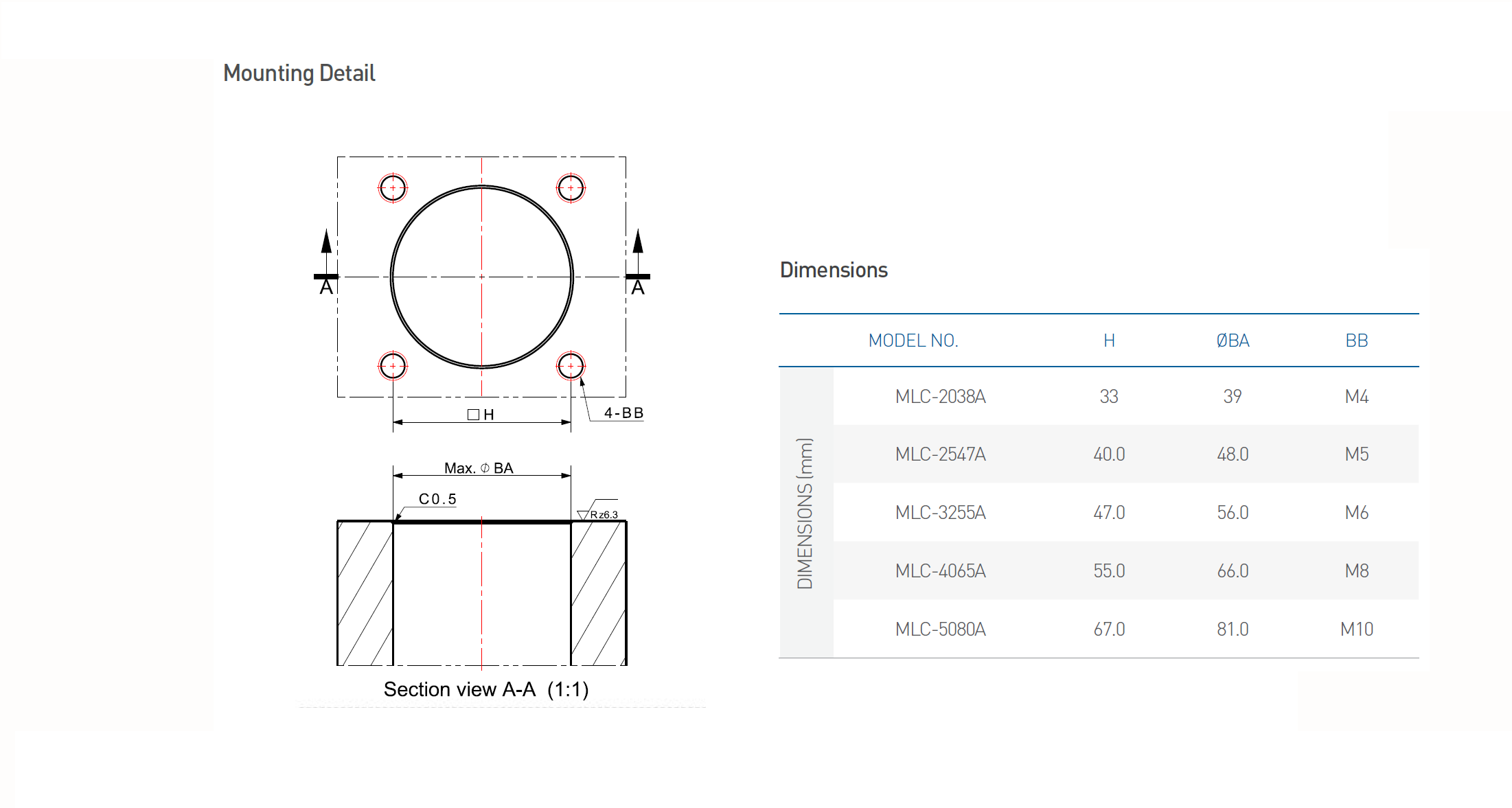

MODEL NO Download Dimensions(mm)
2D 3D PDF A A1 B C øD ød E F G H J K L M N O P Q R S T U V W X Y AA AB AC AD ØAd ØAg AE AF AG AH AI AJ AK AM AN AO AP AQ AR AS
MLC-2547AG 59.0 60.0 70.5 57.5 47.0 14.0 31.0 29.0 50.0 40.0 19.0 23.0 88.5 57.0 21.0 P4 18.0 12.0 2.5 131.4 22.0 35.0 5.5 13.5 G1/8 31.5 51.0 20.0 5.0 13.0 4.8 6.0 17.5 19.0 8.0 10.0 10.0 8.0 2.0 8.0 2.0 13.0 12.0 6.5 8.0 12.0
MLC-3255AG 70.0 67.0 79.5 64.5 55.0 14.0 31.0 32.0 59.0 47.0 21.5 28.0 95.5 60.5 21.0 P4 17.0 16.0 2.5 148.2 28.0 37.5 6.6 15.0 G1/8 35.0 59.0 23.0 5.5 15.0 5.8 8.0 19.5 21.0 10.0 11.0 11.0 8.0 5.0 8.0 3.0 15.0 14.0 8.0 12.0 16.0
MLC-4065AG 79.0 80.0 98.0 80.0 65.0 16.0 38.0 37.0 69.0 55.0 24.5 31.0 118.0 72.5 25.0 P6 21 19.0 3.0 171.4 36.0 45.5 9.0 17.5 G1/4 45.5 66.5 28.0 7.0 18.0 6.8 10.0 24.5 26.0 14.0 14.0 12.5 10.0 5.0 8.0 5.0 18.0 17.0 9.5 14.0 17.0
MLC-5080AG 86.0 93.0 111.0 89.0 80.0 20.0 44.0 44.0 84.0 67.0 30.0 37.0 133.0 83.0 28.0 P6 23.2 22.0 3.0 193.5 42.0 51.0 11.0 19.0 G1/4 50 78.0 34.0 7.0 22.0 6.8 12.0 29.0 32.0 16.0 14.0 16.0 12.0 7.0 8.0 5.0 22.0 21.0 10.6 16.0 20.0
