저압용 Built-In Type Work Support

YOU CAN COUNT ON OUR EXPERTISE

Features
  • 강력한 써포팅
  • 원활한 작동성
  • 1단 & 2단 작동방식
  • 사용압력 : 25~70kgf/㎠
  • 사용온도 : 0~70℃
  • 본체 권장체결토크 : 510 kgf·cm(50 N·m)
  • 과도한 힘으로 결합시 불량의 원인이 됨.
Supporting Force Graph
Circuit Diagram

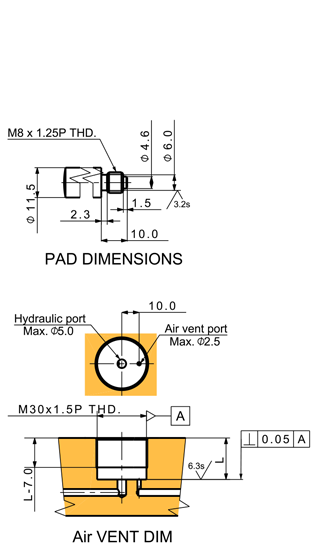

Specifications

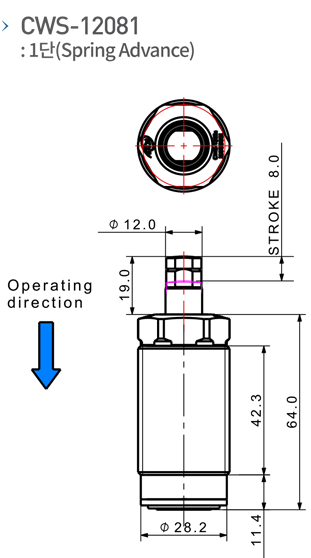

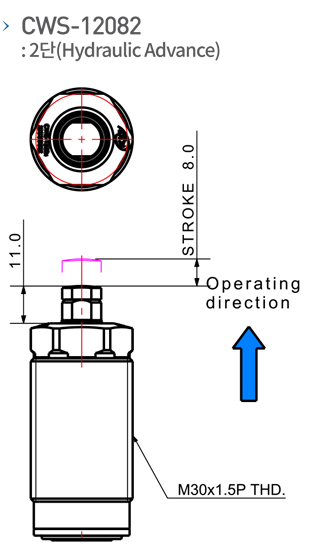

MODEL NO. CWS-12081 CWS-12082
Type Built-In Built-In
Operation Method Spring Advance Hydraulic Advance
Support Force(kgf) at 70kgf/㎠ 400 400
Plunger Stroke (mm) 8 8
Plunger Diameter (Ø) 12 12
Oil Capacity(㎠) 4.3 8.4
Plunger Spring Froce (kgf) 0.3~0.5 0.3~0.5
Operating Pressure 25 ~ 70 kgf/cm2
Operating Temperature 0 ~ 70℃
Weight (kg) 0.28 0.27
Download 2D 3D PDF 2D 3D PDF
