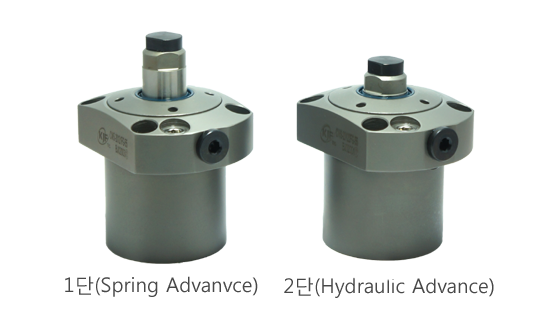

저압용 Flange Type Work Support

YOU CAN COUNT ON OUR EXPERTISE

Features
  • 강력한 써포팅
  • 원활한 작동성
  • 2단 작동방식
  • 사용압력 : 25~70kgf/㎠
  • 사용온도 : 0~70℃
Supporting Force Graph
Circuit Diagram
Specifications

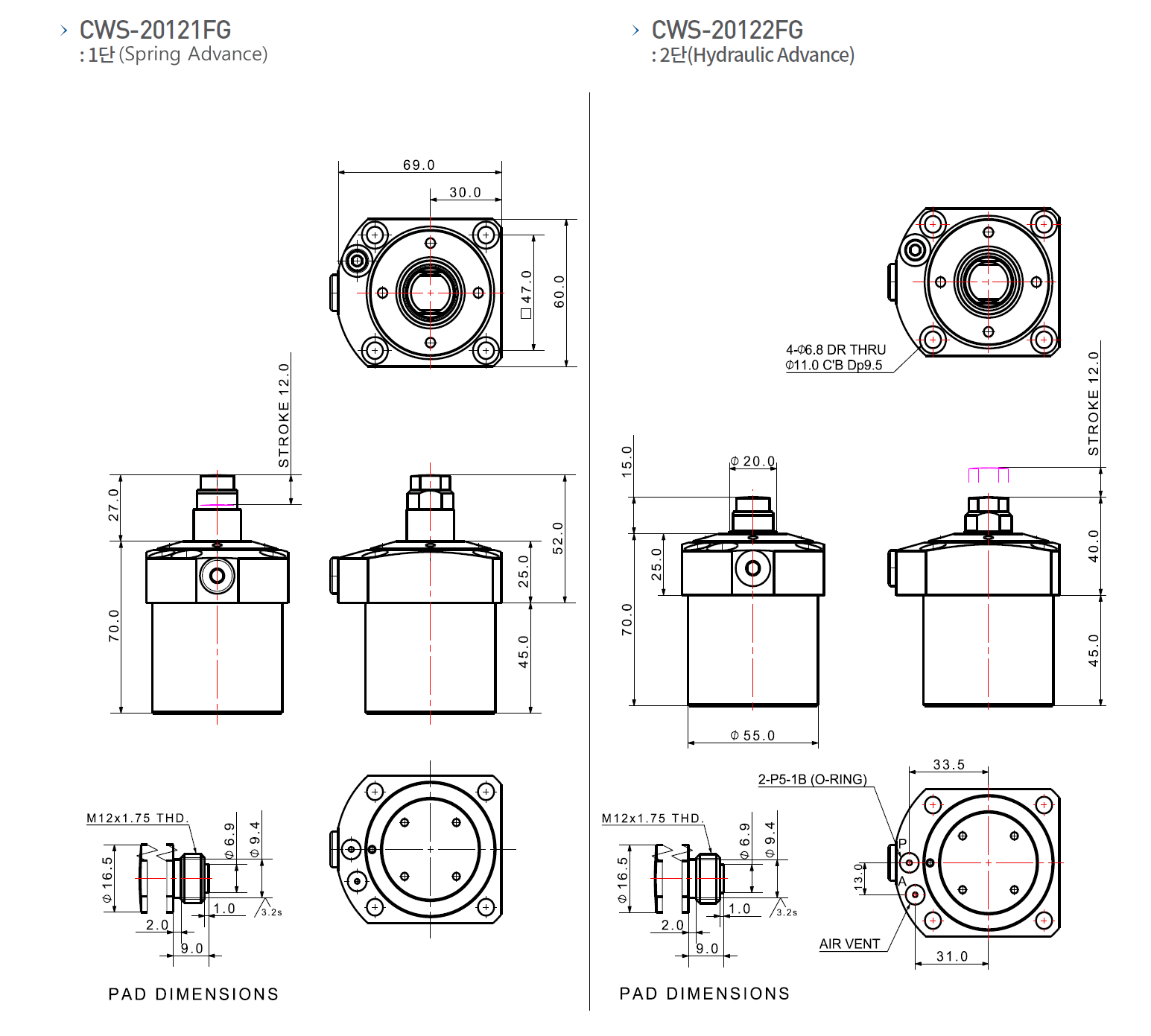

MODEL NO. CWS-20122FG
Type Flange
Operation Method Hydraulic Advance
Support Force(kgf) at 70kgf/㎠ 1580
Plunger Stroke (mm) 12
Plunger Diameter (Ø) 20
Oil Capacity(㎠) 28.5
Plunger Spring Froce (kgf) 0.96~1.75
Operating Pressure 25 ~ 70 kgf/cm2
Operating Temperature 0 ~ 70℃
Weight (kg) 1.3
Download 2D 3D PDF
