Tap Type Swivel Pads

YOU CAN COUNT ON OUR EXPERTISE

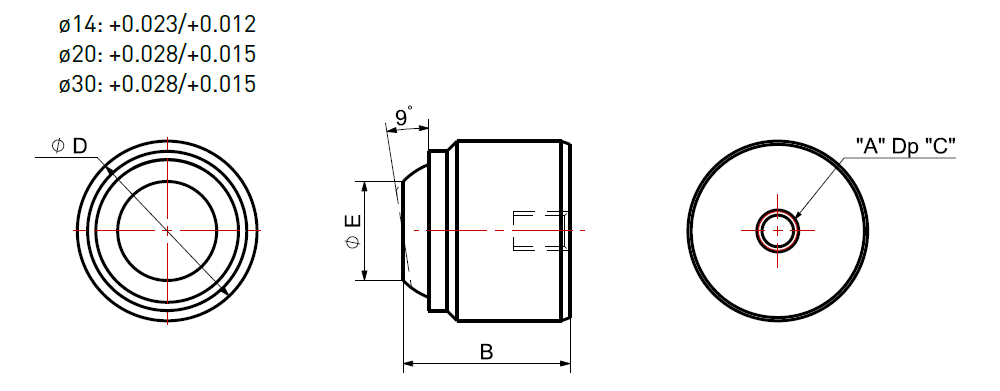

Tap Type-Flat Pad
MODEL NO. DIMENSIONS (mm) Download
A B C øD øE Max Load Capacity Type 2D 3D PDF
SPF-0313 M3 13 3 14 7.7 0.8ton Flat
SPF-0419 M4 19 5 20 10.3 0.8ton Flat
SPF-0527 M5 27 7 30 20.5 7.9ton Flat

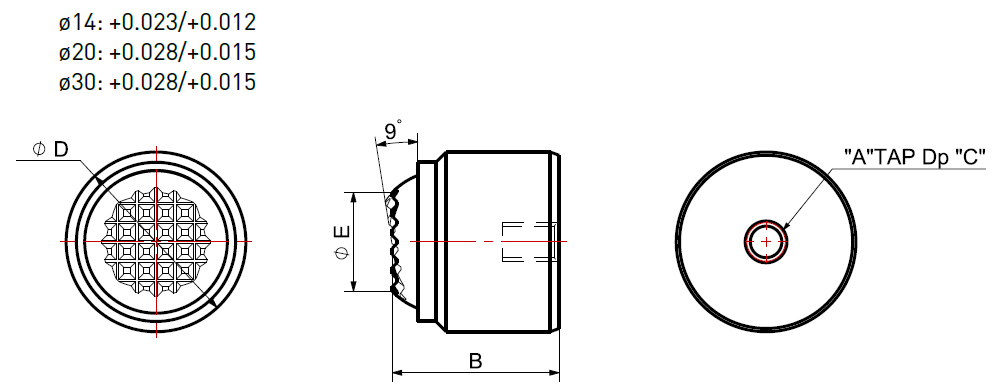

Tap Type-Diamond Pad
MODEL NO. DIMENSIONS (mm) Download
A B C øD øE Max Load Capacity Type 2D 3D PDF
SPD-0313 M3 13 3 14 7.7 0.8ton Diamond
SPD-0419 M4 19 5 20 10.3 0.8ton Diamond
SPD-0527 M5 27 7 30 20.5 7.9ton Diamond
