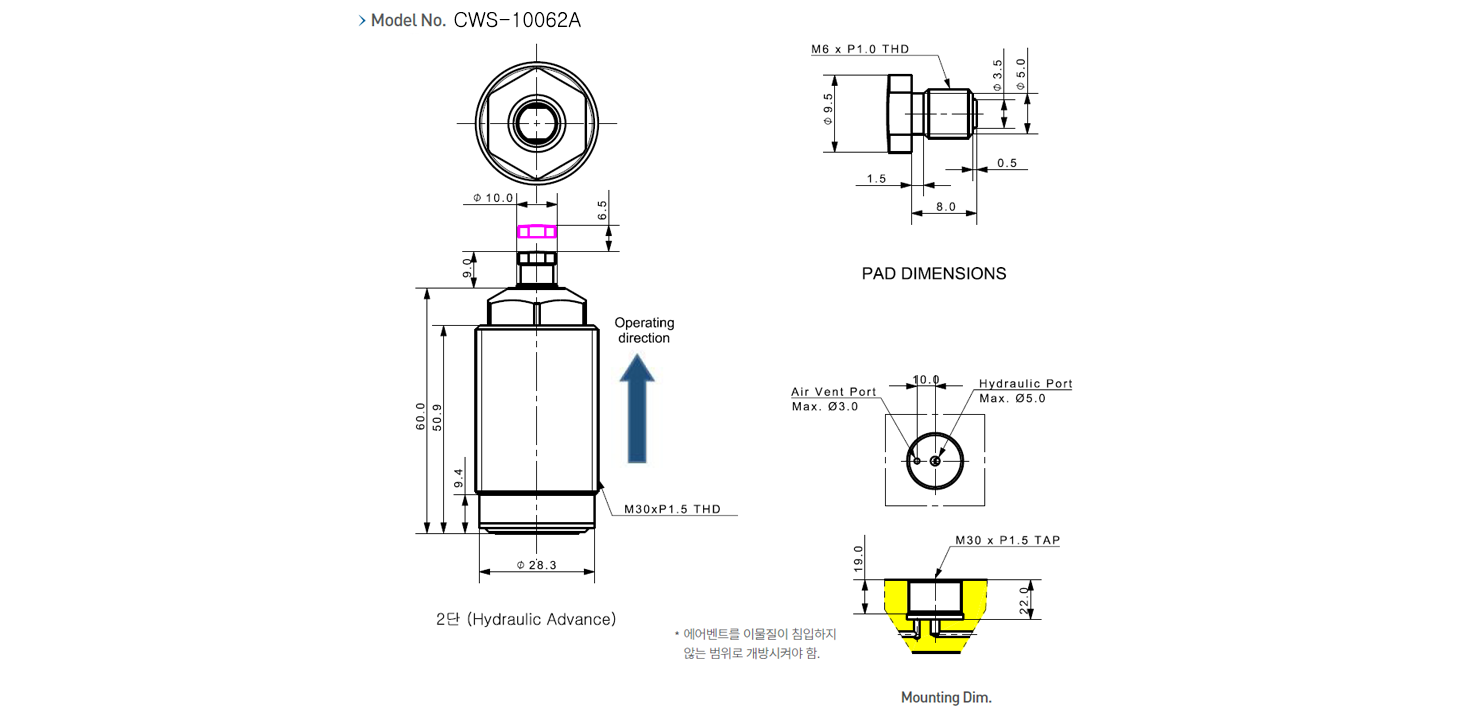

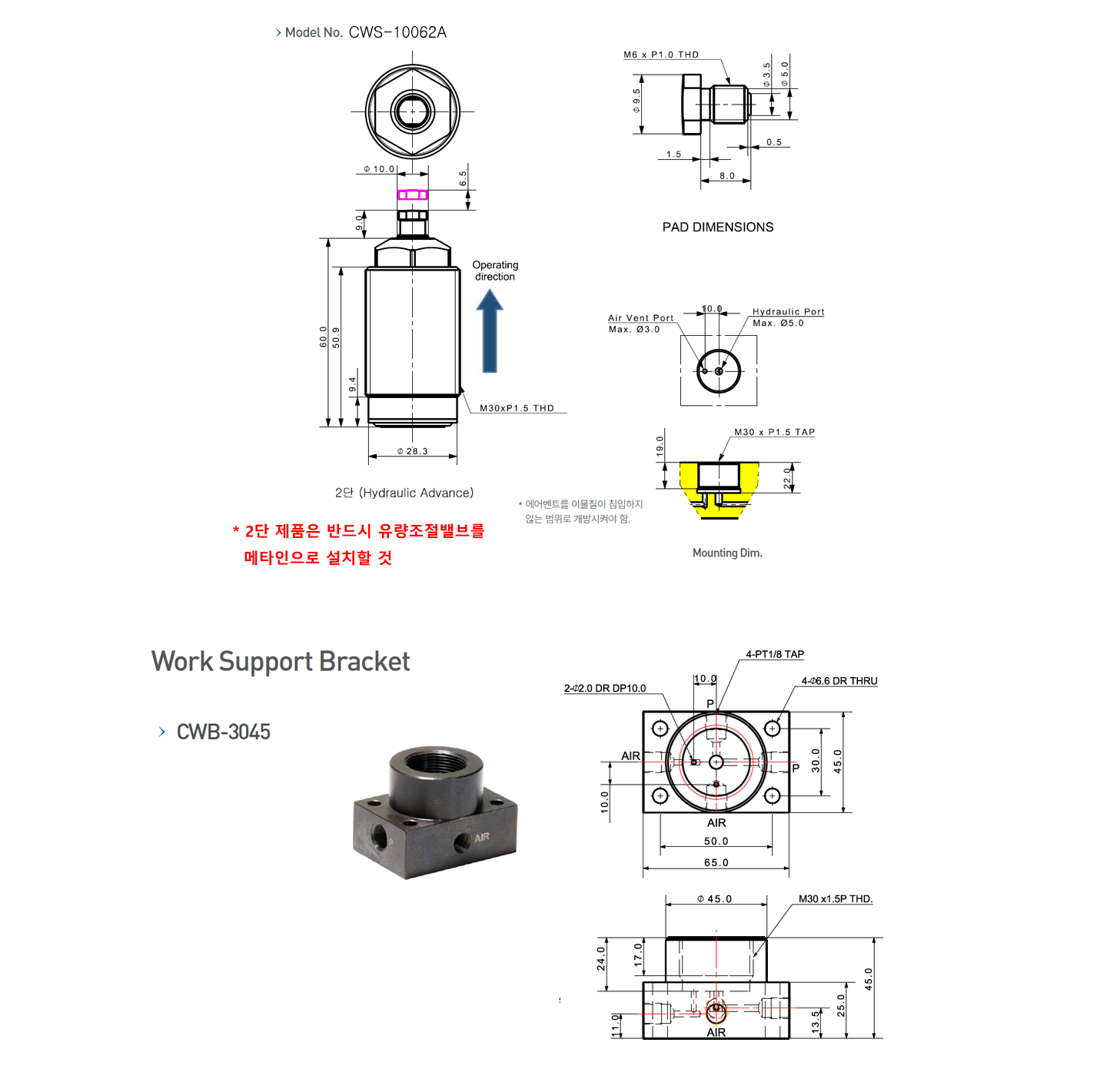

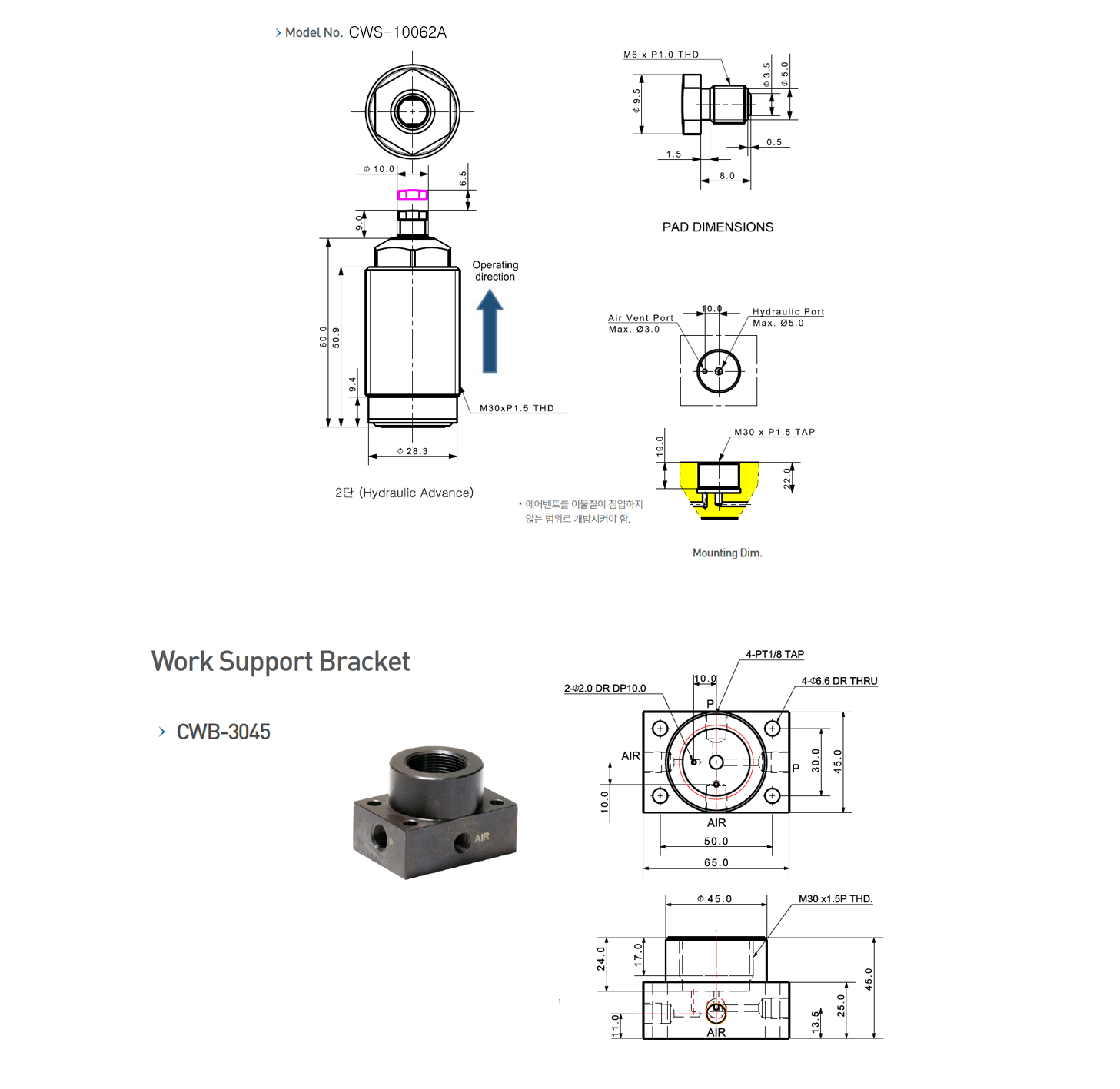

| MODEL NO. | CWS-10062A | CWB-3045(Bracket) | |||||
|---|---|---|---|---|---|---|---|
| Type | Built-In | - | |||||
| Operation Method | Pneumatic Advance | - | |||||
| Support Force(kgf) at 6kgf/㎠ | 103.0 | - | |||||
| Plunger Stroke (mm) | 6.5 | - | |||||
| Plunger Diameter (Ø) | 10.0 | - | |||||
| Plunger Spring Froce (kgf) | 0.22~0.29 | - | |||||
| Operating Pressure | 4.0~6.0kgf/㎠ | - | |||||
| Operating Temperature | 0 ~ 70℃ | - | |||||
| Weight (kg) | 0.28 | - | |||||
| Download Drawings | 2D | 3D | 2D | 3D | |||
 |
 |
 |
|
|
|
||
