PIN HOLE CLAMP

YOU CAN COUNT ON OUR EXPERTISE

Features
  • Clamping and positioning
  • Compact size
  • Single-acting
  • Housing Dia.: M22
  • Fluid: Air
  • Operating pressure : 3~9.99kgf/㎠
  • Operating temperature : 0~70℃
    Introduction
Specifications
Model No. Locking Force Holding Force Repeatability Weight Operating Pressure Operating Temperature
PHC-0010 10kgf 100kgf 0.1mm 40g 3~9.9kgf/㎠ 0~70℃

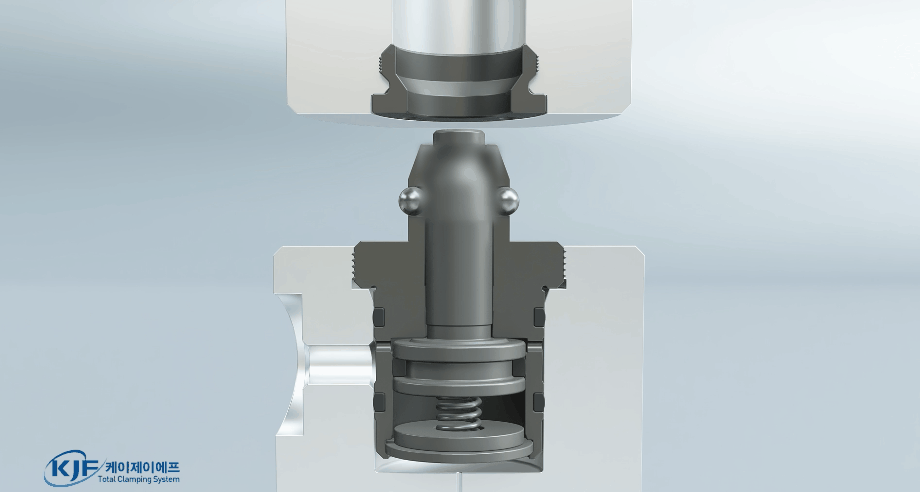

Operation

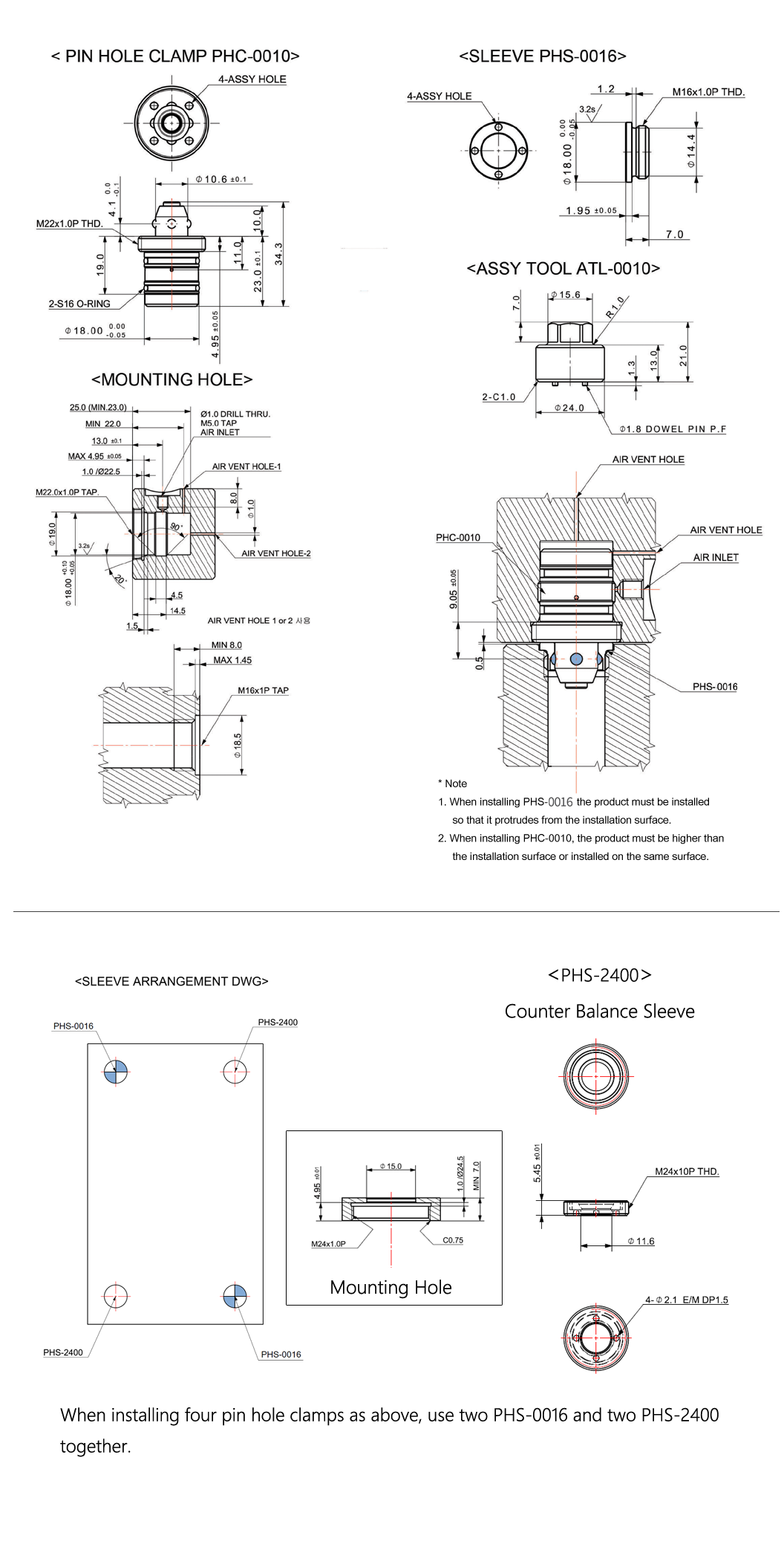

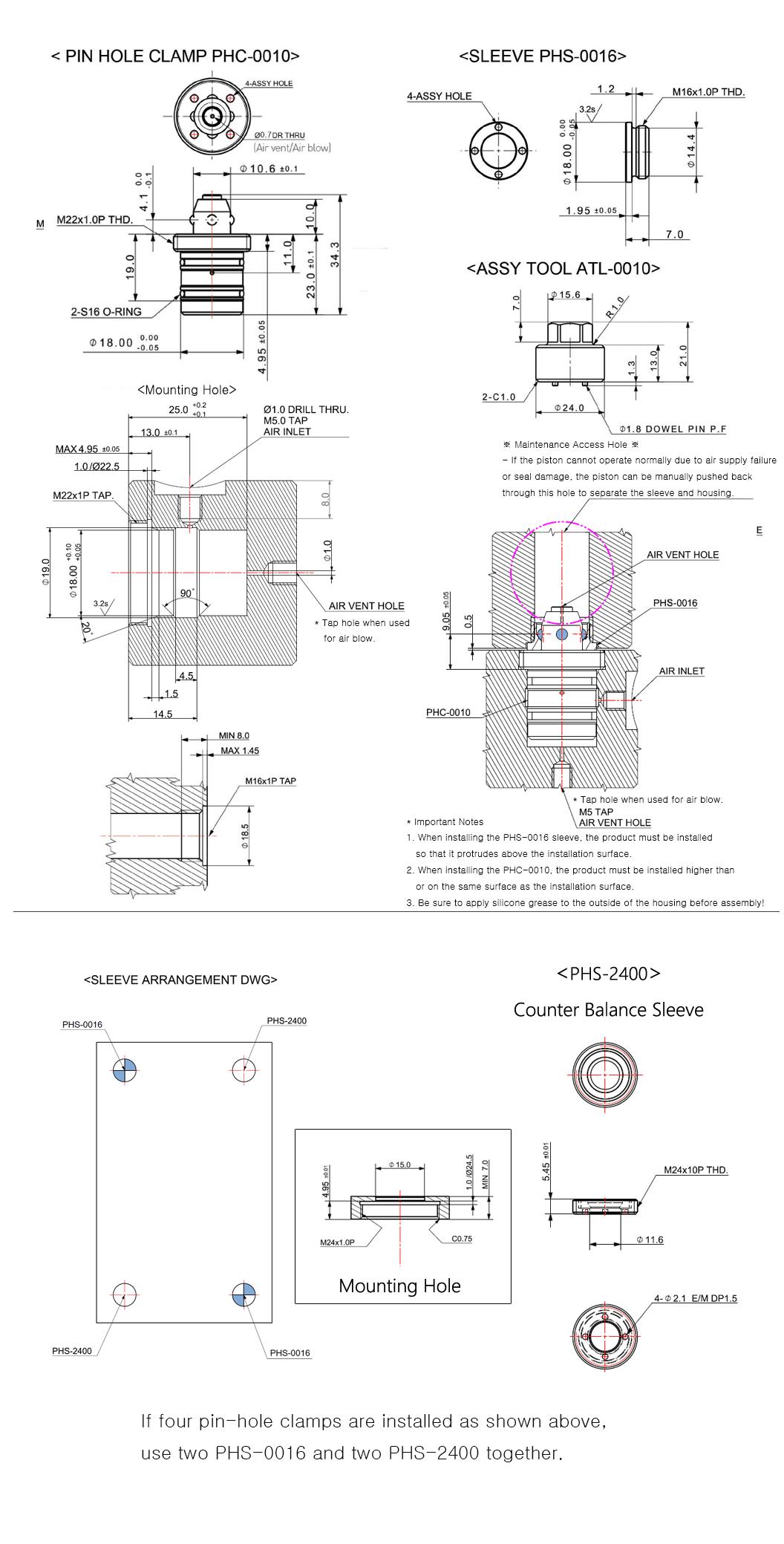

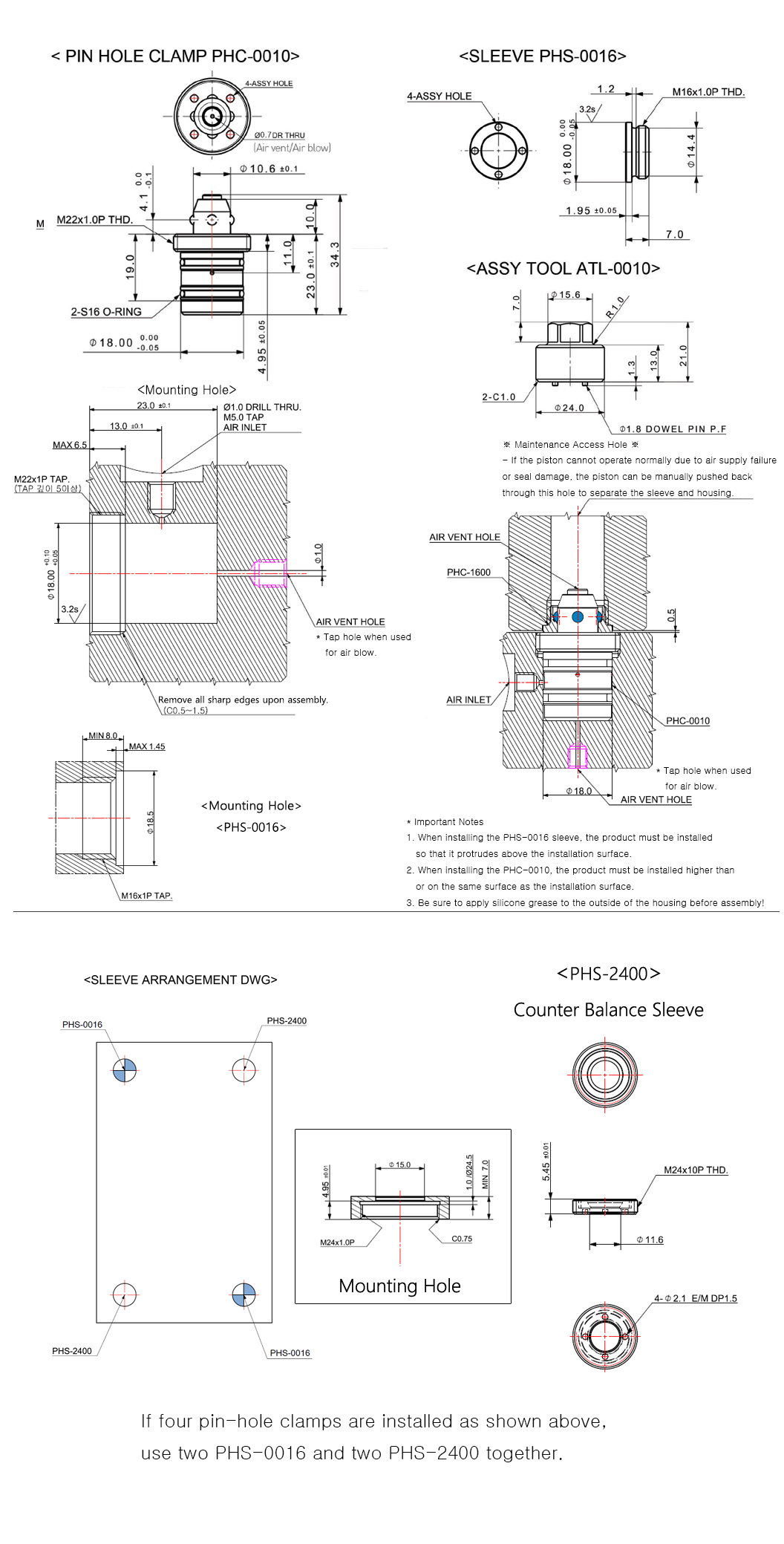

    • Drawing
    Drawing Download
    MODEL NO Download
    2D 3D PDF
    PHC-0010
    PHS-0016
    PHS-2400
    ATL-0010
