Parallel Swing CLAMP

YOU CAN COUNT ON OUR EXPERTISE

Features
  • When clamping/unclamping, the piston rod moves up and down as much as the set stroke in a straight line. When the piston rod rotates 90 degrees, it rotates at one spot without moving up and down (zero stroke). So, interference in the upper part can be avoided. (General swing clamp moves up and down when rotating)
  • Double-acting pneumatically
  • Piston Diameter : ø32~50
  • Operating Pressure Range : 3~9.99kgf/㎠
  • Operating Temperature Range : 0~60℃
  • Clamp arm is option
    Application
Model No.
  • 1
    Clamp Type
    SSD = Parallel Swing Clamp
    R = Swing Clockwise
    L = Swing Counter-Clockwise
  • 2
    Piston Diameter
    ex ) 32 = Ø32
  • 3
    Total Stroke
    ex ) 08 = 8mm
  • 4
    Type
    A = Pneumatic (Air)
Specifications
Model No. Cylinder Force(kgf) Piston
Diameter(ø)		 Effective
Area(㎠)		 Stroke(mm) Swing Angle Tolerance
(Repeated Accuracy)		 Operating
Pressure Range
(kgf/㎠)		 Operating
Temperature
Range(℃)		 Weight
(kg)
Max. @5kgf/㎠ Swing Straight Total
SSD□-3208A 68.4 40.2 32 6.9 0 8 8 ±3°
(±0.5°)		 3~9.9 0~60 1.1
SSD□-4010A 106.9 62.8 40 10.8 0 10 10 4.1
SSD□-5010A 169.2 98.1 50 17.1 0 10 10 4.5

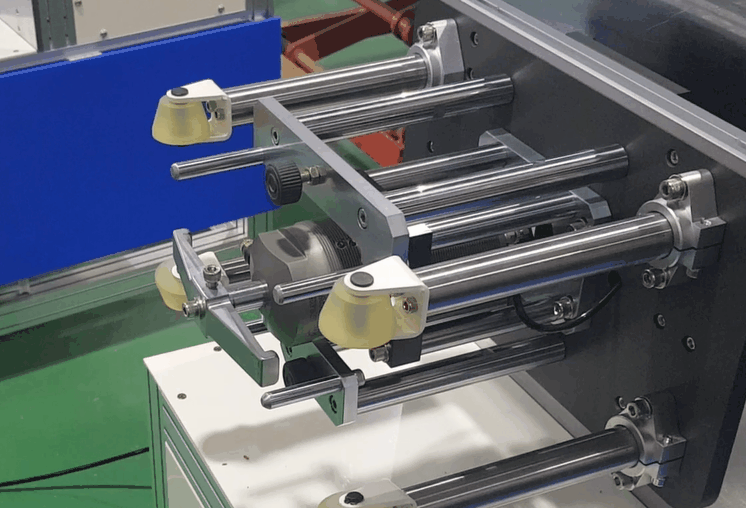

Operation

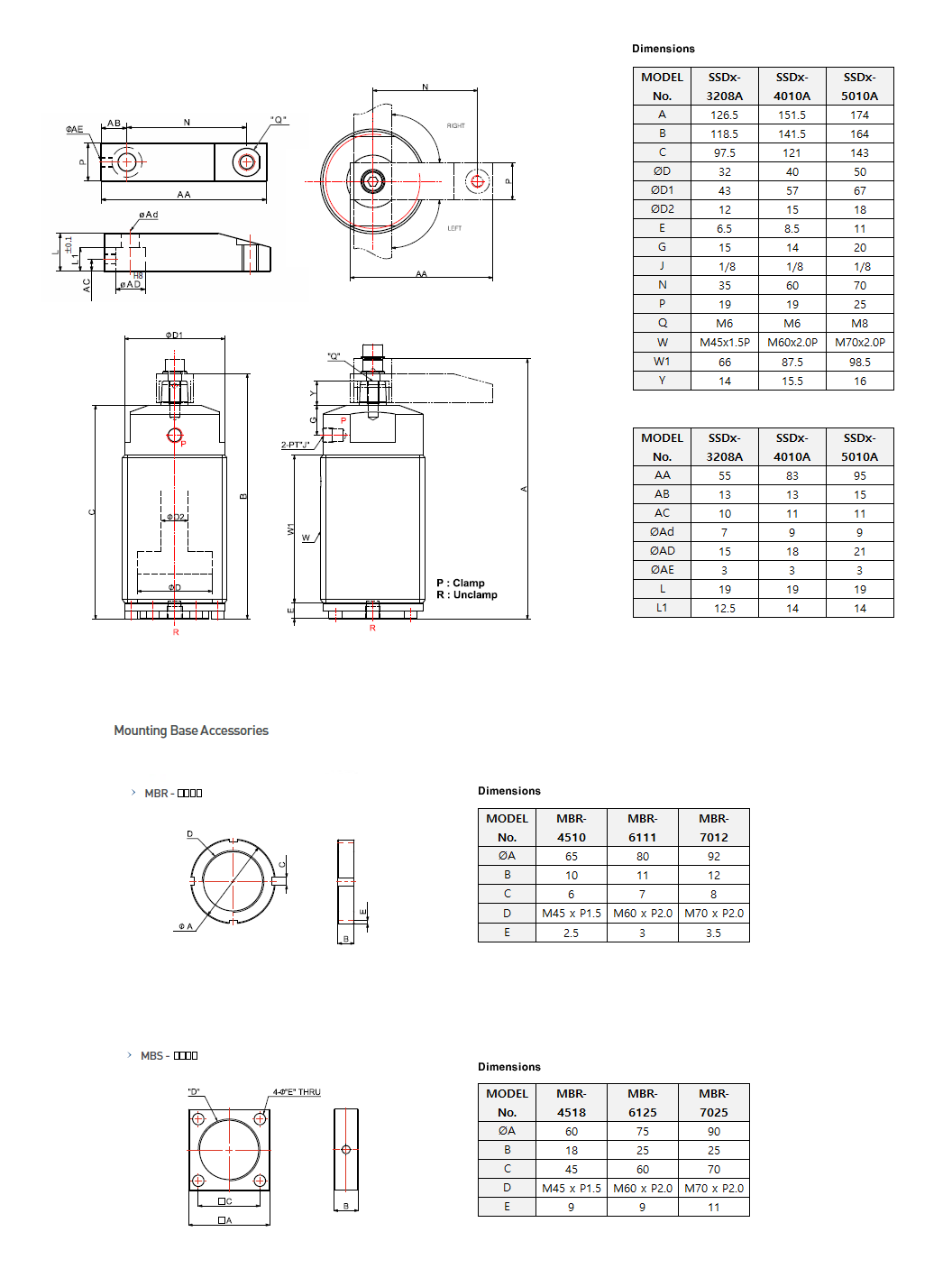

    • Drawing
    Drawing Download
    MODEL NO Download
    2D 3D PDF
    SSD□-3208A
    SSD□-4010A
    SSD□-5010A
