COMPACT TYPE
YOU CAN COUNT ON OUR EXPERTISE

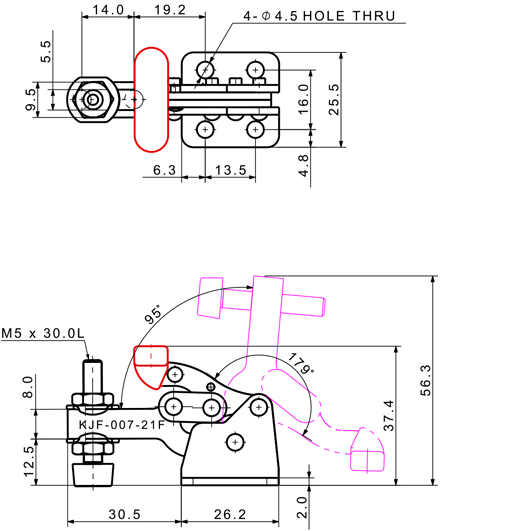

Model No. KJF-007-21F
* Obtained Certification of RoHS
| Holding Capacity(kgf) | Weight(g) | Handle Move | Arm Move | Spindle Supplied | Spindle Adjust.(mm) | Arm Type | Arm Length | Base Type | Base Height | 2D | 3D | 주문 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 70 | 57 | 179˚ | 95˚ | M5 x 30.0L | 14 | U | Short | Flange | Low |  |
 |
 |
 |

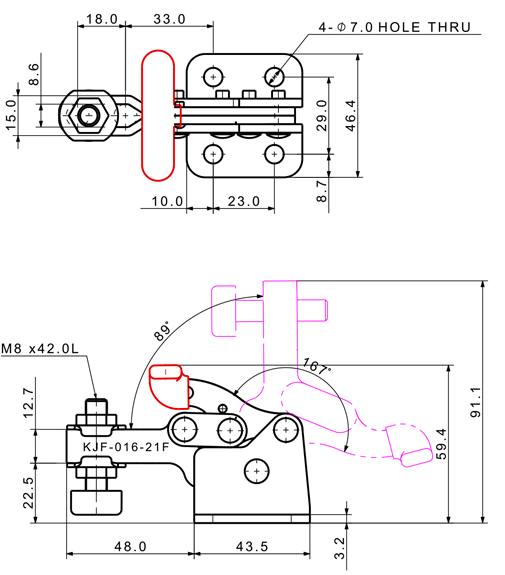

Model No. KJF-016-21F
| Holding Capacity(kgf) | Weight(g) | Handle Move | Arm Move | Spindle Supplied | Spindle Adjust.(mm) | Arm Type | Arm Length | Base Type | Base Height | 2D | 3D | 주문 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 160 | 253 | 167˚ | 89˚ | M8 x 42.0L | 18 | U | Short | Flange | Low | |
|
|
|
