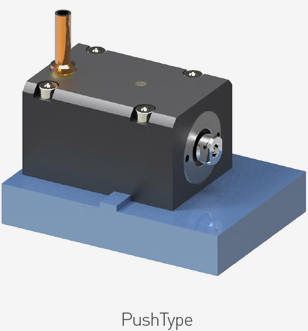

Push Horizontal Type Block Clamp

YOU CAN COUNT ON OUR EXPERTISE

Piping Method
Features
  • 단동
  • 스프링 복귀 방식
  • 설치용이
  • 유로를 가능한 크게 하시오
  • 내경범위 : ø28~63
  • 작동압력 : 15~250kgf/㎠
  • 피스톤속도 : 8~100mm/s
  • 사용온도 : 0~60℃
Model No.
  • 1
    Clamp Type
    BPH = Block Clamp, Single(Push)-acting, Horizontal type
  • 2
    Piston Diameter
    ex ) 28 = Ø28
  • 3
    Pistion Rod Stroke
    ex ) 15 = 15mm
BLOCK CLAMP PUSH HORIZONTAL TYPE
  • BPH-2815
  • BPH-3215
  • BPH-4015
  • BPH-5015
  • BPH-6315
Specifications
MODEL NO. Max.Clamping Force (Ton) Effective Area (㎠) Oil Capacity (㎤) Weight(kg) Operating Pressure Range Operating Temperature Range
Push Push Push
BPH-2815 1.52 6.1 9.3 1.4 15~250 kgf/㎠ 0~60℃
BPH-2825 15.4 1.9
BPH-3215 2.00 8.0 12.0 1.9
BPH-3225 20.1 2.4
BPH-4015 3.12 12.5 18.9 2.5
BPH-4025 31.4 3.0
BPH-5015 4.95 19.8 29.5 3.6
BPH-5025 49.1 5.0
BPH-6315 7.77 31.1 46.8 5.7
BPH-6325 78.0 7.0

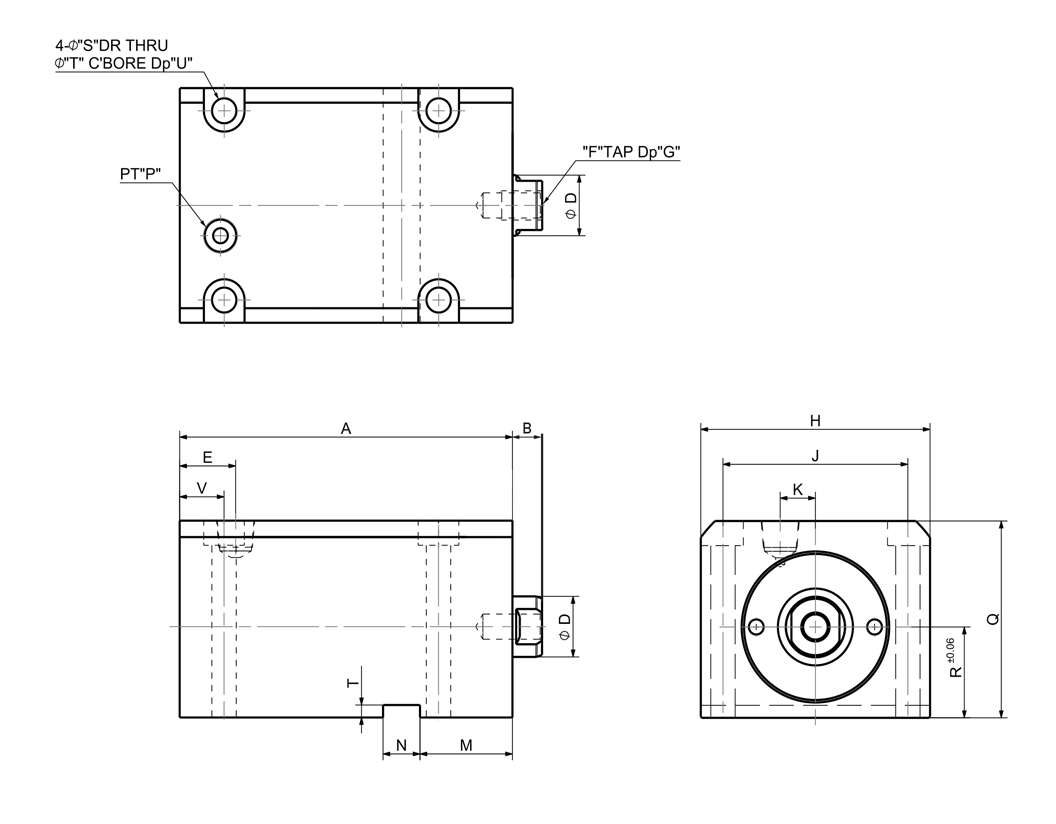

MODEL NO. DIMENSIONS (mm) 주문
A B øD E F G H J K M N O P Q R øS øT U V V1 Piston dia. 2D 3D PDF
BPH-2815 72 8 16 11 M8 xP1.25 12 62 50 8 25 10 3.3 1/8 52 24 ø6.6 ø11 6.5 12 20 ø28
BPH-2825 90 8 16 11 M8 xP1.25 12 62 50 8 25 10 3.3 1/8 52 24 ø6.6 ø11 6.5 12 20 ø28
BPH-3215 72 10 18 12.5 M10x P1.5 15 70 56 10 28 12 3.3 1/4 56 25 ø9 ø14 8.6 10 20 ø32
BPH-3225 90 10 18 12.5 M10x P1.5 15 70 56 10 28 12 3.3 1/4 56 25 ø9 ø14 8.6 10 20 ø32
BPH-4015 73 10 22.4 12 M12 x P1.75 20 80 62 10 28 12 3.3 1/4 64 29 ø11 ø17.5 11 12 20 ø40
BPH-4025 93 10 22.4 12 M12 x P1.75 20 80 62 10 28 12 3.3 1/4 64 29 ø11 ø17.5 11 12 20 ø40
BPH-5015 78 10 28 13 M16x P2.0 25 94 74 10 29 14 3.8 1/4 74 34 ø14 ø20 13 13 20 ø50
BPH-5025 98 10 28 13 M16x P2.0 25 94 74 10 29 14 3.8 1/4 74 34 ø14 ø20 13 13 20 ø50
BPH-6315 86 13 35.5 15 M20x P2.5 33 114 90 10 31 16 4.3 1/4 89 42 ø16 ø23 16 15 20 ø63
BPH-6325 106 13 35.5 15 M20x P2.5 33 114 90 10 31 16 4.3 1/4 89 42 ø16 ø23 16 15 20 ø63
