Hydraulic Intensifier

YOU CAN COUNT ON OUR EXPERTISE

Features
  • 메인압 상승없이 픽스쳐에 공급압을 높임
  • 픽스쳐 안의 전체 혹은 일부분만 압력을 높일 수 있음
Intensifier circuit diagram by Sequence valve.
Intensifier circuit diagram by Sol valve.
Specifications
MODEL NO. Intensification Ratio Input Pressure(kgf/㎠) High PressureVolume (㎤) Max. Output Pressure (kgf/㎠)
HHB-0202 2.5 : 1 0~160 20 400
HHB-0402 4 :1 10~100 20 400
HHB-0602 6 :1 10~60 20 400

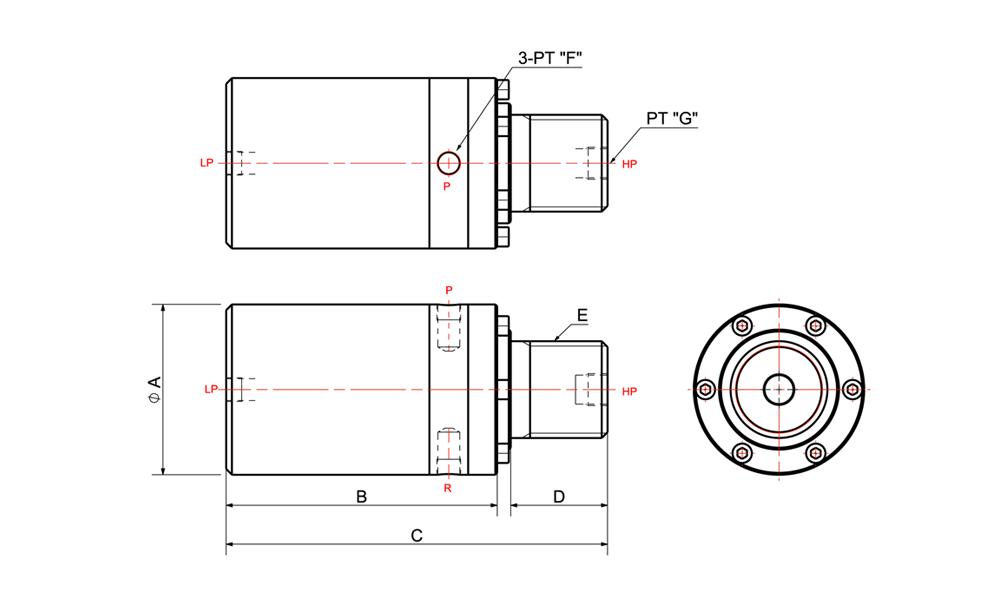

Dimensions
MODEL NO. DIMENSIONS (mm) Download
A(ø) B C D E F G Weight(kg) 2D 3D PDF
HHB-0202 78 121 157 30 M50 x P1.5 PT 1/4 PT 3/8 4.25
HHB-0402 88 120 160 33 M50 x P1.5 PT 1/4 PT 3/8 5.10
HHB-0602 88 140 197 50 M50 x P1.5 PT 1/4 PT 3/8 5.85
