LOCK TYPE
YOU CAN COUNT ON OUR EXPERTISE

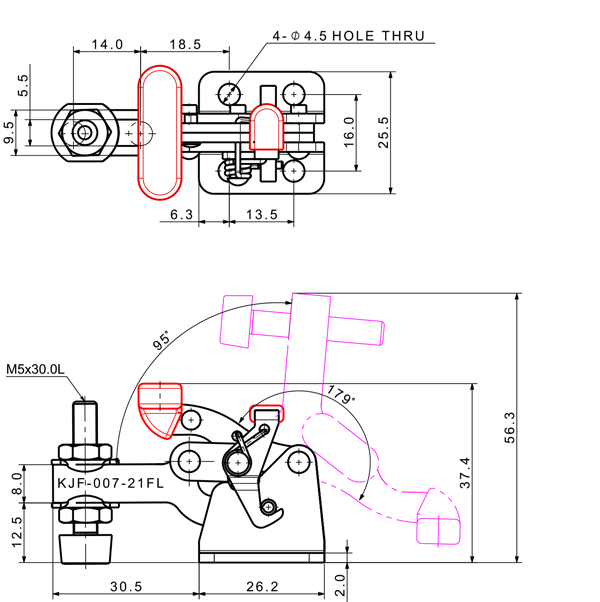

Model No. KJF-007-21FL
| Holding Capacity(kgf) | Weight(g) | Handle Move | Arm Move | Spindle Supplied | Spindle Adjust.(mm) | Arm Type | Arm Length | Base Type | Base Height | 2D | 3D | 주문 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 70 | 60 | 179˚ | 95˚ | M5 x 30.0L | 14 | U | Short | Flange | Low |  |
 |
 |
 |

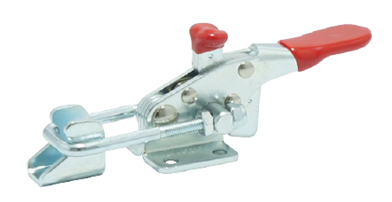

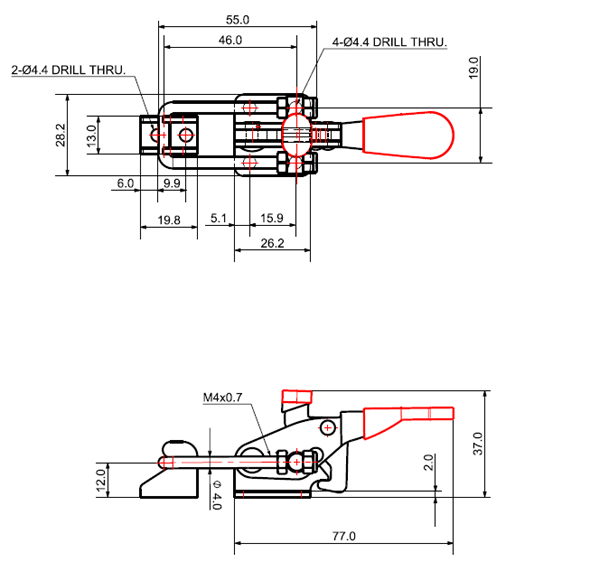

Model No. KJF-016-41FL
| Holding Capacity(kgf) | Weight(g) | U-bolt Adjust.(mm) | Base Type | 2D | 3D | 주문 | |
|---|---|---|---|---|---|---|---|
| 160 | 90 | 10 | Flange | |
|
|
|

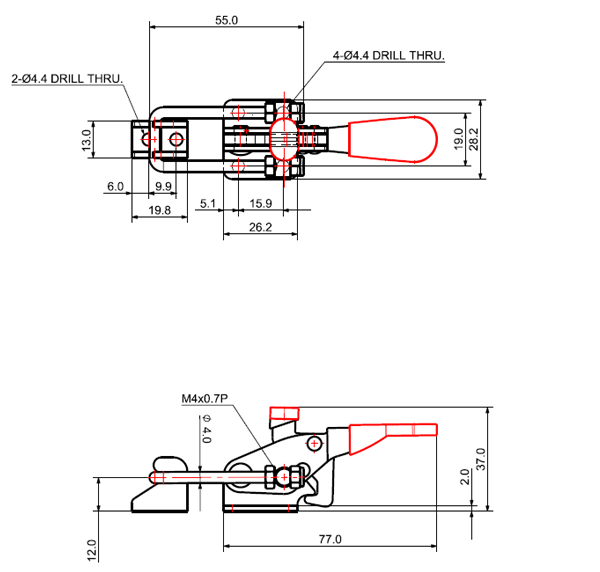

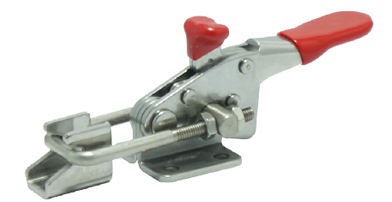

Model No. KJF-016-41FSL(stainless)
| Holding Capacity(kgf) | Weight(g) | U-bolt Adjust.(mm) | Base Type | 2D | 3D | 주문 | |
|---|---|---|---|---|---|---|---|
| 160 | 90 | 10 | Flange | |
|
|
|

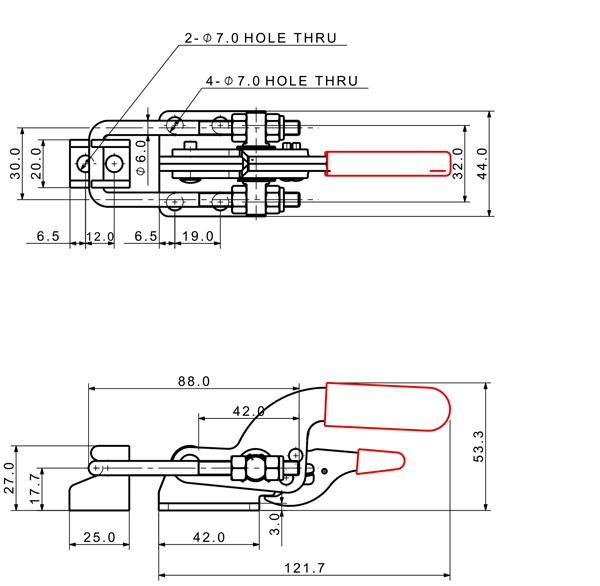

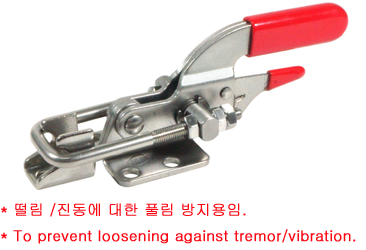

Model No. KJF-032-41FSL(stainless)
| Holding Capacity(kgf) | Weight(g) | U-bolt Adjust.(mm) | Base Type | 2D | 3D | 주문 | |
|---|---|---|---|---|---|---|---|
| 320 | 300 | 20 | Flange | |
|
|
|

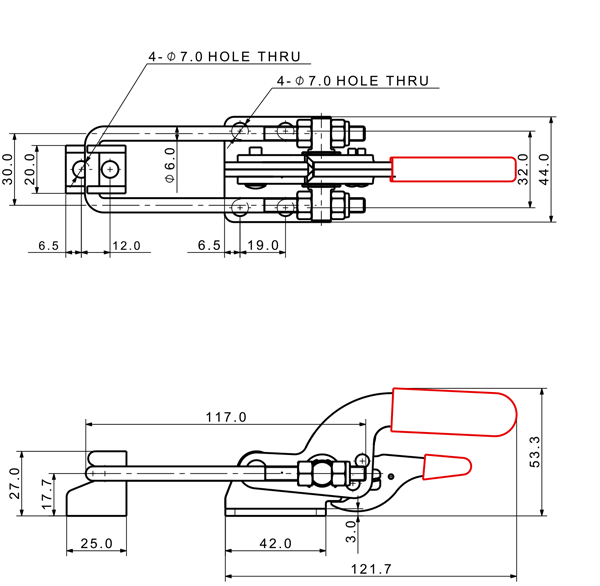

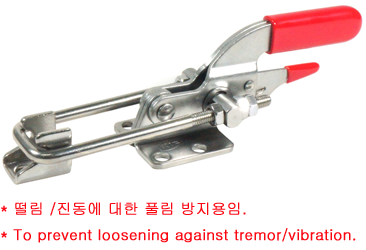

Model No. KJF-032-42FSL(stainless)
| Holding Capacity(kgf) | Weight(g) | U-bolt Adjust.(mm) | Base Type | 2D | 3D | 주문 | |
|---|---|---|---|---|---|---|---|
| 320 | 298 | 20 | Flange | |
|
|
|

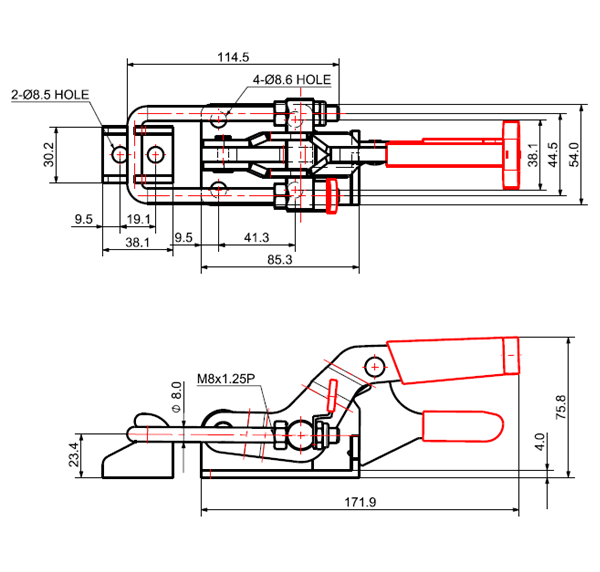

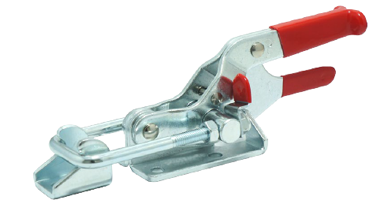

Model No. KJF-090-41FL
| Holding Capacity(kgf) | Weight(g) | U-bolt Adjust.(mm) | Base Type | 2D | 3D | 주문 | |
|---|---|---|---|---|---|---|---|
| 900 | 750 | 8.5 | Flange | |
|
|
|

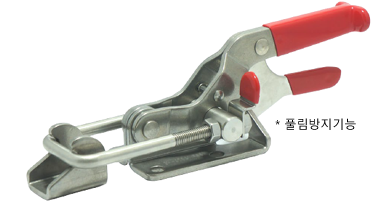

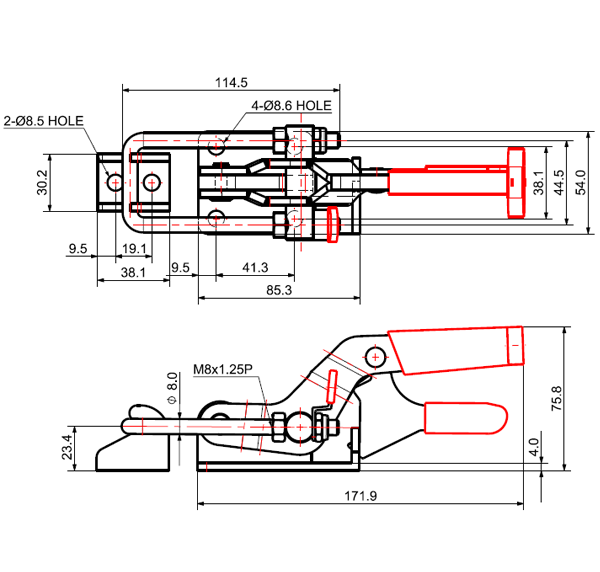

Model No. KJF-090-41FSL(stainless)
| Holding Capacity(kgf) | Weight(g) | U-bolt Adjust.(mm) | Base Type | 2D | 3D | 주문 | |
|---|---|---|---|---|---|---|---|
| 900 | 750 | 8.5 | Flange | |
|
|
|

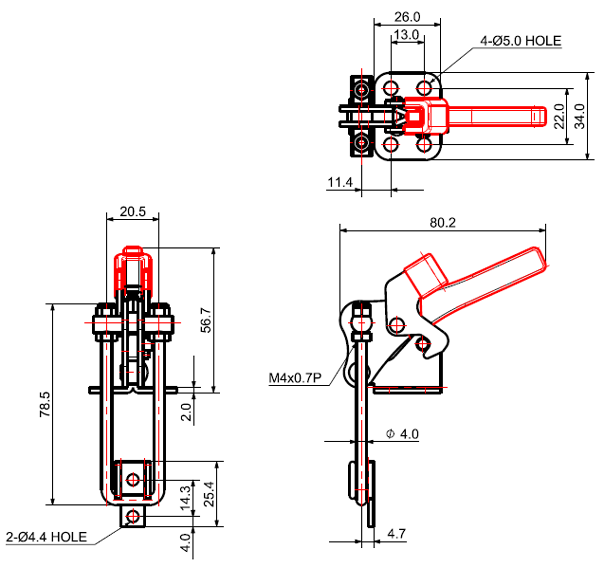

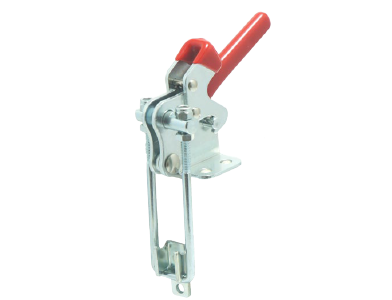

Model No. KJF-023-43FL
| Holding Capacity(kgf) | Weight(g) | U-bolt Adjust.(mm) | Base Type | 2D | 3D | 주문 | |
|---|---|---|---|---|---|---|---|
| 230 | 120 | 8 | Flange | |
|
|
|
