Push/Pull Type Threaded body Clamp

YOU CAN COUNT ON OUR EXPERTISE

Features
  • 설치 용이
  • 다양한 사이즈
  • 복동
  • 내경범위 : ø32~63
  • 작동범위 : 15~250kgf/㎠
  • 사용온도 : 0~60℃
Model No.
  • 1
    Clamp Type
    TBD = Threaded Body Clamp (Double-acting)
  • 2
    Piston Diameter
    ex ) 32 = Ø32
  • 3
    Pistion Rod Stroke
    ex ) 25 = 25mm
THREADED BODY CLAMP PUSH/PULL TYPE
  • TBD-3225
  • TBD-4025
  • TBD-5025
  • TBD-6325
Specifications
MODEL NO. Clamping Force (Ton) Effective Area (㎠) Oil Capacity (㎤) Weight (kg)
TBD-3225 1.80 7.2 18.1 1.2
TBD-3250 36.3 1.4
TBD-4025 2.92 11.7 29.5 2.1
TBD-4050 58.9 2.6
TBD-5025 4.62 18.5 47.1 3.0
TBD-5050 94.2 3.6
TBD-6325 7.57 30.3 76.0 4.1
TBD-6350 152.0 4.8

Model No.

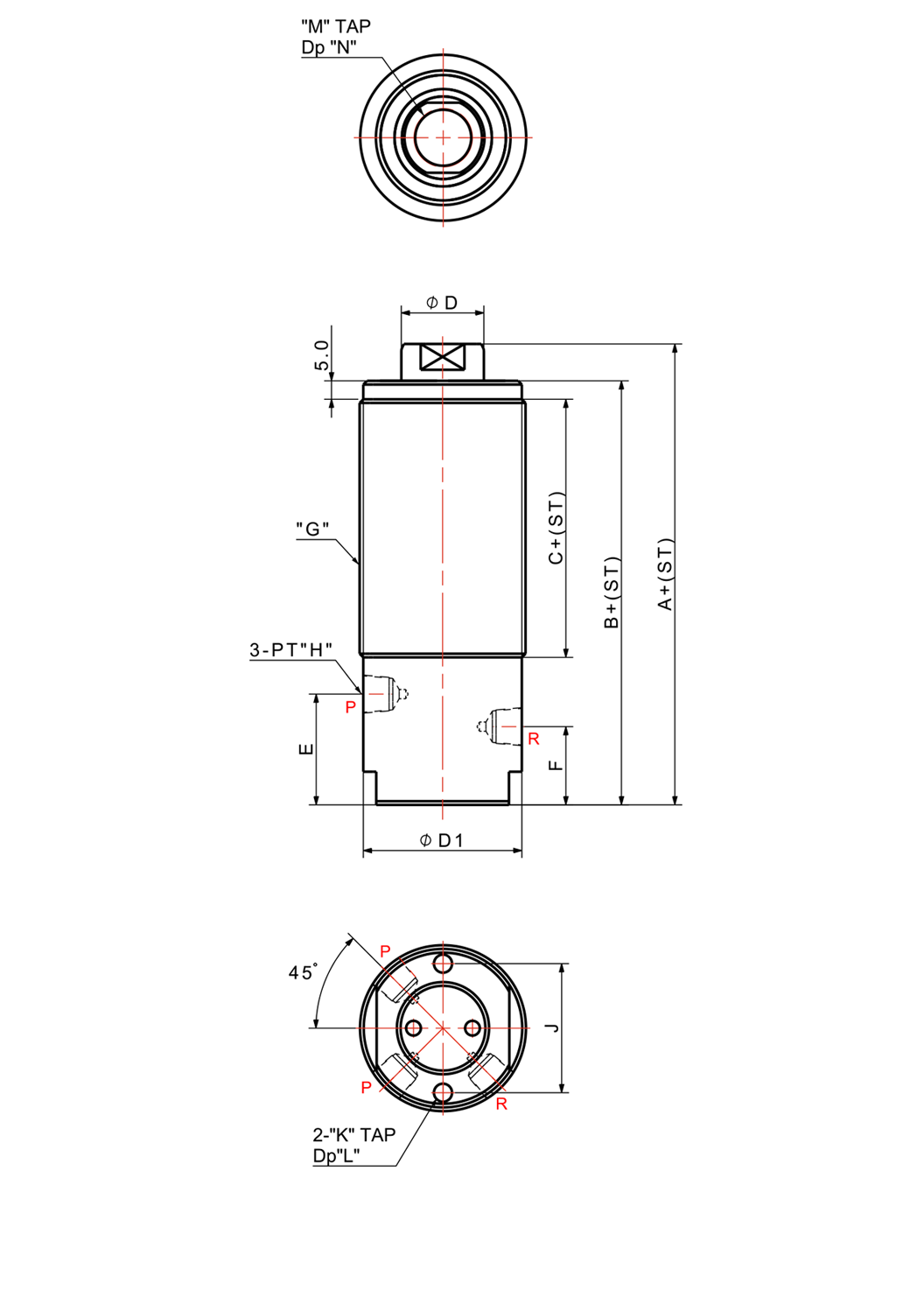

 DIMENSIONS(mm) DOWNLOAD 주문
A B C øD øD1 E F G H J K L M N Piston Dia. 2D 3D PDF
TBD-3225 100 90 45 22.4 43 29 22 M45x1.5P 1/4 35 M6x1.0P 15 M16x2.0P 15 ø32
TBD-3250 100 90 45 22.4 43 29 22 M45x1.5P 1/4 35 M6x1.0P 15 M16x2.0P 15 ø32
TBD-4025 100 90 43 30 57 29 22 M60x2.0P 1/4 40 M8x1.25P 15 M20x2.5P 20 ø40
TBD-4050 100 90 43 30 57 29 22 M60x2.0P 1/4 40 M8x1.25P 15 M20x2.5P 20 ø40
TBD-5025 105 97 43 40 67 29 22 M70x2.0P 1/4 48 M10x1.5P 15 M24x3.0P 22 ø50
TBD-5050 105 97 43 40 67 29 22 M70x2.0P 1/4 48 M10x1.5P 15 M24x3.0P 22 ø50
TBD-6325 112 97 45 50 77 29 22 M80x2.0P 1/4 58 M12x1.75P 20 M30x3.5P 25 ø63
TBD-6350 112 97 45 50 77 29 22 M80x2.0P 1/4 58 M12x1.75P 20 M30x3.5P 25 ø63
