저압용 Built-In Type Work Support

YOU CAN COUNT ON OUR EXPERTISE

Features
  • 강력한 써포팅
  • 원활한 작동성
  • 1단 & 2단 작동방식
  • 사용압력 : 25~70kgf/㎠
  • 사용온도 : 0~70℃
  • 본체 권장체결토크 : 612 kgf·cm(60 N·m)
  • 과도한 힘으로 결합시 불량의 원인이 됨.
Supporting Force Graph
Circuit Diagram
Specifications

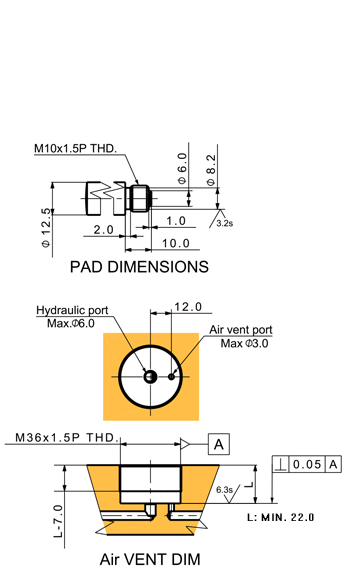

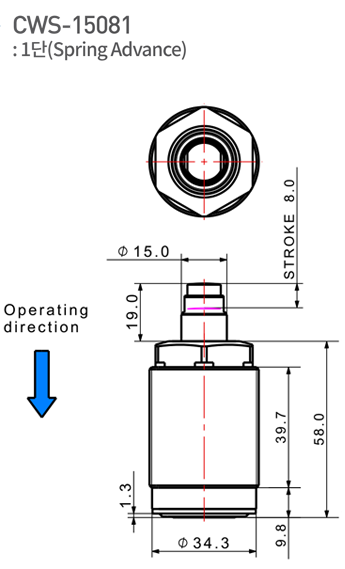

MODEL NO. CWS-15081 CWS-15082
Type Built-In Built-In
Operation Method Spring Advance Hydraulic Advance
Support Force(kgf) at 70kgf/㎠ 550 550
Plunger Stroke (mm) 8 8
Plunger Diameter (Ø) 15 15
Oil Capacity(㎠) 9.7 16
Plunger Spring Froce (kgf) 0.95~1.40 0.95~1.40
Operating Pressure 25 ~ 70 kgf/cm2
Operating Temperature 0 ~ 70℃
Weight (kg) 0.38 0.37
Download 2D 3D PDF 2D 3D PDF
