PUSH/PULL TYPE
YOU CAN COUNT ON OUR EXPERTISE

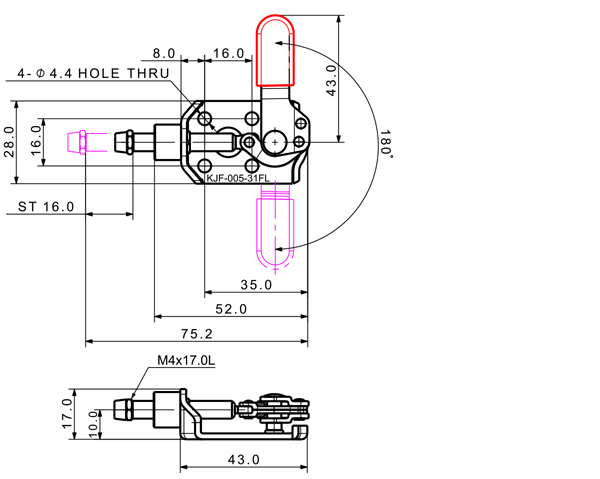

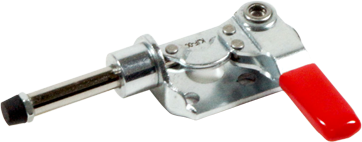

Model No. KJF-005-31FL
| Holding Capacity(kgf) | Weight(g) | Handle Move | Spindle Supplied | Rod Stroke(mm) | Base Type | 2D | 3D | 주문 | |
|---|---|---|---|---|---|---|---|---|---|
| 50 | 52 | 180˚ | M4 x 17.0L | 16 | Flange |  |
 |
 |
 |

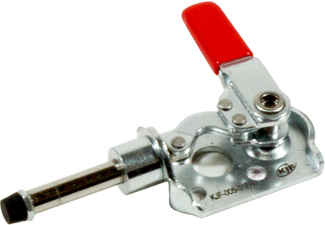

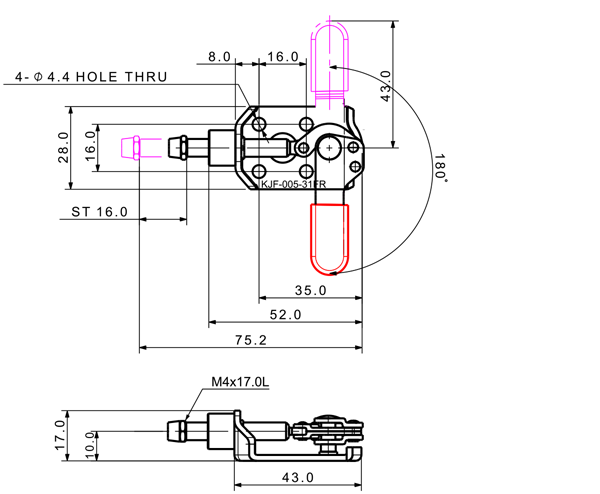

Model No. KJF-005-31FR
| Holding Capacity(kgf) | Weight(g) | Handle Move | Spindle Supplied | Rod Stroke(mm) | Base Type | 2D | 3D | 주문 | |
|---|---|---|---|---|---|---|---|---|---|
| 50 | 52 | 180˚ | M4 x 17.0L | 16 | Flange | |
|
|
|

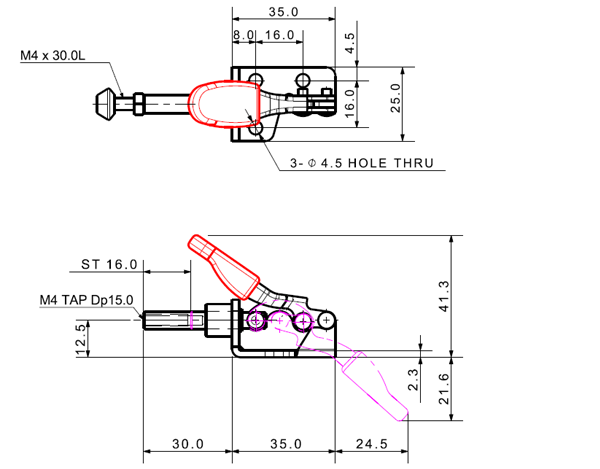

Model No. KJF-005-31F
| Holding Capacity(kgf) | Weight(g) | Handle Move | Spindle Supplied | Rod Stroke(mm) | Base Type | 2D | 3D | 주문 | |
|---|---|---|---|---|---|---|---|---|---|
| 50 | 43 | 177˚ | M4 x 30.0L | 16 | Flange | |
|
|
|

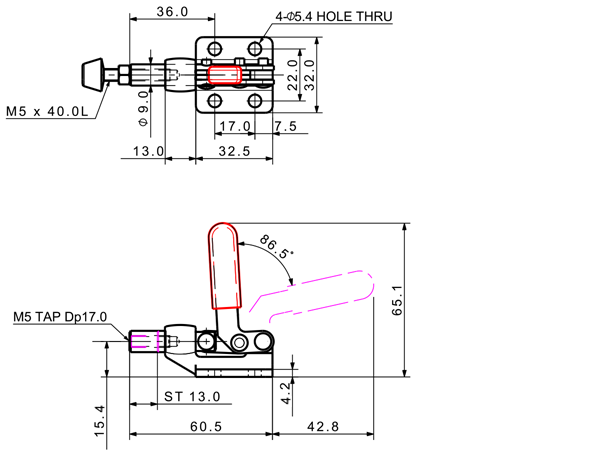

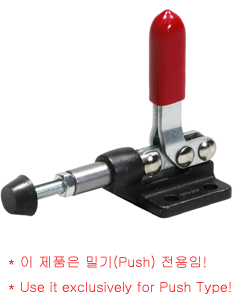

Model No. KJF-010-31F
| Holding Capacity(kgf) | Weight(g) | Handle Move | Spindle Supplied | Rod Stroke(mm) | Base Type | 2D | 3D | 주문 | |
|---|---|---|---|---|---|---|---|---|---|
| 100 | 106 | 87˚ | M5 x 40.0L | 13 | Flange | |
|
|
|

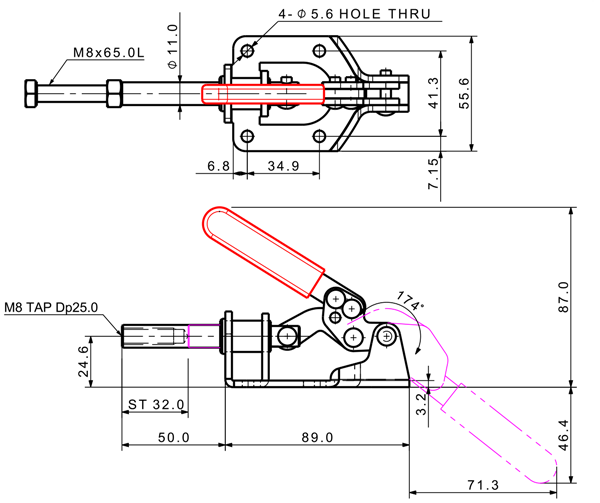

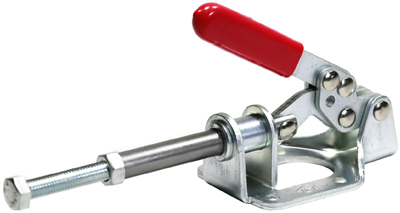

Model No. KJF-014-31F
| Holding Capacity(kgf) | Weight(g) | Handle Move | Spindle Supplied | Rod Stroke(mm) | Base Type | 2D | 3D | 주문 | |
|---|---|---|---|---|---|---|---|---|---|
| 140 | 305 | 174˚ | M8 x 65.0L | 32 | Flange | |
|
|
|

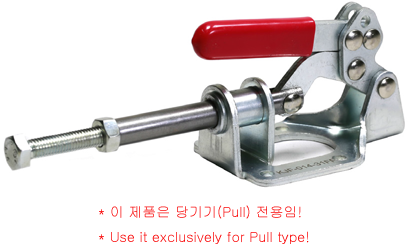

Model No. KJF-014-31FF
| Holding Capacity(kgf) | Weight(g) | Handle Move | Spindle Supplied | Rod Stroke(mm) | Base Type | 2D | 3D | 주문 | |
|---|---|---|---|---|---|---|---|---|---|
| 140 | 306 | 178˚ | M8 x 65.0L | 28 | Flange | |
|
|
|

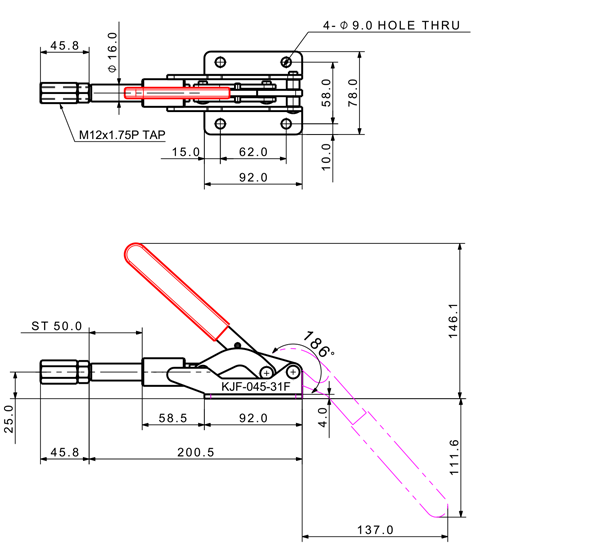

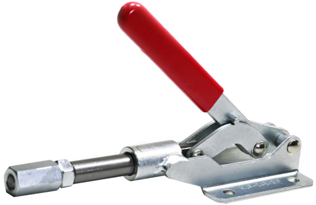

Model No. KJF-045-31F
| Holding Capacity(kgf) | Weight(g) | Handle Move | Spindle Supplied | Rod Stroke(mm) | Base Type | 2D | 3D | 주문 | |
|---|---|---|---|---|---|---|---|---|---|
| 450 | 925 | 186˚ | N/A | 50 | Flange | |
|
|
|

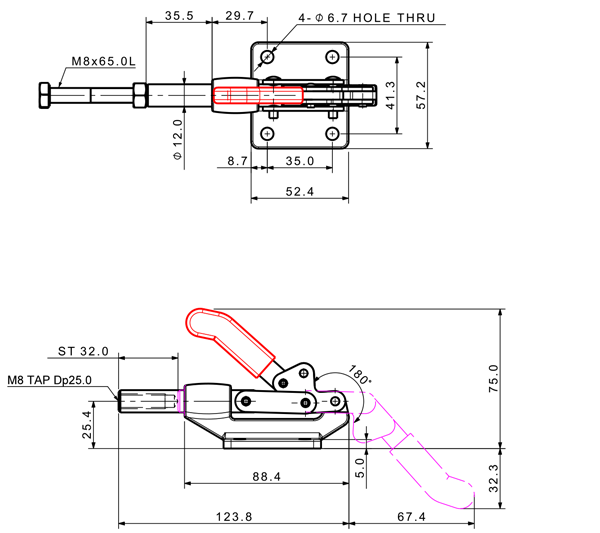

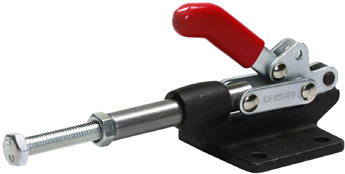

Model No. KJF-023-31FD
| Holding Capacity(kgf) | Weight(g) | Handle Move | Spindle Supplied | Rod Stroke(mm) | Base Type | 2D | 3D | 주문 | |
|---|---|---|---|---|---|---|---|---|---|
| 230 | 351 | 180˚ | M8 x 65.0L | 32 | Flange | |
|
|
|

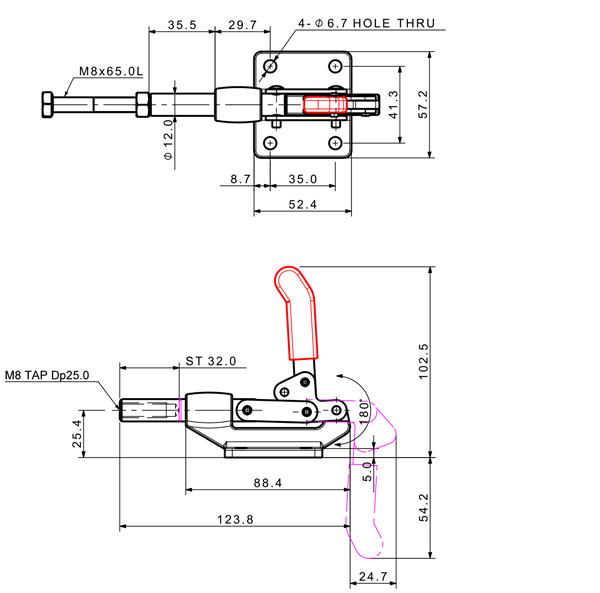

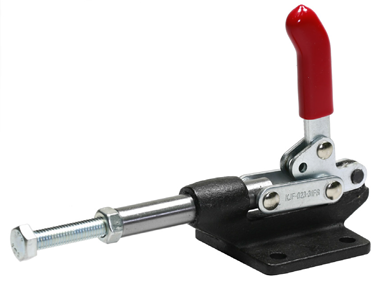

Model No. KJF-023-31FS
| Holding Capacity(kgf) | Weight(g) | Handle Move | Spindle Supplied | Rod Stroke(mm) | Base Type | 2D | 3D | 주문 | |
|---|---|---|---|---|---|---|---|---|---|
| 230 | 360 | 180˚ | M8 x 65.0L | 32 | Flange | |
|
|
|

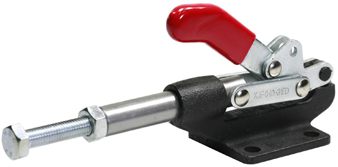

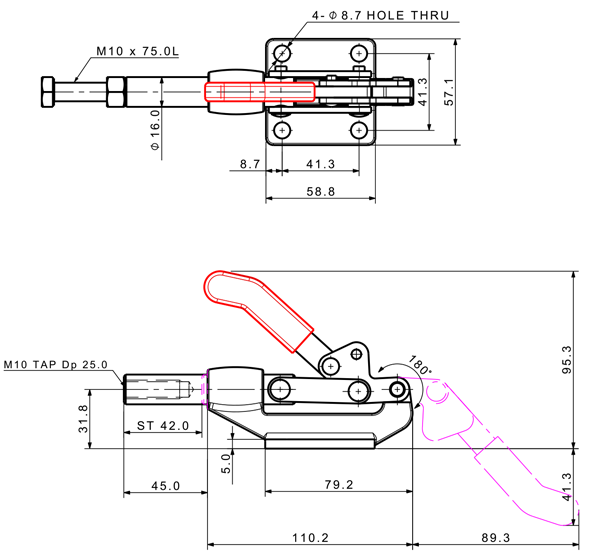

Model No. KJF-040-31FD
| Holding Capacity(kgf) | Weight(g) | Handle Move | Spindle Supplied | Rod Stroke(mm) | Base Type | 2D | 3D | 주문 | |
|---|---|---|---|---|---|---|---|---|---|
| 400 | 641 | 180˚ | M10 x 75.0L | 42 | Flange | |
|
|
|

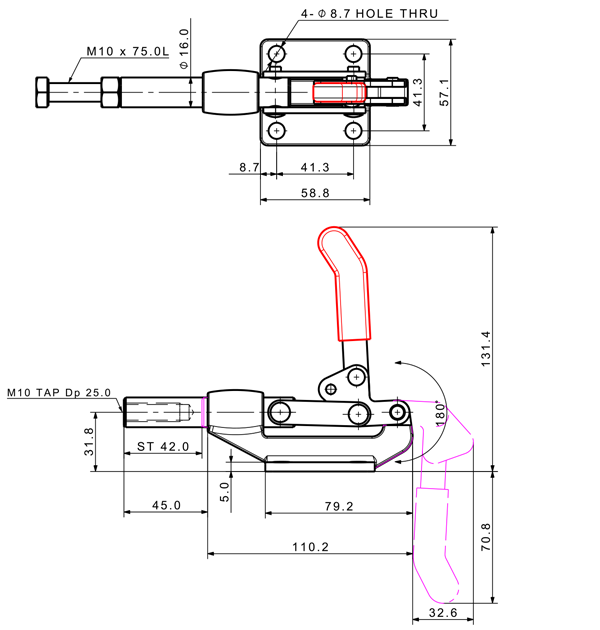

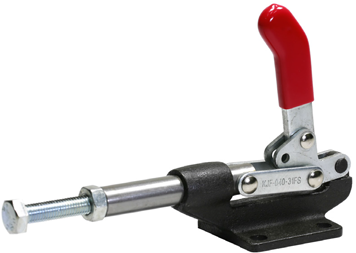

Model No. KJF-040-31FS
| Holding Capacity(kgf) | Weight(g) | Handle Move | Spindle Supplied | Rod Stroke(mm) | Base Type | 2D | 3D | 주문 | |
|---|---|---|---|---|---|---|---|---|---|
| 400 | 649 | 180˚ | M10 x 75.0L | 42 | Flange | |
|
|
|

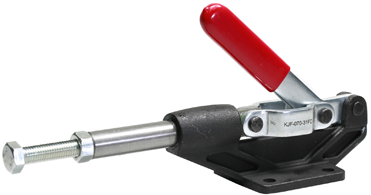

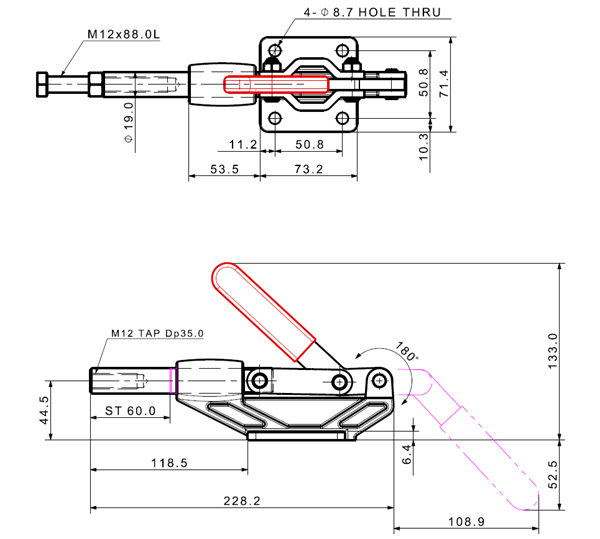

Model No. KJF-070-31FD
| Holding Capacity(kgf) | Weight(g) | Handle Move | Spindle Supplied | Rod Stroke(mm) | Base Type | 2D | 3D | 주문 | |
|---|---|---|---|---|---|---|---|---|---|
| 700 | 1420 | 180˚ | M12 x 80.0L | 60 | Flange | |
|
|
|

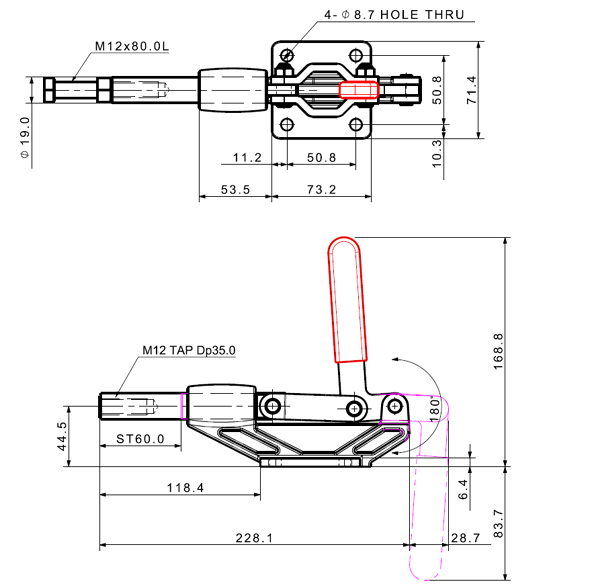

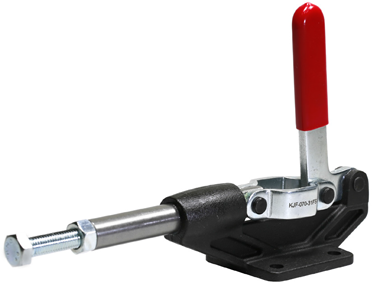

Model No. KJF-070-31FS
| Holding Capacity(kgf) | Weight(g) | Handle Move | Spindle Supplied | Rod Stroke(mm) | Base Type | 2D | 3D | 주문 | |
|---|---|---|---|---|---|---|---|---|---|
| 700 | 1430 | 180˚ | M12 x 80.0L | 60 | Flange | |
|
|
|

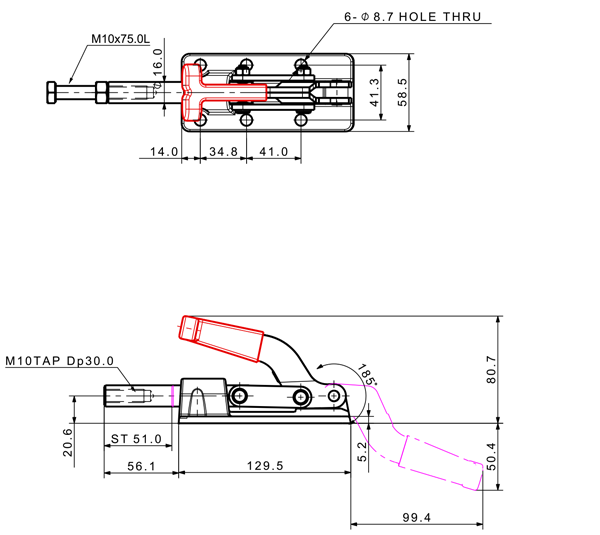

Model No. KJF-120-31F
| Holding Capacity(kgf) | Weight(g) | Handle Move | Spindle Supplied | Rod Stroke(mm) | Base Type | 2D | 3D | 주문 | |
|---|---|---|---|---|---|---|---|---|---|
| 1200 | 926 | 185˚ | M10 x 75.0L | 51 | Flange | |
|
|
|

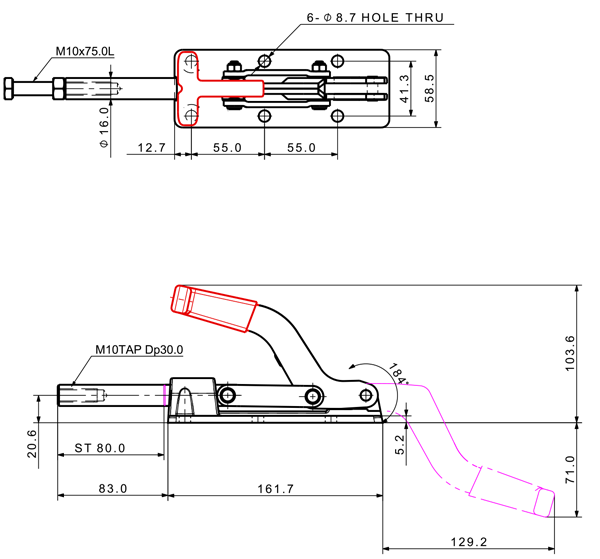

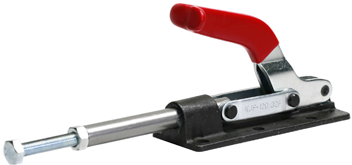

Model No. KJF-120-32F
| Holding Capacity(kgf) | Weight(g) | Handle Move | Spindle Supplied | Rod Stroke(mm) | Base Type | 2D | 3D | 주문 | |
|---|---|---|---|---|---|---|---|---|---|
| 1200 | 1130 | 184˚ | M10 x 75.0L | 80 | Flange | |
|
|
|

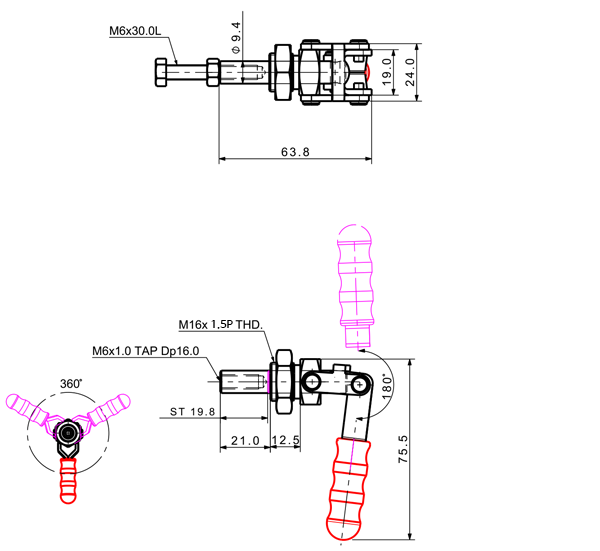

Model No. KJF-008-31F
| Holding Capacity(kgf) | Weight(g) | Handle Move | Spindle Supplied | Rod Stroke(mm) | Base Type | 2D | 3D | 주문 | |
|---|---|---|---|---|---|---|---|---|---|
| 80 | 118 | 180˚ | M6 x 30.0L | 20 | Threaded | |
|
|
|

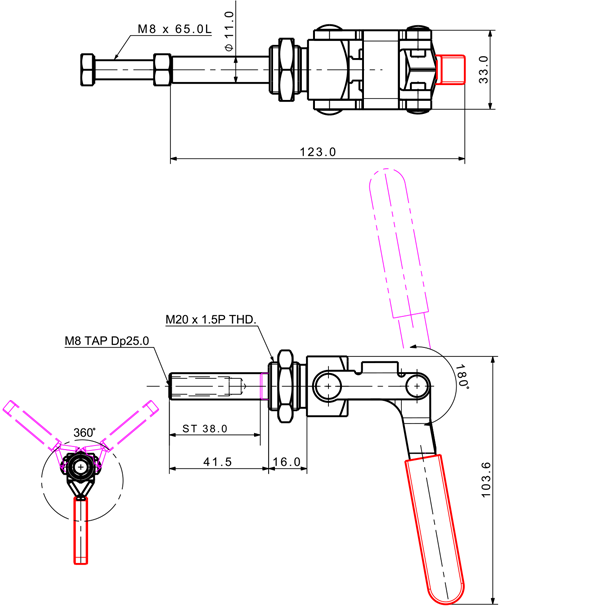

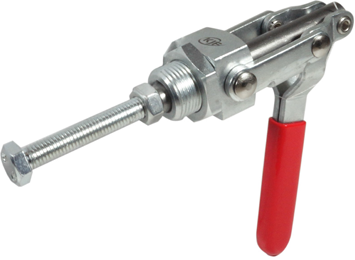

Model No. KJF-015-31F
| Holding Capacity(kgf) | Weight(g) | Handle Move | Spindle Supplied | Rod Stroke(mm) | Base Type | 2D | 3D | 주문 | |
|---|---|---|---|---|---|---|---|---|---|
| 150 | 299 | 180˚ | M8 x 65.0L | 38 | Threaded | |
|
|
|

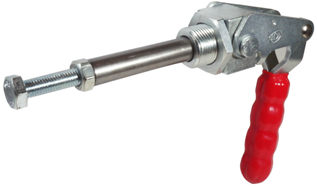

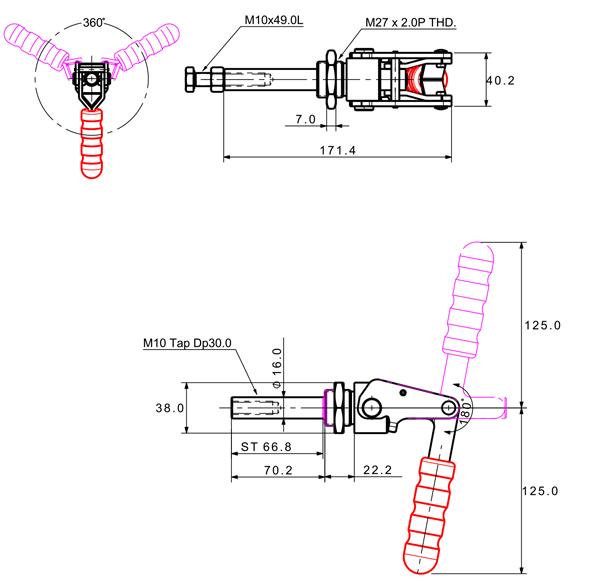

Model No. KJF-030-31F
| Holding Capacity(kgf) | Weight(g) | Handle Move | Spindle Supplied | Rod Stroke(mm) | Base Type | 2D | 3D | 주문 | |
|---|---|---|---|---|---|---|---|---|---|
| 300 | 830 | 180˚ | M10 x 49.0L | 67 | Threaded | |
|
|
|

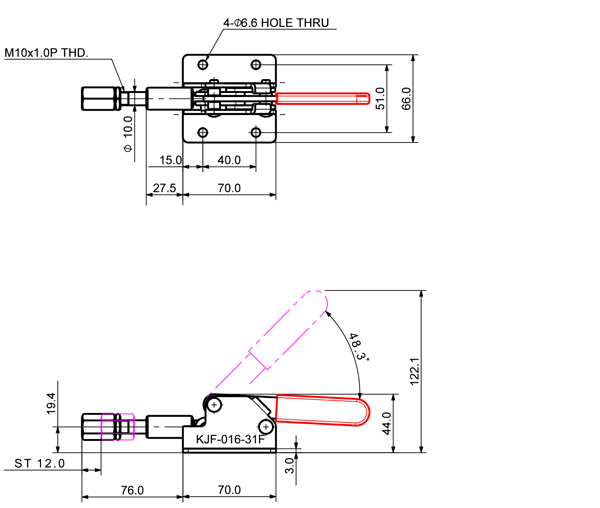

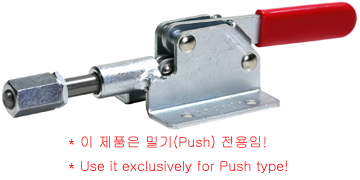

Model No. KJF-016-31F
| Holding Capacity(kgf) | Weight(g) | Handle Move | Spindle Supplied | Rod Stroke(mm) | Base Type | 2D | 3D | 주문 | |
|---|---|---|---|---|---|---|---|---|---|
| 160 | 442 | 49˚ | N/A | 12 | Flange | |
|
|
|
