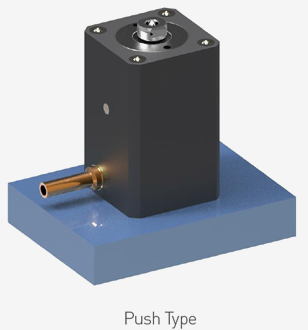

Push Vertical Type Block Clamp

YOU CAN COUNT ON OUR EXPERTISE

Piping Method
Features
  • 단동
  • 스프링 복귀 방식
  • 설치 용이
  • 유로를 가능한 크게 하시오
  • 내경범위 : ø28~63
  • 작동압력 : 15~250kgf/㎠
  • 피스톤속도 : 8~100mm/s
  • 사용온도 : 0~60℃
Model No.
  • 1
    Clamp Type
    BDV = Block Clamp, Double(Push/Pull)-acting, Vertical type
    BPV = Block Clamp, Single(Push)-acting , Vertical type
  • 2
    Piston Diameter
    ex ) 28 = Ø28
  • 3
    Pistion Rod Stroke
    ex ) 15 = 15mm
BLOCK CLAMP PUSH VERTICAL TYPE
  • BPV-2815
  • BPV-3215
  • BPV-4015
  • BPV-5015
  • BPV-6315
Specifications
MODEL NO. Max.Clamping Force (Ton) Effective Area (㎠) Oil Capacity (㎤) Weight(kg) Operating Pressure Range Operating Temperature Range
Push Push Push
BPV-2815 1.52 6.1 9.3 1.4 15~250 kgf/㎠ 0~60℃
BPV-2825 15.4 1.9
BPV-3215 2.00 8.0 12.0 1.9
BPV-3225 20.1 2.4
BPV-4015 3.12 12.5 18.9 2.4
BPV-4025 31.4 2.9
BPV-5015 4.95 19.8 29.5 3.3
BPV-5025 49.1 4.1
BPV-6315 7.77 31.1 46.8 4.9
BPV-6325 78.0 5.4

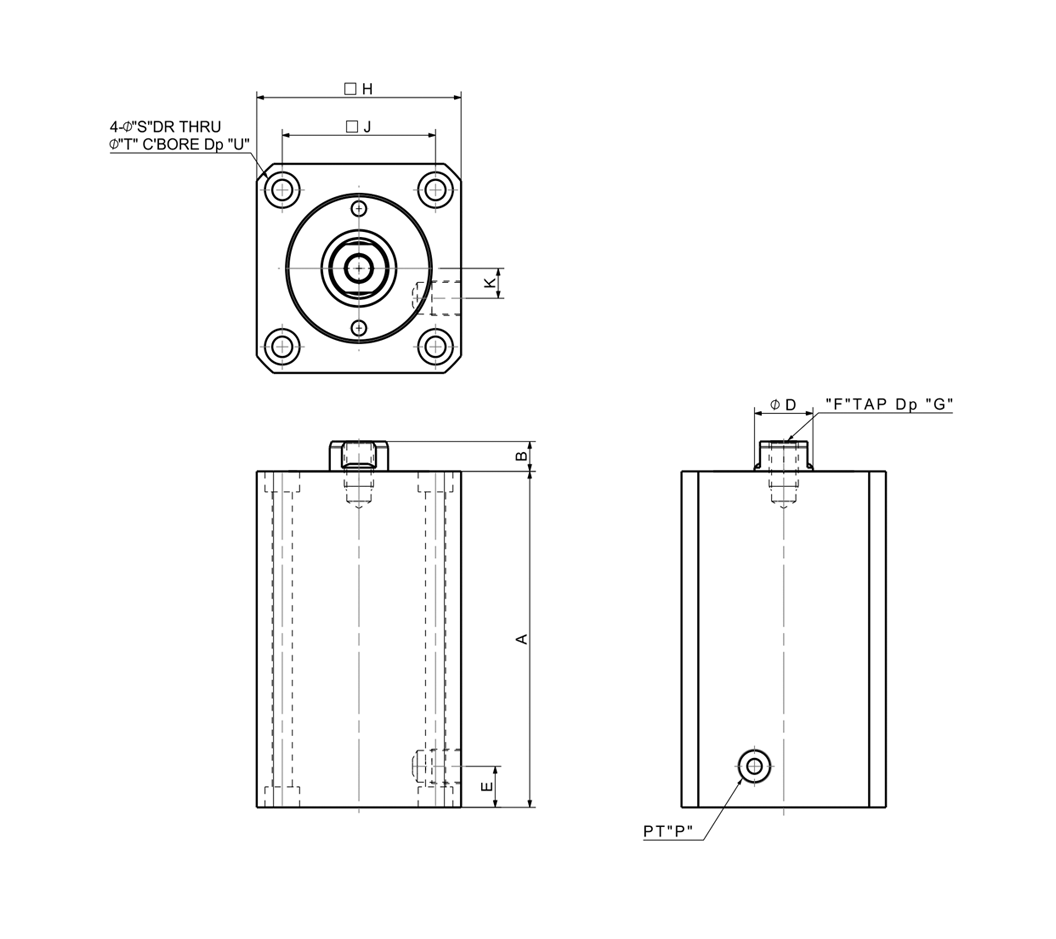

MODEL NO. DIMENSIONS (mm) Download 주문
A B øD E F G H J K P øS øT U Pistondia. 2D 3D PDF
BPV-2815 72 8 16 11 M8 x P1.25 12 56 42 8 1/8 5.5 9.5 5.5 ø28
BPV-2825 90 8 16 11 M8 x P1.25 12 56 42 8 1/8 5.5 9.5 5.5 ø28
BPV-3215 72 10 18 12.5 M10x P1.5 15 62 47 10 1/4 6.6 11 6.5 ø32
BPV-3225 90 10 18 12.5 M10x P1.5 15 62 47 10 1/4 6.6 11 6.5 ø32
BPV-4015 73 10 22.4 12 M12xP1.75 20 70 52 10 1/4 9 14 9 ø40
BPV-4025 93 10 22.4 12 M12xP1.75 20 70 52 10 1/4 9 14 9 ø40
BPV-5015 78 10 28 13 M16x P2.0 25 80 58 10 1/4 11 18 12 ø50
BPV-5025 98 10 28 13 M16x P2.0 25 80 58 10 1/4 11 18 12 ø50
BPV-6315 86 13 35.5 15 M20x P2.5 33 94 69 10 1/4 14 20 13 ø63
BPV-6325 106 13 35.5 15 M20x P2.5 33 94 69 10 1/4 14 20 13 ø63
