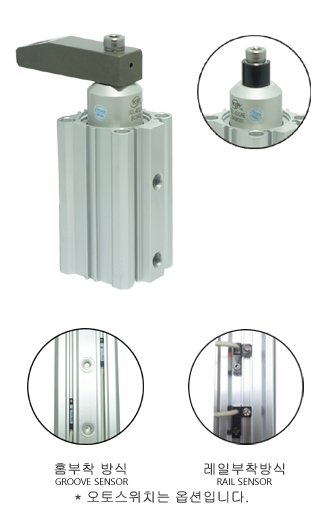

Pneumatic Magnetic Sensor Type SWING CLAMPS

YOU CAN COUNT ON OUR EXPERTISE

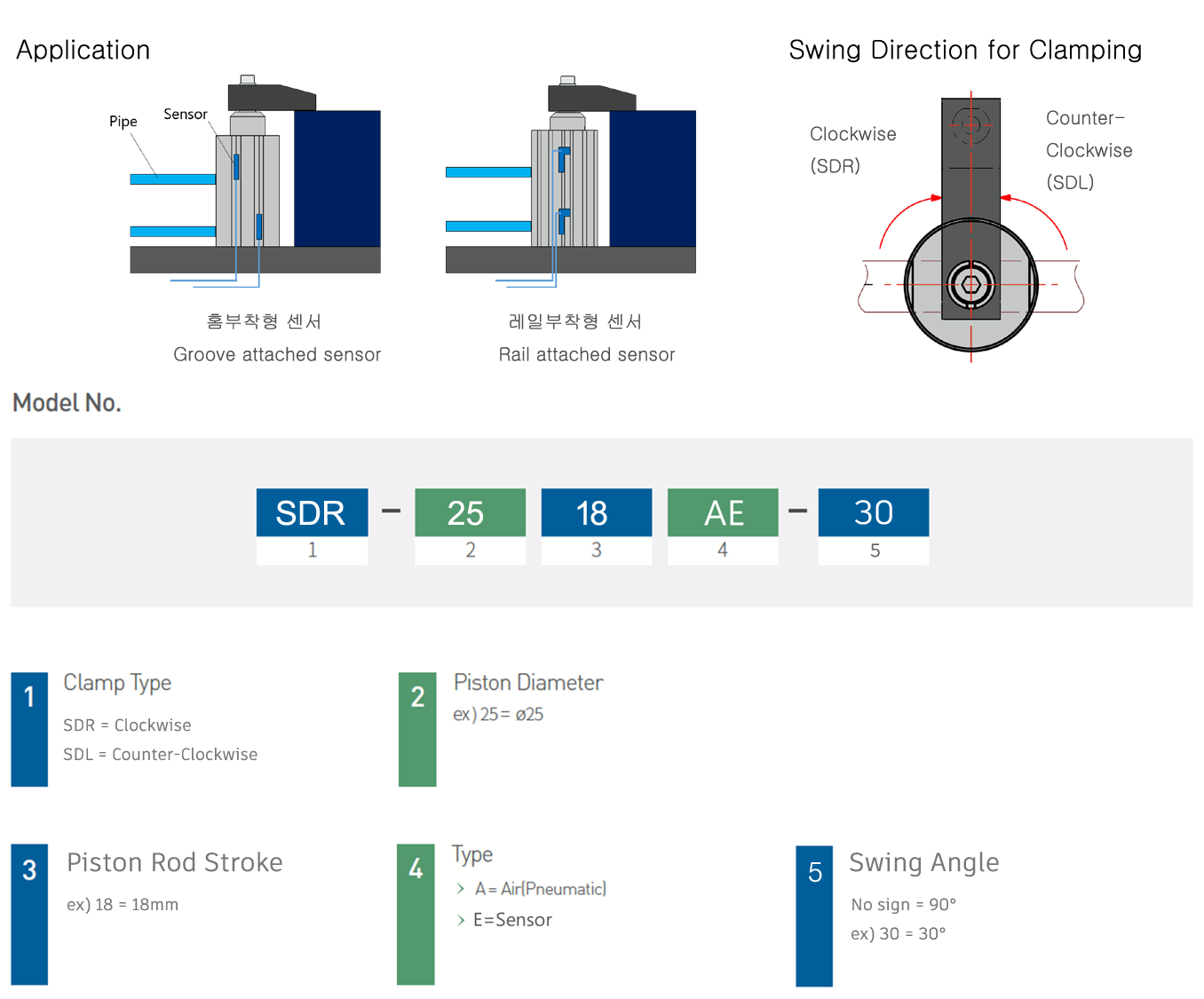

Operation
Features
  • Built-In magnet type
  • Sensing for clamping/unclamping
  • Double-acting
  • Non-magnetic type is available.
  • Lever is option item.
  • Piston Diameter : ø25~50
  • Operating Pressure : 3~9.99kgf/㎠
  • Operating Temperature : 0~60℃
  • Install Speed Control Valve.
Specifications
Model No. Cylinder Force(kgf) Piston
Diameter(ø)		 Effective
Area(㎠)		 Stroke(mm) Swing Angle Tolerance
(Repeated Accuracy)		 Operating
Pressure Range
(kgf/㎠)		 Operating
Temperature
Range(℃)		 Weight
(kg)
Max. Min. Swing Straight Total
SD□-2018AE 23.3 7.1 20 2.35 9 9 18 ±3°
(±0.5°)		 3~9.9 0~60 0.3
SD□-2518AE 40.8 12.4 25 4.12 8 10 18 0.5
SD□-3225AE 68.4 20.7 32 6.91 15 10 25 0.8
SD□-4032AE 106.9 32.4 40 10.79 17 15 32 1.3
SD□-5032AE 169.1 51.2 50 17.08 17 15 32 2.0
SD□-6341AE 227.4 84.0 63 28.0 18 23 41 2.4

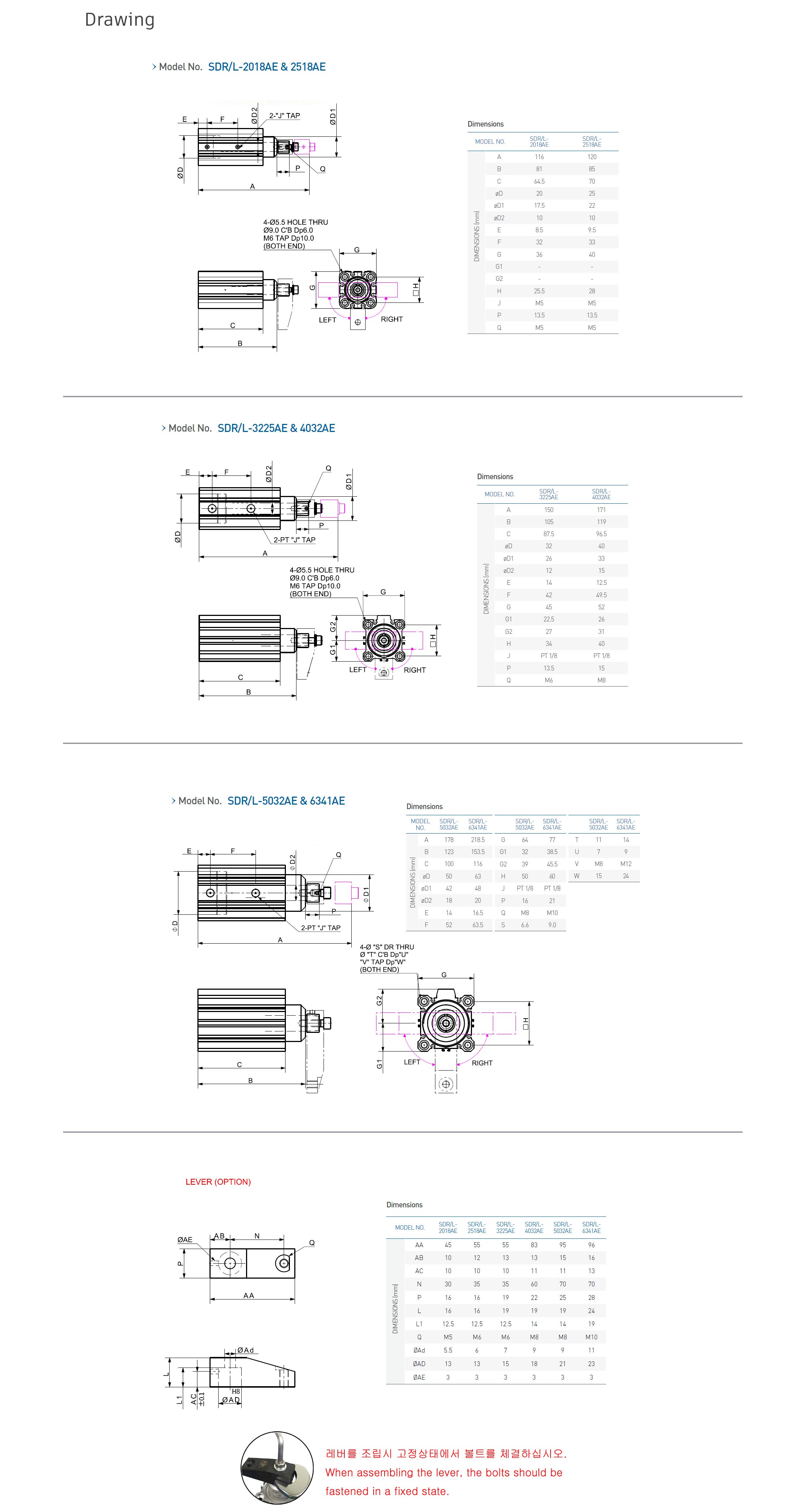

MODEL NO Drawing Download
2D 3D PDF
SD□-2018AE
SD□-2518AE
SD□-3225AE
SD□-4032AE
SD□-5032AE
SD□-6341AE
