PNEUMATIC TYPE
YOU CAN COUNT ON OUR EXPERTISE
Model No. KJF-AR-1051
| Holding Capacity(kgf) | Weight(g) | Arm Move | Spindle Adjust.(mm) | Air Port Size | Cylinder Size | 2D | 3D | |
|---|---|---|---|---|---|---|---|---|
| 50 | 345 | 103 ˚ | 17 | PT 1/8 | ø20 x 25(ST) |  |
 |
 |
Model No. KJF-AR-1101
| Holding Capacity(kgf) | Weight(g) | Arm Move | Spindle Adjust.(mm) | Air Port Size | Cylinder Size | 2D | 3D | |
|---|---|---|---|---|---|---|---|---|
| 100 | 708 | 101 ˚ | 34 | PT 1/8 | ø25 x 50(ST) | |
|
|
Model No. KJF-AR-1102
| Holding Capacity(kgf) | Weight(g) | Arm Move | Spindle Adjust.(mm) | Air Port Size | Cylinder Size | 2D | 3D | |
|---|---|---|---|---|---|---|---|---|
| 100 | 730 | 101 ˚ | 82 | PT 1/8 | ø25 x 50(ST) | |
|
|
Model No. KJF-AR-1181
| Holding Capacity(kgf) | Weight(g) | Arm Move | Spindle Adjust.(mm) | Air Port Size | Cylinder Size | 2D | 3D | |
|---|---|---|---|---|---|---|---|---|
| 180 | 1140 | 103 ˚ | 48 | PT 1/8 | ø32 x 50(ST) | |
|
|
Model No. KJF-AR-1182
| Holding Capacity(kgf) | Weight(g) | Arm Move | Spindle Adjust.(mm) | Air Port Size | Cylinder Size | 2D | 3D | |
|---|---|---|---|---|---|---|---|---|
| 180 | 1170 | 103 ˚ | 81 | PT 1/8 | ø32 x 50(ST) | |
|
|
Model No. KJF-AR-1361
| Holding Capacity(kgf) | Weight(g) | Arm Move | Spindle Adjust.(mm) | Air Port Size | Cylinder Size | 2D | 3D | |
|---|---|---|---|---|---|---|---|---|
| 360 | 2582 | 118 ˚ | 60 | PT 1/4 | ø40 x 75(ST) | |
|
|
Model No. KJF-AR-1362
| Holding Capacity(kgf) | Weight(g) | Arm Move | Spindle Adjust.(mm) | Air Port Size | Cylinder Size | 2D | 3D | |
|---|---|---|---|---|---|---|---|---|
| 360 | 2647 | 118 ˚ | 114 | PT 1/4 | ø40 x 75(ST) | |
|
|
Model No. KJF-AR-1451
| Holding Capacity(kgf) | Weight(g) | Arm Move | Spindle Adjust.(mm) | Air Port Size | Cylinder Size | 2D | 3D | |
|---|---|---|---|---|---|---|---|---|
| 450 | 3180 | 115 ˚ | 103 | PT 1/4 | ø40 x 100(ST) | |
|
|
Model No. KJF-AR-1452
| Holding Capacity(kgf) | Weight(g) | Arm Move | Spindle Adjust.(mm) | Air Port Size | Cylinder Size | 2D | 3D | |
|---|---|---|---|---|---|---|---|---|
| 450 | 3230 | 143 ˚ | 143 | PT 1/4 | ø40 x 100(ST) | |
|
|

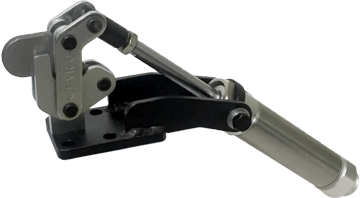

Model No. KJF-AR-701
| Holding Capacity(kgf) | Weight(g) | Arm Move | Spindle Adjust.(mm) | Air Port Size | Cylinder Size | 2D | 3D | |
|---|---|---|---|---|---|---|---|---|
| 500 | 1410 | 92 ˚ | N / A | PT 1/8 | ø32 x 75(ST) | |
|
|
Model No. KJF-AR-702
| Holding Capacity(kgf) | Weight(g) | Arm Move | Spindle Adjust.(mm) | Air Port Size | Cylinder Size | 2D | 3D | |
|---|---|---|---|---|---|---|---|---|
| 1000 | 2940 | 92 ˚ | N / A | PT 1/4 | ø40 x 100(ST) | |
|
|

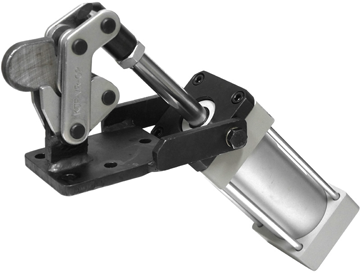

Model No. KJF-AR-702A
| Holding Capacity(kgf) | Weight(g) | Arm Move | Spindle Adjust.(mm) | Air Port Size | Cylinder Size | 2D | 3D | |
|---|---|---|---|---|---|---|---|---|
| 1000 | 4820 | 69.1 ˚ | N / A | PT 3/8 | ø63 x 100(ST) | |
|
|

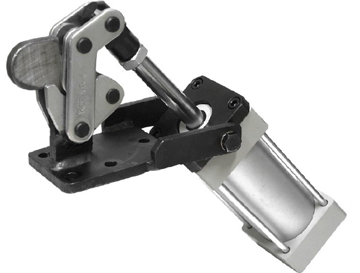

Model No. KJF-AR-703
| Holding Capacity(kgf) | Weight(g) | Arm Move | Spindle Adjust.(mm) | Air Port Size | Cylinder Size | 2D | 3D | |
|---|---|---|---|---|---|---|---|---|
| 2000 | 5930 | 47 ˚ | N / A | PT 3/8 | ø63 x 100(ST) | |
|
|
Model No. KJF-AR-3040
| Holding Capacity(kgf) | Weight(g) | Arm Move | Spindle Adjust.(mm) | Air Port Size | Cylinder Size | 2D | 3D | |
|---|---|---|---|---|---|---|---|---|
| 400 | 1500 | N / A | 24 | PT 1/8 | ø32 x 50(ST) | |
|
|
Model No. KJF-AR-3070
| Holding Capacity(kgf) | Weight(g) | Arm Move | Spindle Adjust.(mm) | Air Port Size | Cylinder Size | 2D | 3D | |
|---|---|---|---|---|---|---|---|---|
| 700 | 3400 | N / A | 35 | PT 1/4 | ø40 x 75(ST) | |
|
|
Model No. KJF-AR-3120
| Holding Capacity(kgf) | Weight(g) | Arm Move | Spindle Adjust.(mm) | Air Port Size | Cylinder Size | 2D | 3D | |
|---|---|---|---|---|---|---|---|---|
| 1200 | 5840 | N / A | 40 | PT 3/8 | ø50 x 100(ST) | |
|
|
