LATCH TYPE
YOU CAN COUNT ON OUR EXPERTISE

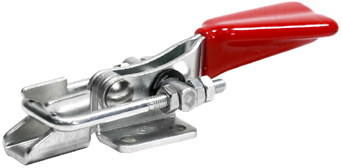

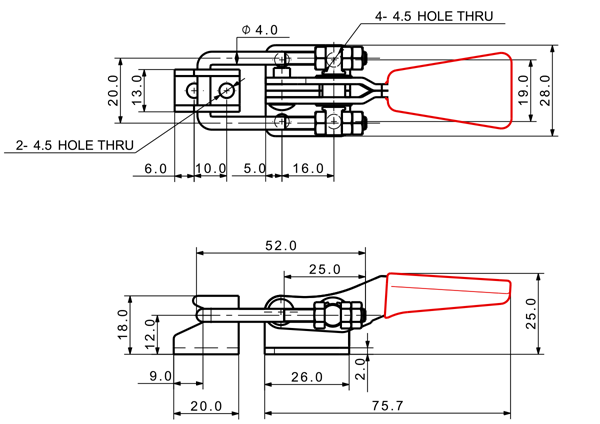

Model No. KJF-016-41F
| Holding Capacity(kgf) | Weight(g) | U-bolt Adjust.(mm) | Base Type | 2D | 3D | 주문 | |
|---|---|---|---|---|---|---|---|
| 160 | 79 | 10 | Flange |  |
 |
 |
 |

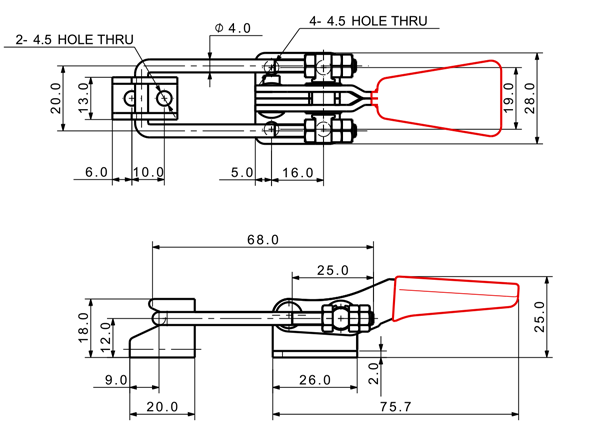

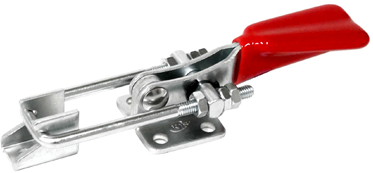

Model No. KJF-016-42F
| Holding Capacity(kgf) | Weight(g) | U-bolt Adjust.(mm) | Base Type | 2D | 3D | 주문 | |
|---|---|---|---|---|---|---|---|
| 160 | 83 | 10 | Flange | |
|
|
|

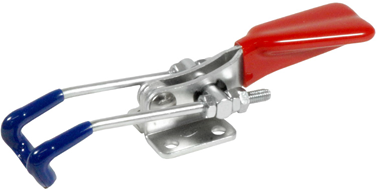

Model No. KJF-016-45F
| Holding Capacity(kgf) | Weight(g) | U-bolt Adjust.(mm) | Base Type | 2D | 3D | 주문 | |
|---|---|---|---|---|---|---|---|
| 160 | 85 | 10 | Flange | |
|
|
|

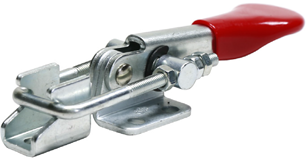

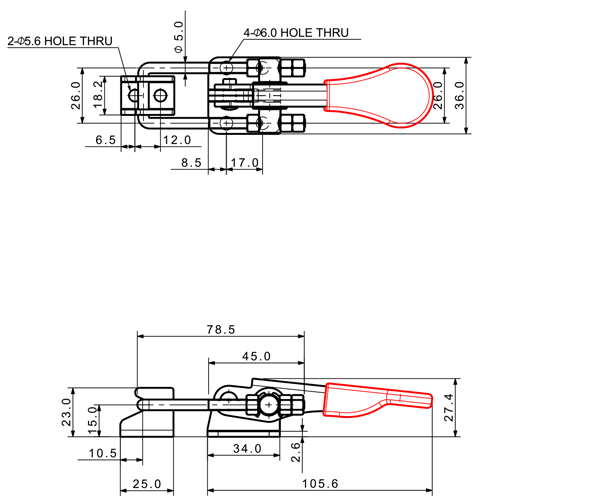

Model No. KJF-025-41F
| Holding Capacity(kgf) | Weight(g) | U-bolt Adjust.(mm) | Base Type | 2D | 3D | 주문 | |
|---|---|---|---|---|---|---|---|
| 250 | 165 | 24 | Flange | |
|
|
|

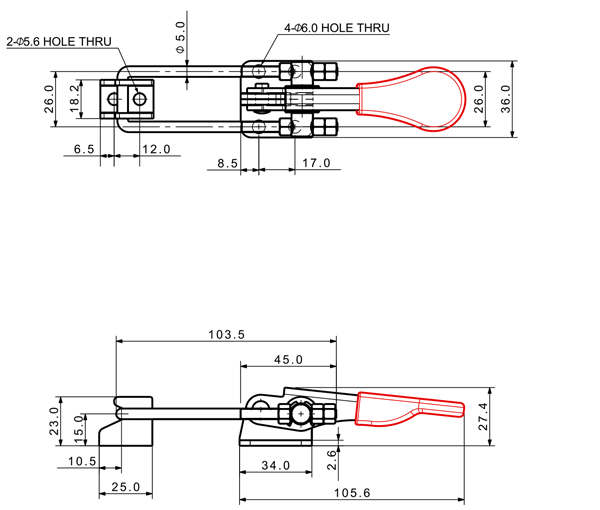

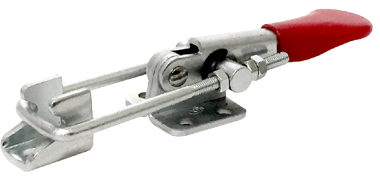

Model No. KJF-025-42F
| Holding Capacity(kgf) | Weight(g) | U-bolt Adjust.(mm) | Base Type | 2D | 3D | 주문 | |
|---|---|---|---|---|---|---|---|
| 250 | 169 | 24 | Flange | |
|
|
|

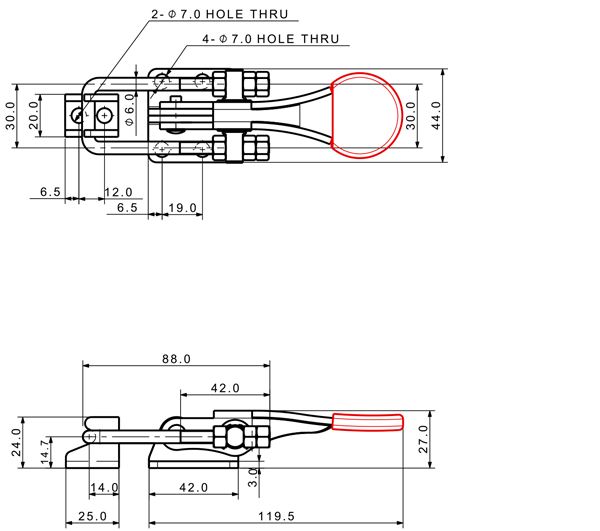

Model No. KJF-032-41FA
| Holding Capacity(kgf) | Weight(g) | U-bolt Adjust.(mm) | Base Type | 2D | 3D | 주문 | |
|---|---|---|---|---|---|---|---|
| 320 | 251 | 20 | Flange | |
|
|
|

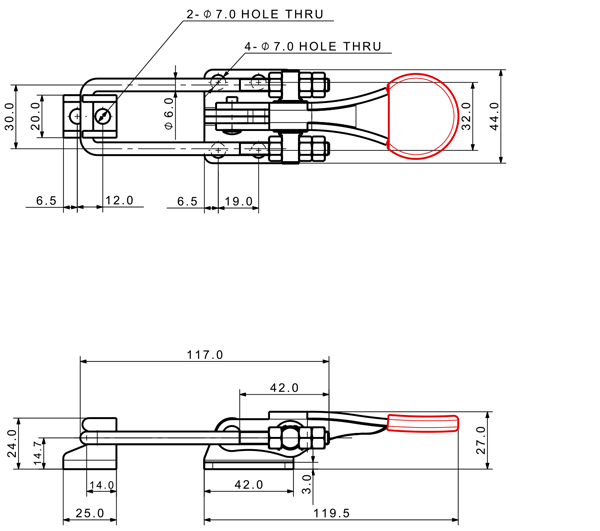

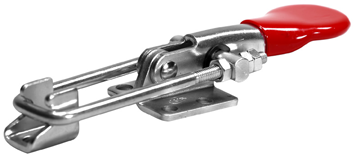

Model No. KJF-032-42FA
| Holding Capacity(kgf) | Weight(g) | U-bolt Adjust.(mm) | Base Type | 2D | 3D | 주문 | |
|---|---|---|---|---|---|---|---|
| 320 | 265 | 20 | Flange | |
|
|
|

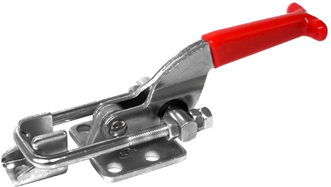

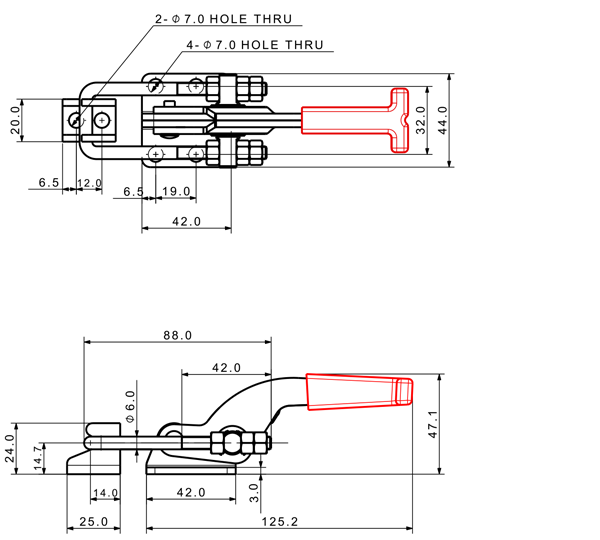

Model No. KJF-032-41FB
| Holding Capacity(kgf) | Weight(g) | U-bolt Adjust.(mm) | Base Type | 2D | 3D | 주문 | |
|---|---|---|---|---|---|---|---|
| 320 | 258 | 20 | Flange | |
|
|
|

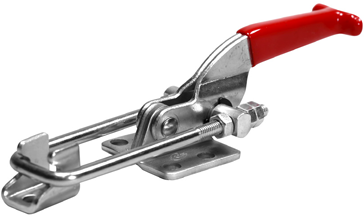

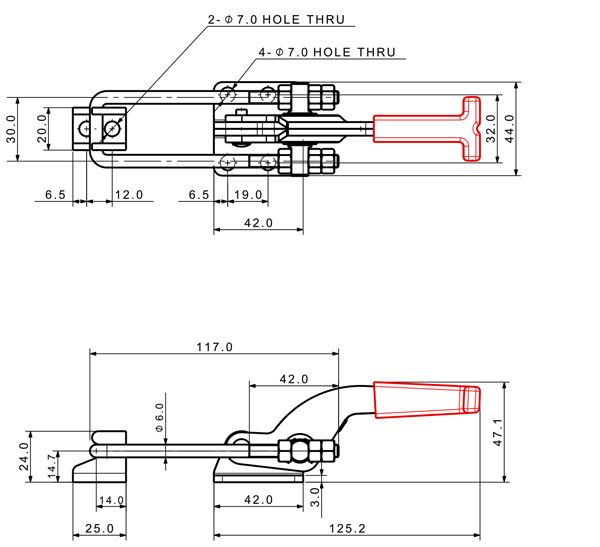

Model No. KJF-032-42FB
| Holding Capacity(kgf) | Weight(g) | U-bolt Adjust.(mm) | Base Type | 2D | 3D | 주문 | |
|---|---|---|---|---|---|---|---|
| 320 | 269 | 20 | Flange | |
|
|
|

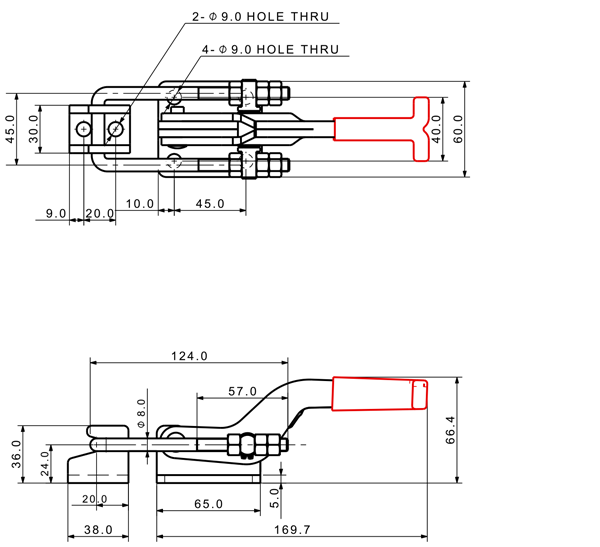

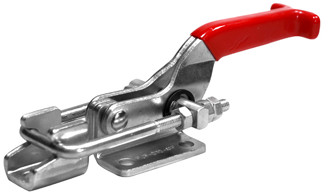

Model No. KJF-070-41F
| Holding Capacity(kgf) | Weight(g) | U-bolt Adjust.(mm) | Base Type | 2D | 3D | 주문 | |
|---|---|---|---|---|---|---|---|
| 700 | 778 | 30 | Flange | |
|
|
|

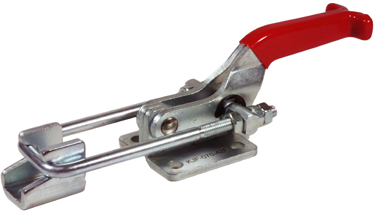

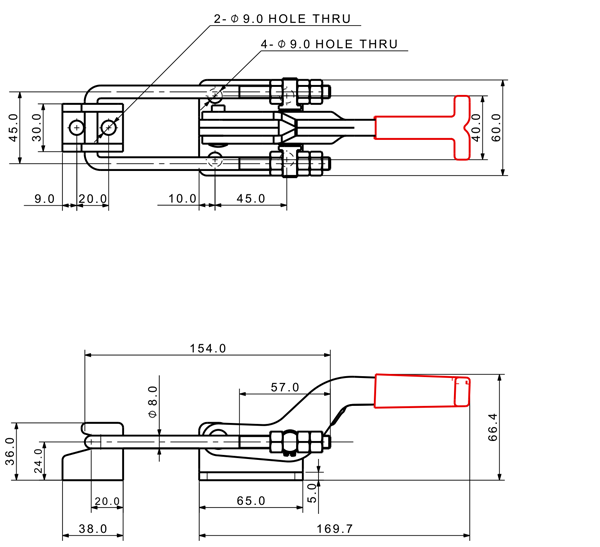

Model No. KJF-070-42F
| Holding Capacity(kgf) | Weight(g) | U-bolt Adjust.(mm) | Base Type | 2D | 3D | 주문 | |
|---|---|---|---|---|---|---|---|
| 700 | 800 | 30 | Flange | |
|
|
|

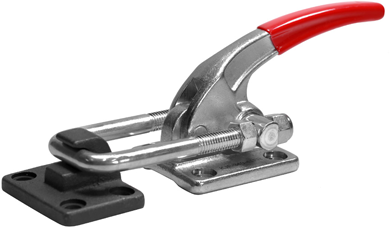

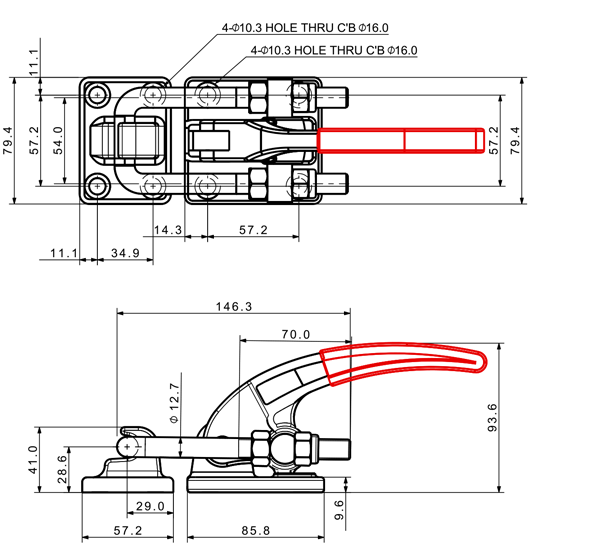

Model No. KJF-340-41FR
| Holding Capacity(kgf) | Weight(g) | U-bolt Adjust.(mm) | Base Type | 2D | 3D | 주문 | |
|---|---|---|---|---|---|---|---|
| 3400 | 1980 | 29 | Flange | |
|
|
|

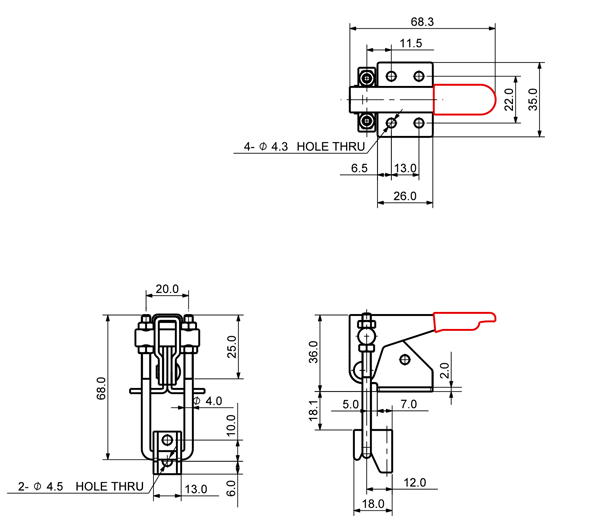

Model No. KJF-016-43F
| Holding Capacity(kgf) | Weight(g) | U-bolt Adjust.(mm) | Base Type | 2D | 3D | 주문 | |
|---|---|---|---|---|---|---|---|
| 160 | 102 | 10 | Flange | |
|
|
|

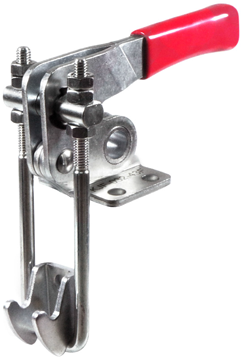

Model No. KJF-032-43F
| Holding Capacity(kgf) | Weight(g) | U-bolt Adjust.(mm) | Base Type | 2D | 3D | 주문 | |
|---|---|---|---|---|---|---|---|
| 320 | 320 | 20 | Flange | |
|
|
|

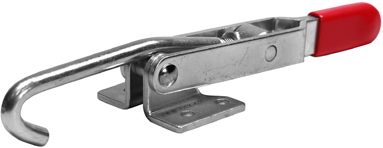

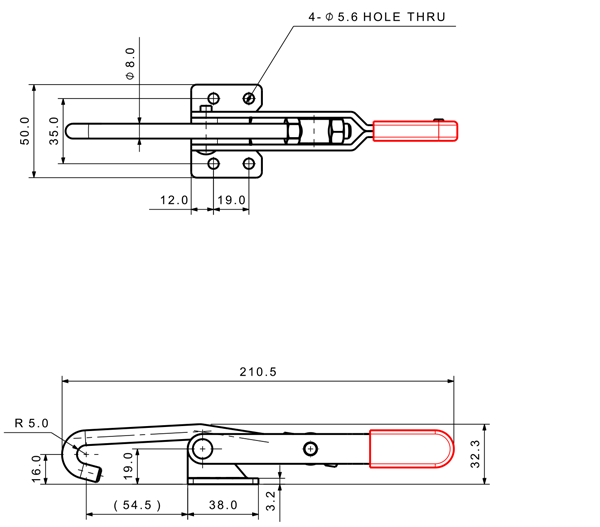

Model No. KJF-017-41F
| Holding Capacity(kgf) | Weight(g) | U-bolt Adjust.(mm) | Base Type | 2D | 3D | 주문 | |
|---|---|---|---|---|---|---|---|
| 170 | 269 | 15 | Flange | |
|
|
|

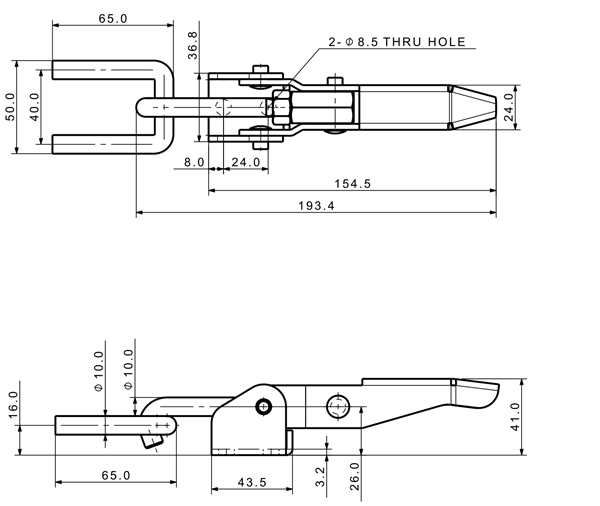

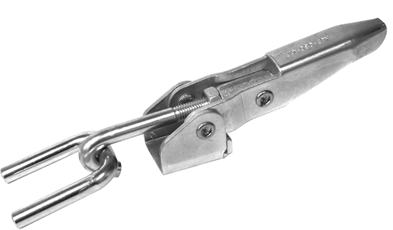

Model No. KJF-030-41F
| Holding Capacity(kgf) | Weight(g) | U-bolt Adjust.(mm) | Base Type | 2D | 3D | 주문 | |
|---|---|---|---|---|---|---|---|
| 300 | 482 | 20 | Flange | |
|
|
|

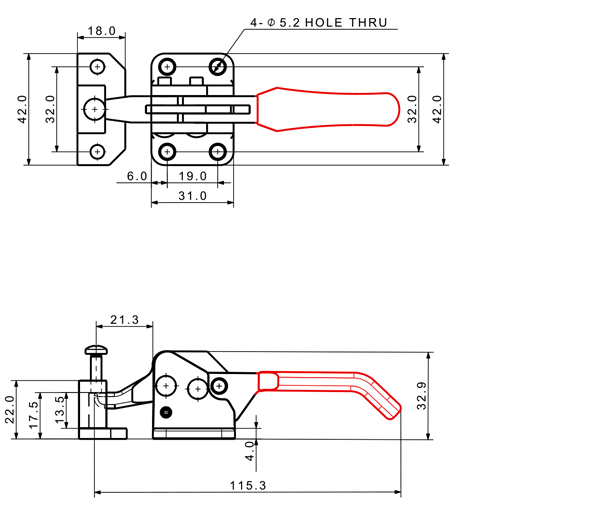

Model No. KJF-022-51FR
| Holding Capacity(kgf) | Weight(g) | U-bolt Adjust.(mm) | Base Type | 2D | 3D | 주문 | |
|---|---|---|---|---|---|---|---|
| 220 | 202 | N/A | Flange | |
|
|
|
