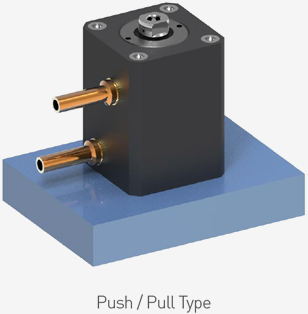

Push/Pull Vertical Type Block Clamp

YOU CAN COUNT ON OUR EXPERTISE

Piping Method
Features
  • 복동
  • 다양한 사이즈
  • 설치 용이
  • 내경범위 : ø20~80
  • 작동압력 : 15~250kgf/㎠
  • 피스톤속도 : 8~100mm/s
  • 사용온도 : 0~60℃
Model No.
  • 1
    Clamp Type
    BDV = Block Clamp, Double(Push/Pull)-acting, Vertical type
    BPV = Block Clamp, Single(Push)-acting , Vertical type
  • 2
    Piston Diameter
    ex ) 28 = Ø28
  • 3
    Pistion Rod Stroke
    ex ) 15 = 15mm
BLOCK CLAMP PUSH/PULL VERTICAL TYPE
  • BDV-2010
  • BDV-2510
  • BDV-2815
  • BDV-3215
  • BDV-4015
  • BDV-5015
  • BDV-6315
  • BDV-8015
Specifications
MODEL NO. Max.Clamping Force (Ton) Effective Area (㎠) Oil Capacity (㎤) Weight(kg) Operating Pressure Range Operating Temperature Range
Push Pull Push Pull Push Pull
BDV-2010 0.79 0.50 3.1 2.0 3.1 2.0 0.69 15~250 kgf/㎠ 0~60℃
BDV-2015 4.7 3.0 0.76
BDV-2020 6.3 4.0 0.82
BDV-2025 7.9 5.0 0.88
BDV-2030 9.4 6.0 0.95
BDV-2510 1.23 0.84 4.9 3.4 4.9 3.4 0.94
BDV-2515 7.4 5.1 1.02
BDV-2520 9.8 6.7 1.09
BDV-2525 12.3 8.4 1.18
BDV-2530 14.7 10.1 1.26
BDV-2815 1.52 1.02 6.1 4.1 9.3 6.2 1.5
BDV-2825 15.4 10.4 1.7
BDV-2850 30.8 20.7 2.3
BDV-3215 2.00 1.37 8.0 5.5 12.0 8.2 1.8
BDV-3225 20.1 13.7 2.1
BDV-3250 40.2 27.5 2.8
BDV-4015 3.12 2.15 12.5 8.6 18.9 12.9 2.3
BDV-4025 31.4 21.6 2.5
BDV-4050 62.8 43.1 3.3
BDV-5015 4.95 3.40 19.6 13.4 49.5 20.2 3.3
BDV-5025 49.1 33.7 3.6
BDV-5050 98.2 67.4 4.5
BDV-6315 7.77 5.32 31.1 21.3 46.8 31.8 4.7
BDV-6325 78.0 53.2 5.2
BDV-6350 155.9 106.4 6.3
BDV-8015 12.55 8.60 50.2 34.4 75.4 51.5 10.5
BDV-8025 125.7 85.9 11.5
BDV-8050 251.4 171.8 14.3
BDV-100xx 19.63 13.47 78.5 53.9 - - -
BDV-125xx 30.67 22.38 122.7 89.5 - - -

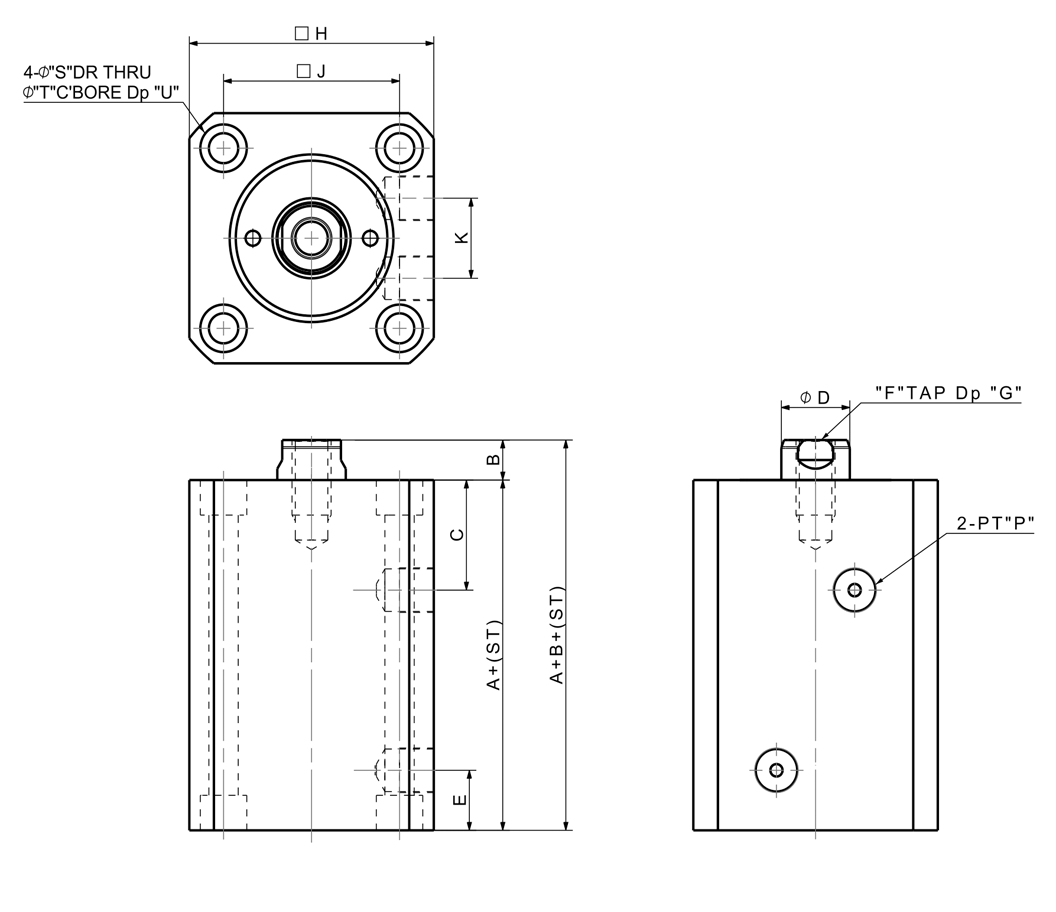

MODEL NO. DIMENSIONS (mm) 주문
A B C øD E F G H J K P S T U Piston Dia. 2D 3D PDF
BDV-2010 43 8 20.5 12 12 M8 x 1.25P 16 44 30 0 1/8 5.5 9.5 7 ø20
BDV-2015 43 8 20.5 12 12 M8 x 1.25P 16 44 30 0 1/8 5.5 9.5 7 ø20
BDV-2020 43 8 20.5 12 12 M8 x 1.25P 16 44 30 0 1/8 5.5 9.5 7 ø20
BDV-2025 43 8 20.5 12 12 M8 x 1.25P 16 44 30 0 1/8 5.5 9.5 7 ø20
BDV-2030 43 8 20.5 12 12 M8 x 1.25P 16 44 30 0 1/8 5.5 9.5 7 ø20
BDV-2510 45 8 22 14 12 M8 x 1.25P 16 50 36 16 1/8 5.5 9.5 5.5 ø25
BDV-2515 45 8 22 14 12 M8 x 1.25P 16 50 36 16 1/8 5.5 9.5 5.5 ø25
BDV-2520 45 8 22 14 12 M8 x 1.25P 16 50 36 16 1/8 5.5 9.5 5.5 ø25
BDV-2525 45 8 22 14 12 M8 x 1.25P 16 50 36 16 1/8 5.5 9.5 5.5 ø25
BDV-2530 45 8 22 14 12 M8 x 1.25P 16 50 36 16 1/8 5.5 9.5 5.5 ø25
BDV-2815 50 8 23 16 12 M8 x 1.25P 12 56 42 16 1/8 5.5 9.5 5.5 ø28
BDV-2825 50 8 23 16 12 M8 x 1.25P 12 56 42 16 1/8 5.5 9.5 5.5 ø28
BDV-2850 50 8 23 16 12 M8 x 1.25P 12 56 42 16 1/8 5.5 9.5 5.5 ø28
BDV-3215 54 10 26 18 12.5 M10x 1.5P 15 62 47 20 1/4 6.6 11 6.5 ø32
BDV-3225 54 10 26 18 12.5 M10x 1.5P 15 62 47 20 1/4 6.6 11 6.5 ø32
BDV-3250 54 10 26 18 12.5 M10x 1.5P 15 62 47 20 1/4 6.6 11 6.5 ø32
BDV-4015 55 10 27 22.4 12 M12x1.75P 20 70 52 20 1/4 9 14 9 ø40
BDV-4025 55 10 27 22.4 12 M12x1.75P 20 70 52 20 1/4 9 14 9 ø40
BDV-4050 55 10 27 22.4 12 M12x1.75P 20 70 52 20 1/4 9 14 9 ø40
BDV-5015 60 10 29 28 13 M16x 2.0P 25 80 58 20 1/4 11 17.5 11 ø50
BDV-5025 60 10 29 28 13 M16x 2.0P 25 80 58 20 1/4 11 17.5 11 ø50
BDV-5050 60 10 29 28 13 M16x 2.0P 25 80 58 20 1/4 11 17.5 11 ø50
BDV-6315 67 13 31.5 35.5 15 M20x 2.5P 33 94 69 20 1/4 14 20 13 ø63
BDV-6325 67 13 31.5 35.5 15 M20x 2.5P 33 94 69 20 1/4 14 20 13 ø63
BDV-6350 67 13 31.5 35.5 15 M20x 2.5P 33 94 69 20 1/4 14 20 13 ø63
BDV-8015 78 17 33 45 20 M24x 3.0P 33 114 86 30 3/8 16 23 16 ø80
BDV-8025 78 17 33 45 20 M24x 3.0P 33 114 86 30 3/8 16 23 16 ø80
BDV-8050 78 17 33 45 20 M24x 3.0P 33 114 86 30 3/8 16 23 16 ø80
BDV-100xx 88 20 41.5 56 22.5 M36 x 4.0P 40 136 102 46 3/8 20 29 20 ø100
BDV-125xx 102 25 43 65 25 M42 x 4.5P 45 163 124 52 1/2 21 31 22 ø125
