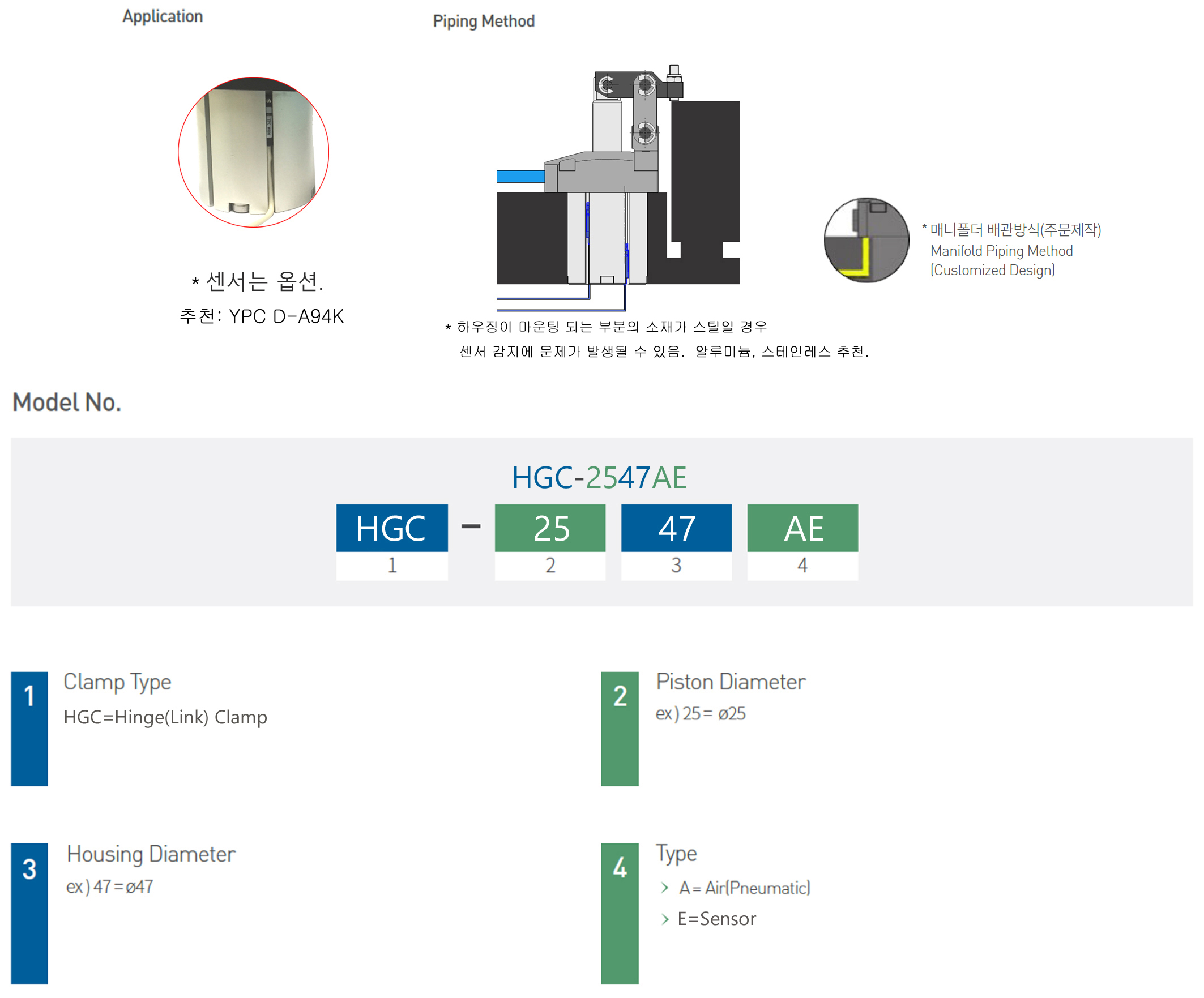

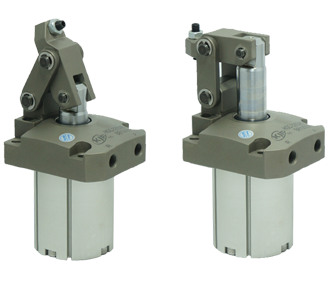

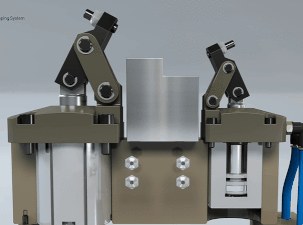

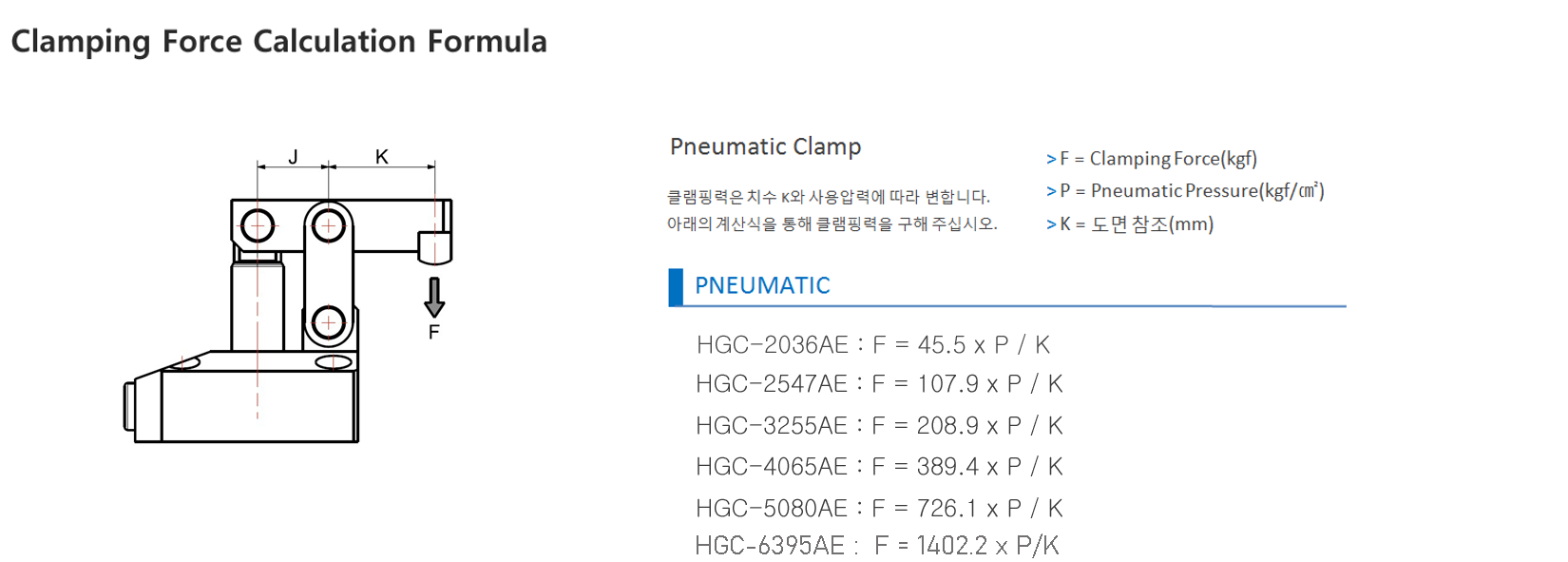

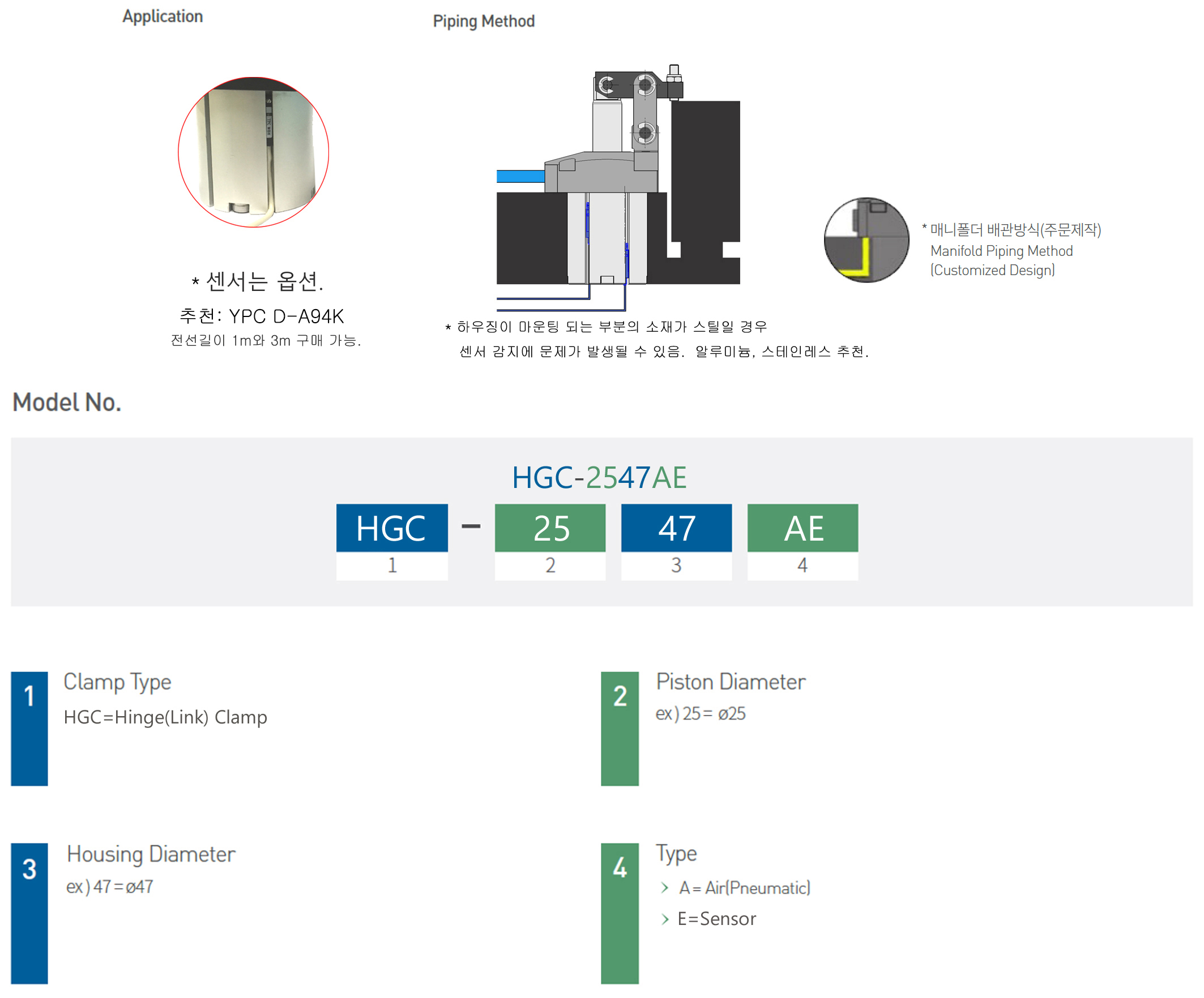

| Model No. | Clamping Force(kgf) | Piston Diameter(ø) |
Effective Area(㎠) |
Stroke(mm) | Operating Pressure Range (kgf/㎠) |
Operating Temperature Range(℃) |
Weight (kg) |
||
|---|---|---|---|---|---|---|---|---|---|
| @5kgf/㎠ | Total | Clamp | Extra | ||||||
| HGC-2036AE | 12 | 20 | 3.14 | 18.5 | 16.0 | 2.5 | 3~9.99 | 0~60 | 0.60 |
| HGC-2547AE | 31 | 25 | 4.9 | 24.0 | 21.5 | 2.5 | 1.51 | ||
| HGC-3255AE | 52 | 32 | 8.04 | 28.0 | 25.5 | 2.5 | 2.27 | ||
| HGC-4065AE | 78 | 40 | 12.56 | 33.0 | 30.0 | 3.0 | 3.41 | ||
| HGC-5080AE | 125 | 50 | 19.63 | 39.0 | 36.0 | 3.0 | 5.78 | ||
| HGC-6395AE | 200 | 63 | 31.16 | 50.0 | 47.0 | 3.0 | 7.0 | ||

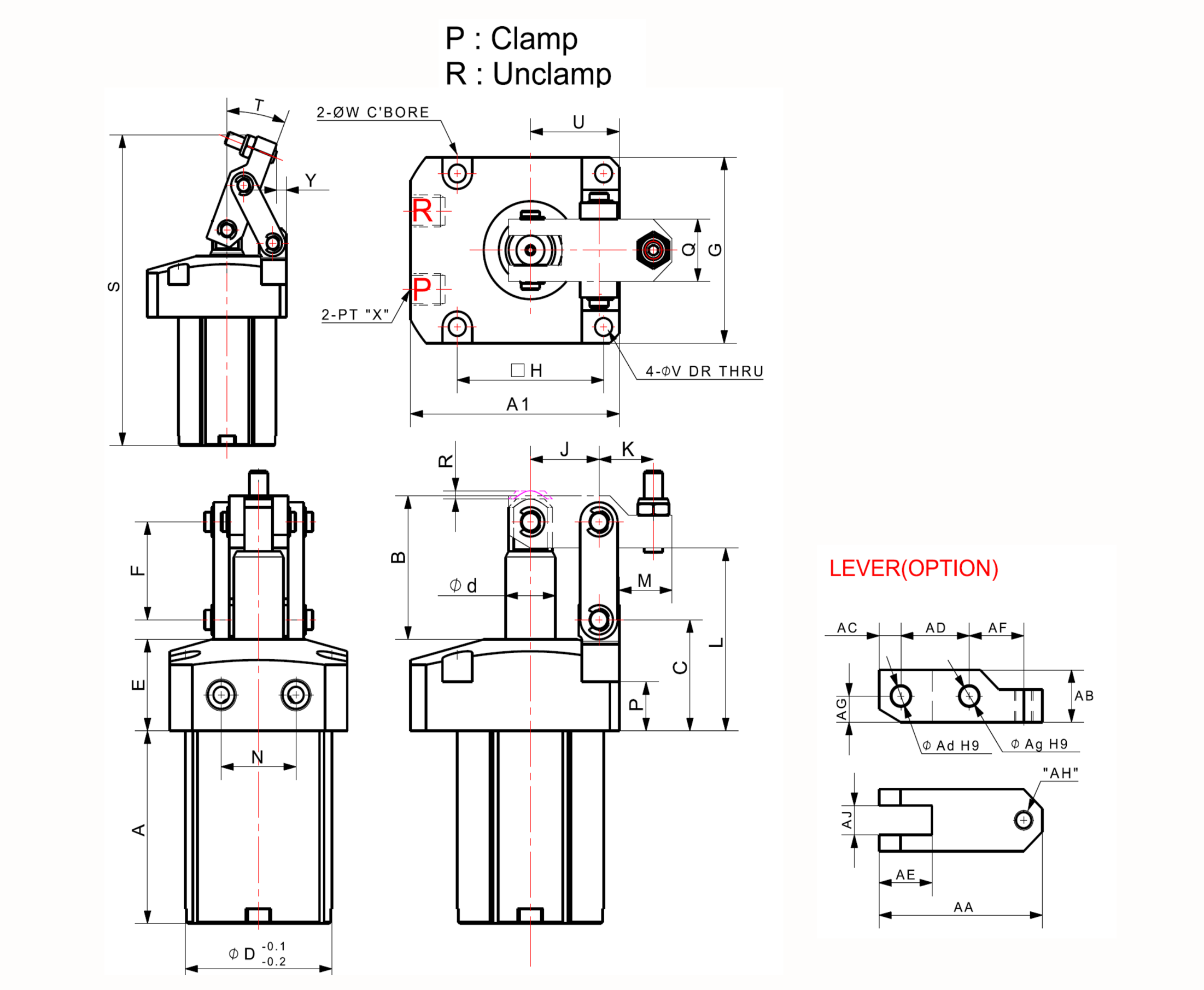

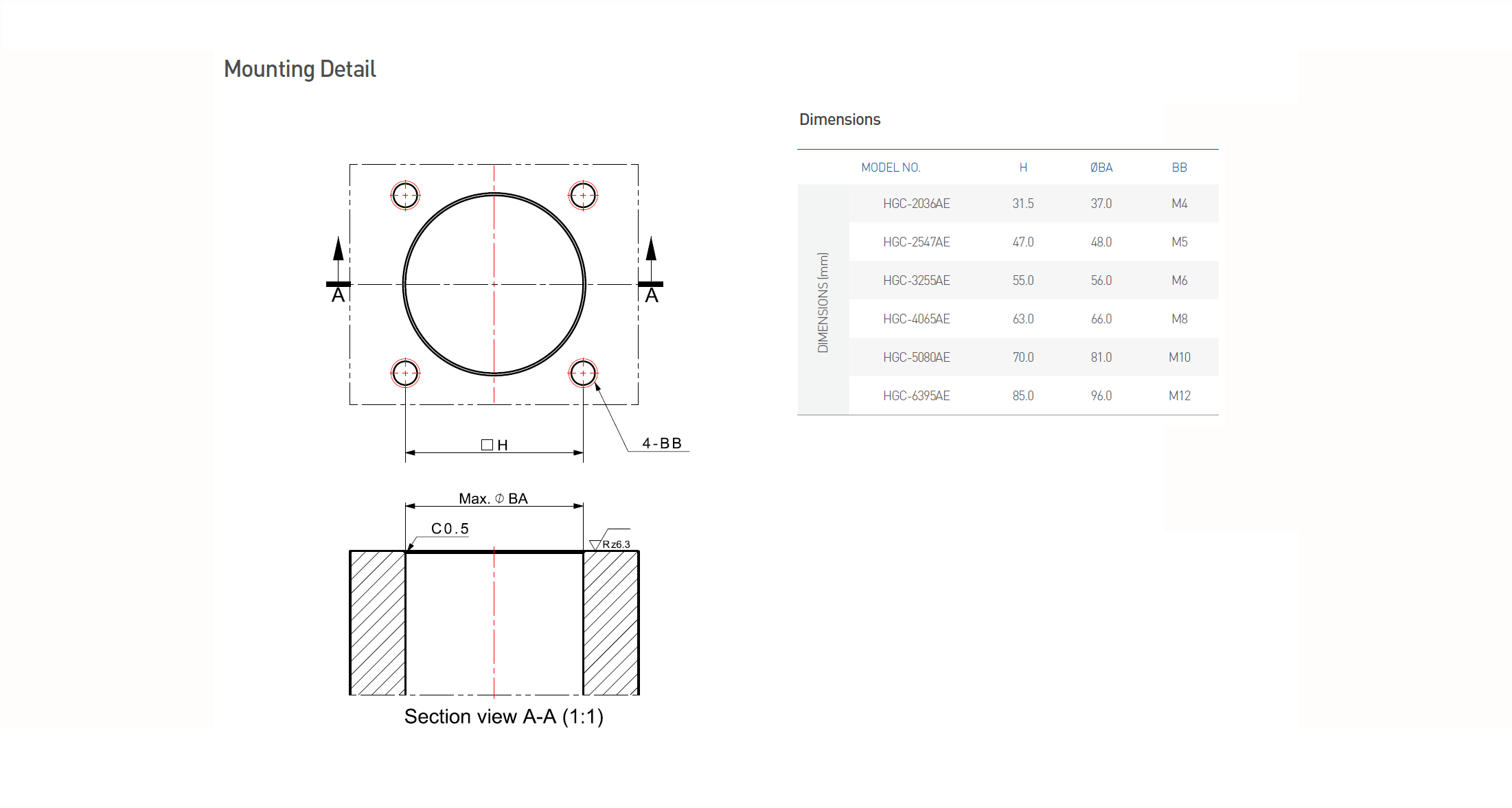

| MODEL NO | 주문 | Download | Dimensions(mm) | |||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2D | 3D | A | A1 | B | C | øD | ød | E | F | G | H | J | K | L | M | N | P | Q | R | S | T | U | V | W | X | Y | AA | AB | AC | AD | AE | AF | AG | AH | AJ | øAd | øAg | |||
| HGC-2036AE |  |
 |
 |
 |
41.0 | 49.0 | 30.5 | 28.0 | 36.0 | 10.0 | 23.0 | 20.0 | 40.0 | 31.5 | 14.5 | 19.0 | 41.0 | 18.5 | 16.0 | 14.0 | 10.0 | 2.5 | 105.3 | 19.6° | 20.0 | 4.5 | 7.5 | PT1/8 | 2.9 | 43.0 | 12.5 | 4.5 | 14.5 | 10.0 | 19.0 | 4.5 | M5 | 5.0 | 5.0 | 5.0 |
| HGC-2547AE | |
|
|
|
59.0 | 67.0 | 44.0 | 34.0 | 47.0 | 16.0 | 28.0 | 30.0 | 57.0 | 47.0 | 22.0 | 17.5 | 56.0 | 17.0 | 24.0 | 15.0 | 19.0 | 2.5 | 142.7 | 21.2° | 28.5 | 5.5 | 9.5 | PT1/8 | 4.6 | 52.5 | 16.0 | 7.0 | 22.0 | 17.0 | 17.5 | 8.0 | M6 | 9.0 | 6.0 | 6.0 |
| HGC-3255AE | |
|
|
|
63.0 | 78.0 | 55.0 | 41.0 | 55.0 | 20.0 | 28.0 | 33.0 | 70.0 | 55.0 | 26.0 | 20.0 | 65.5 | 17.0 | 30.0 | 15.0 | 22.0 | 2.5 | 158.4 | 23° | 35.5 | 6.6 | 11.0 | PT1/8 | 6.4 | 60.0 | 18.0 | 8.0 | 26.0 | 19.5 | 20.0 | 9.0 | M6 | 11.0 | 6.0 | 8.0 |
| HGC-4065AE | |
|
|
|
72.0 | 91.0 | 64.0 | 42.0 | 65.0 | 25.0 | 30.0 | 41.0 | 78.0 | 63.0 | 31.0 | 25.0 | 72.0 | 22.0 | 33.0 | 15.0 | 26.0 | 3.0 | 182.3 | 23.3° | 42.0 | 9.0 | 14.0 | PT1/4 | 6.6 | 72.0 | 22.0 | 8.0 | 31.0 | 23.0 | 25.0 | 11.0 | M8 | 11.0 | 8.0 | 10.0 |
| HGC-5080AE | |
|
|
|
85.0 | 108.0 | 49.0 | 76.0 | 49.0 | 32.0 | 35.0 | 48.0 | 88.0 | 70.0 | 37.0 | 29.0 | 83.0 | 26.0 | 35.0 | 18.0 | 30.0 | 3.0 | 213.9 | 24.2° | 50.0 | 11.0 | 18.0 | PT1/4 | 6.1 | 86.0 | 28.0 | 10.0 | 37.0 | 28.0 | 29.0 | 14.0 | M10 | 13.0 | 10.0 | 12.0 |
| HGC-6395AE | |
|
|
|
97.0 | 129.0 | 92.0 | 54.0 | 95.0 | 40.0 | 36.0 | 56.0 | 106.0 | 85.0 | 45.0 | 35.0 | 92.0 | 30.0 | 40.0 | 18.0 | 38.0 | 3.0 | 244.0 | 25.3 | 62.0 | 13.0 | 20.0 | PT1/4 | 6.5 | 104.0 | 36.0 | 12.0 | 45.0 | 36.0 | 35.0 | 18.0 | M10 | 17.0 | 12.0 | 16.0 |
