Top Flange Type Swing Clamp

YOU CAN COUNT ON OUR EXPERTISE

Features

나사산 하우징
니플 배관형
가스켓 배관형
레버 교환 용이

내경범위 : ø25~55
작동범위 : 20~150kgf/㎠
사용온도 : 0~60℃
레버는 옵션

1

Clamp Type

SDR = SWING RIGHT

SDL = SWING LEFT
2

Piston Diameter

ex ) 25 = Ø25
3

Pistion Rod Stroke

ex ) 22 = 22mm

4

Type

P = Pin Hole Rod

G = Gasket

GP = Gasket + Pin Hole Rod

GV = Gasket + Flow control valve

GPV = Gasket + Pin Hole Rod + Flow Control Valve

* V: Meter-In Method/W: Meter-Out Method

No sign = Standard
5

Swing Angle

No sign = 90°

ex) 30 = 30°

SWING CLAMP TOP FLANGE TYPE

SDR/L-2522
SDR/L-3030
SDR/L-4045
SDR/L-5555

Model No.	Type	Max. Cylinder Force(kgf)	Piston Diameter(ø)	Effective Area(㎠)	Stroke(mm)			Oil Capacity(㎤) at Clamping	Swing Angle Tolerance (Repeated Accuracy)	Operating Pressure Range (kgf/㎠)	Operating Temperature Range(℃)	Weight (kg)
Model No.	Type	Max. Cylinder Force(kgf)	Piston Diameter(ø)	Effective Area(㎠)	Swing	Straight	Total	Oil Capacity(㎤) at Clamping	Swing Angle Tolerance (Repeated Accuracy)	Operating Pressure Range (kgf/㎠)	Operating Temperature Range(℃)	Weight (kg)
SDR/L-2522	Standard	354	25	2.36	12	10	22	5.20	±3° (±0.5°)	20~150	0~60	1.40
SDR/L-2522	G	354	25	2.36	12	10	22	5.20				1.40
SDR/L-3030	Standard	470	30	3.13	16	14	30	9.38				2.40
SDR/L-3030	G	470	30	3.13	16	14	30	9.38				2.40
SDR/L-4045	Standard	962	40	6.41	16	29	45	28.83				4.20
SDR/L-4045	G	962	40	6.41	16	29	45	28.83				4.20
SDR/L-5555	Standard	2120	55	14.13	25	30	55	77.72				8.90
SDR/L-5555	G	2120	55	14.13	25	30	55	77.72				8.90

클램프력 그래프(클릭!)

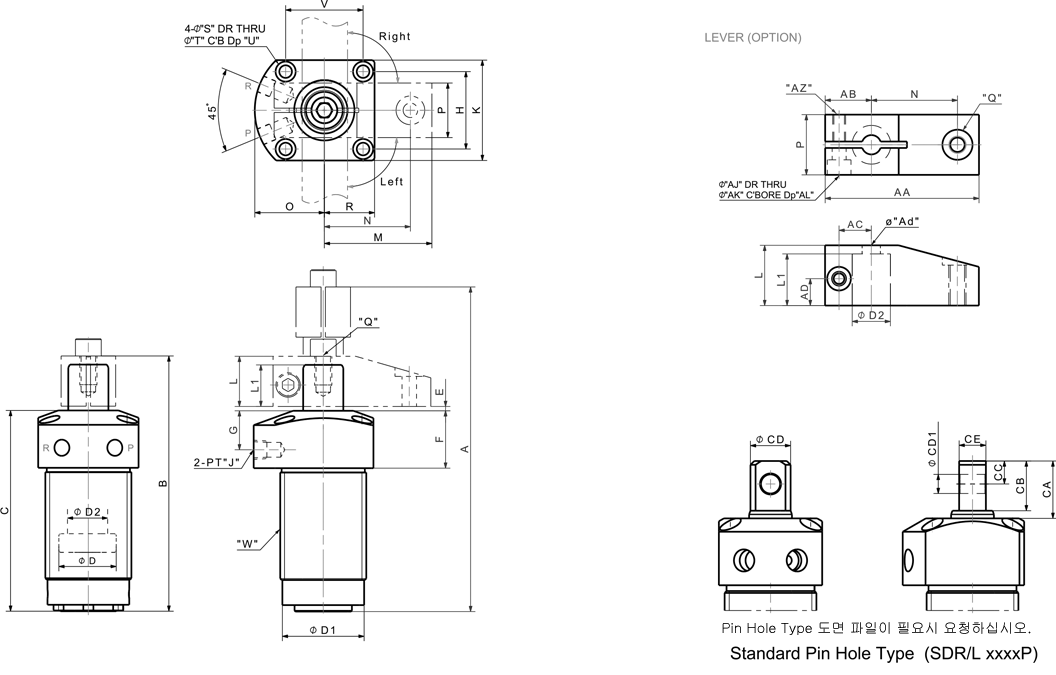

- Standard Type

MODEL NO		주문	Download			Dimensions(mm)
MODEL NO		주문	2D	3D	PDF	A	B	C	øD	øD1	øD2	E	F	G	H	J	K	L	L1	M	N	O	P	Q	R	S	T	U	V	W	AA	AB	AC	AD	øAd	AJ	AK	AL	AZ	CA	CB	CC	øCD1	øCD	CE
SDR/L-2522						152	130	99	25	37	18	3	30	21	42	PT 1/8	55	28	24	50	40	32	28	M8x1.25P	19	6.5	11	15	25	M40x1.5P	71.5	21.5	15	12.5	9	6.5	11	7	M6	27	22.5	10	8	17	12
SDR/L-3030						188	158	123	30	45.5	22.4	3	35	22	42	PT 1/4	54	32	27	60	50	36.5	32	M10x1.5P	27	6.5	11	15	42	M48x1.5P	88	28	19	14	11	9	14	9	M8	30	26	12	10	21	14
SDR/L-4045						223	178	140	40	57	28	3	40	26	54	PT 1/4	70	35	29	75	60	48.5	38	M12x1.75P	35	9	14	20	54	M60x1.5P	110	35	24.5	15	13	11	17	11	M12	34	31	14	12	26.5	18
SDR/L-5555						280	225	182	55	76	35	3	45	30	70	PT 3/8	89	40	34	90	70	59	60	M16x2.0P	44.5	11	17	25	70	M80x2.0P	130	40	28	17	17	11	17	20	M16	43	38	18	16	33	22

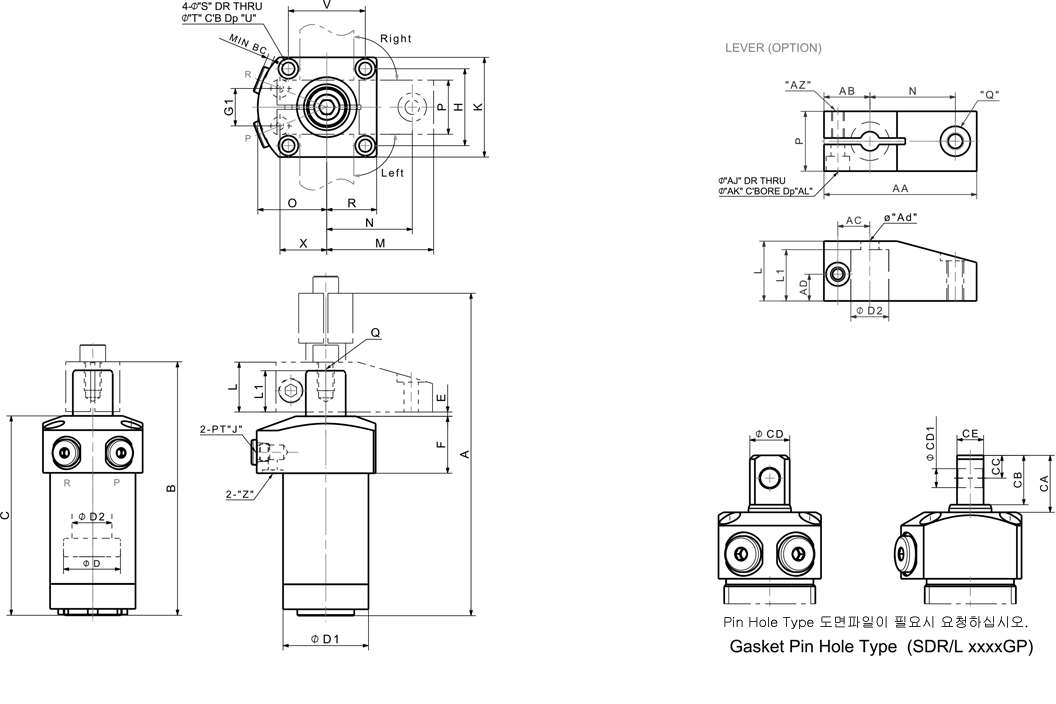

MODEL NO		주문	Download			Dimensions(mm)
MODEL NO		주문	2D	3D	PDF	A	B	C	øD	øD1	øD2	E	F	G1	H	J	K	L	L1	M	N	O	P	Q	R	S	T	U	V	X	Z	AA	AB	AC	AD	øAd	AJ	AK	AL	AZ	BC	CA	CB	CC	øCD1	øCD	CE
SDR/L-2522G						152	130	99	25	37	18	3	30	20	42	PT 1/8	55	28	24	50	40	32	28	M8x1.25P	19	6.5	11	15	25	23	P6	71.5	21.5	15	12.5	9	6.5	11	7	M6	3.9	27	22.5	10	8	17	12
SDR/L-3030G						188	158	123	30	45.5	22.4	3	35	23	42	PT 1/4	54	32	27	60	50	36.5	32	M10x1.5P	27	6.5	11	15	42	25.5	P6	88	28	19	14	11	9	14	9	M8	3.3	30	26	12	10	21	14
SDR/L-4045G						223	178	140	40	57	28	3	40	31	54	PT 1/4	70	35	29	75	60	48.5	38	M12x1.75P	35	9	14	20	54	35	P6	110	35	24.5	15	13	11	17	11	M12	3.3	34	31	14	12	26.5	18
SDR/L-5555G						280	225	182	55	76	35	3	45	35	70	PT 3/8	89	40	34	90	70	59	60	M16x2.0P	44.5	11	17	25	70	43	P10	130	40	28	17	17	11	17	20	M16	1.8	43	38	18	16	33	22

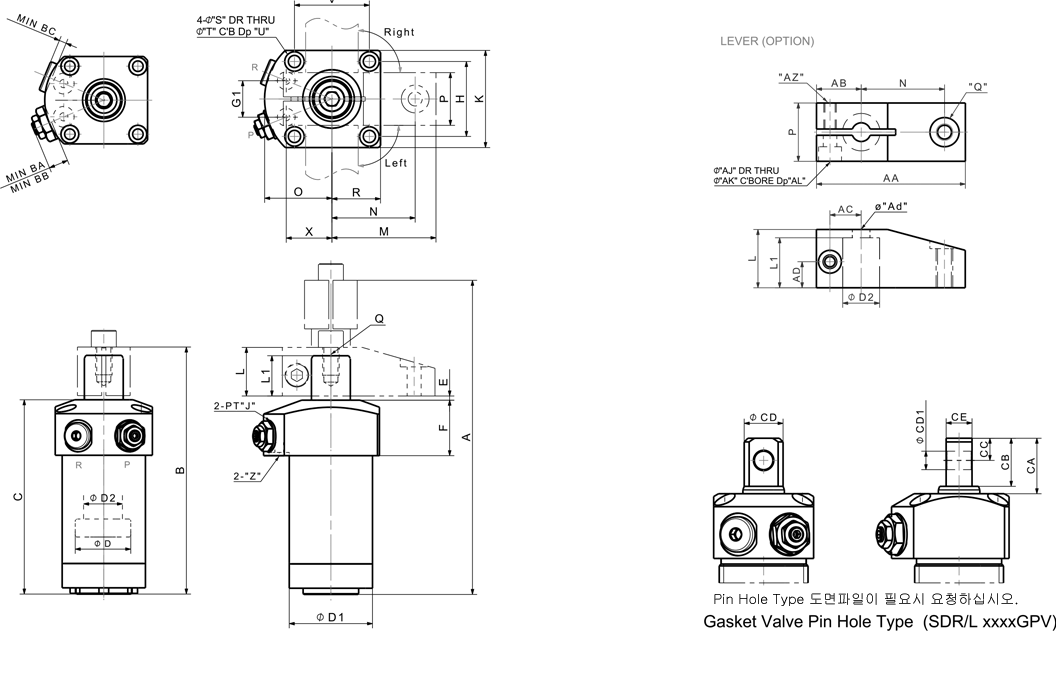

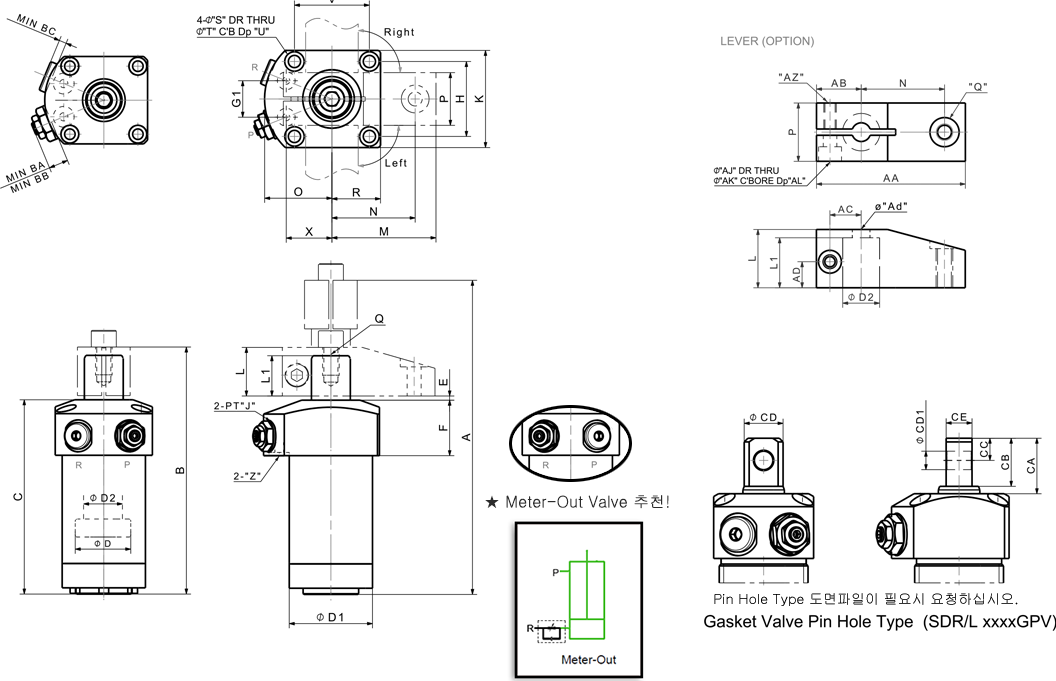

MODEL NO		주문	Download			Dimensions(mm)
MODEL NO		주문	2D	3D	PDF	A	B	C	øD	øD1	øD2	E	F	G1	H	J	K	L	L1	M	N	O	P	Q	R	S	T	U	V	X	Z	AA	AB	AC	AD	øAd	AJ	AK	AL	AZ	BA	BB	BC	CA	CB	CC	øCD1	øCD	CE
SDR/L-2522GV						152	130	99	25	37	18	3	30	20	42	PT 1/8	55	28	24	50	40	32	28	M8x1.25P	19	6.5	11	15	25	23	P6	71.5	21.5	15	12.5	9	6.5	11	7	M6	7.2	13.7	3.9	27	22.5	10	8	17	12
SDR/L-3030GV						188	158	123	30	45.5	22.4	3	35	23	42	PT 1/4	54	32	27	60	50	36.5	32	M10x1.5P	27	6.5	11	15	42	25.5	P6	88	28	19	14	11	9	14	9	M8	7.2	16.8	3.3	30	26	12	10	21	14
SDR/L-4045GV						223	178	140	40	57	28	3	40	31	54	PT 1/4	70	35	29	75	60	48.5	38	M12x1.75P	35	9	14	20	54	35	P6	110	35	24.5	15	13	11	17	11	M12	7.2	16.8	3.3	34	31	14	12	26.5	18
SDR/L-5555GV						280	225	182	55	76	35	3	45	35	70	PT 3/8	89	40	34	90	70	59	60	M16x2.0P	44.5	11	17	25	70	43	P10	130	40	28	17	17	11	17	20	M16	5.7	15.3	1.8	43	38	18	16	33	22
