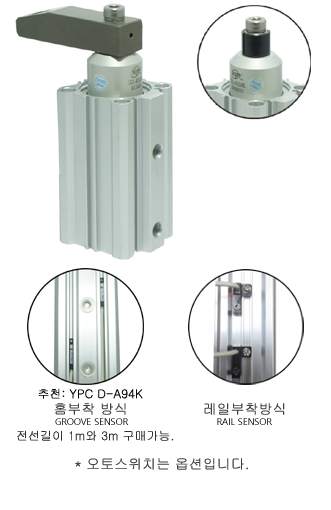

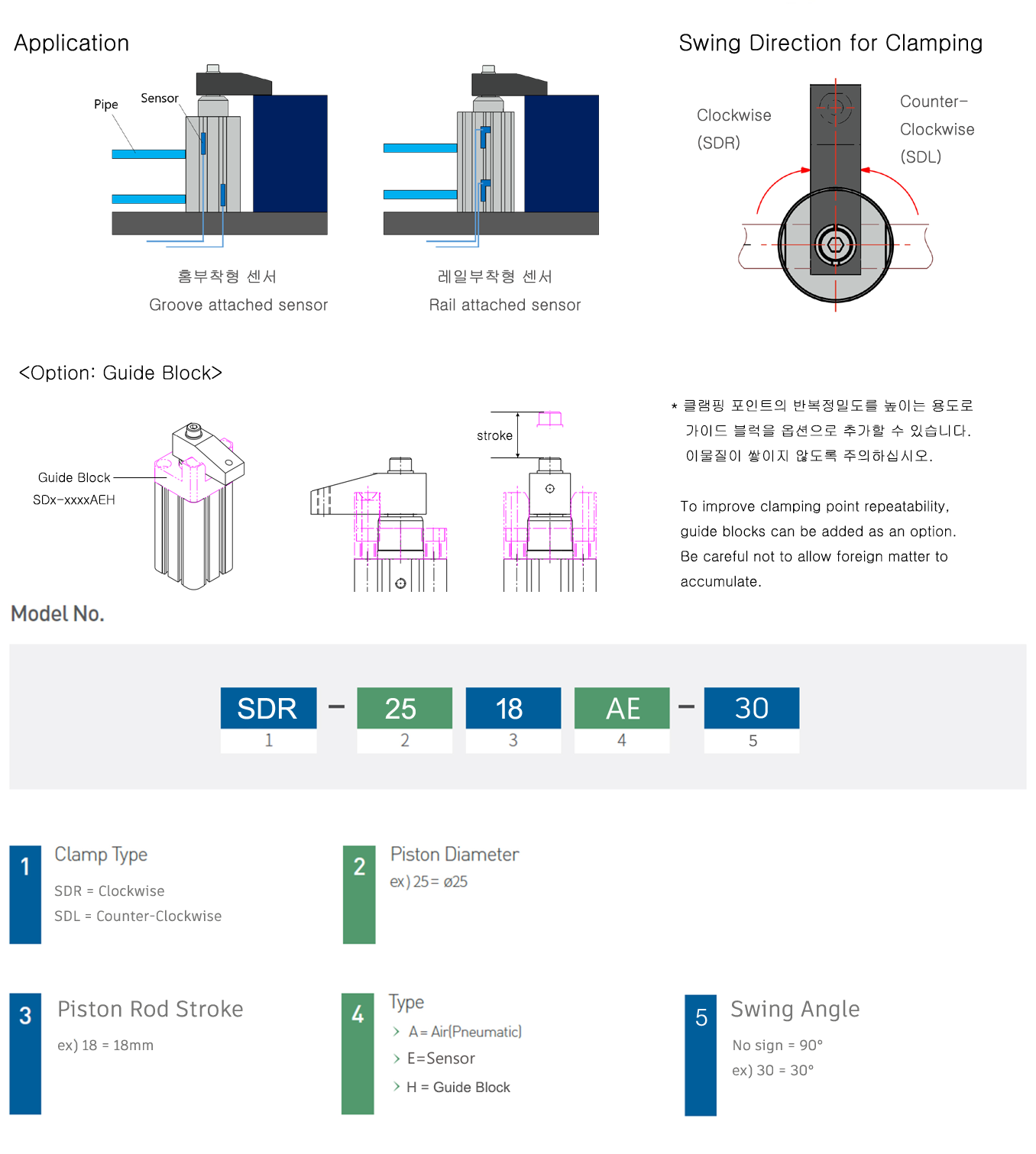

| Model No. | Cylinder Force(kgf) | Piston Diameter(ø) |
Effective Area(㎠) |
Stroke(mm) | Swing Angle Tolerance (Repeated Accuracy) |
Operating Pressure Range (kgf/㎠) |
Operating Temperature Range(℃) |
Weight (kg) |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Max. | Min. | Swing | Straight | Total | |||||||
| SD□-2018AE | 23.3 | 7.1 | 20 | 2.35 | 9 | 9 | 18 | ±3° (±0.5°) |
3~9.9 | 0~60 | 0.3 |
| SD□-2518AE | 40.8 | 12.4 | 25 | 4.12 | 8 | 10 | 18 | 0.5 | |||
| SD□-3225AE | 68.4 | 20.7 | 32 | 6.91 | 15 | 10 | 25 | 0.8 | |||
| SD□-4032AE | 106.9 | 32.4 | 40 | 10.79 | 17 | 15 | 32 | 1.3 | |||
| SD□-5032AE | 169.1 | 51.2 | 50 | 17.08 | 17 | 15 | 32 | 2.0 | |||
| SD□-6341AE | 227.4 | 84.0 | 63 | 28.0 | 18 | 23 | 41 | 2.4 | |||
| MODEL NO | Drawing Download | 주문 | ||
|---|---|---|---|---|
| 2D | 3D | |||
| SD□-2018AE |  |
 |
 |
 |
| SD□-2518AE | |
|
|
|
| SD□-3225AE | |
|
|
|
| SD□-4032AE | |
|
|
|
| SD□-5032AE | |
|
|
|
| SD□-6341AE | |
|
|
|
