HORIZONTAL TYPE

YOU CAN COUNT ON OUR EXPERTISE

Model No. KJF-002-21FR
Holding Capacity(kgf) Weight(g) Handle Move Arm Move Spindle Supplied Spindle Adjust.(mm) Arm Type Arm Length Base Type Base Height 2D 3D PDF
20 30 82˚ 75˚ M4 x 25.0L 9 U Short Flange Low
Model No. KJF-003-21F
* Obtained Certification of RoHS
Holding Capacity(kgf) Weight(g) Handle Move Arm Move Spindle Supplied Spindle Adjust.(mm) Arm Type Arm Length Base Type Base Height 2D 3D PDF
30 31 71˚ 80˚ M5 x 25.0L 12 U Short Flange Low
Model No. KJF-003-25F
Holding Capacity(kgf) Weight(g) Handle Move Arm Move Spindle Supplied Spindle Adjust.(mm) Arm Type Arm Length Base Type Base Height 2D 3D PDF
30 27 71˚ 80˚ M4 x 30.0L N/A Solid Short Flange Low
Model No. KJF-006-21F
* Stainless Steel : Available
Holding Capacity(kgf) Weight(g) Handle Move Arm Move Spindle Supplied Spindle Adjust.(mm) Arm Type Arm Length Base Type Base Height 2D 3D PDF
60 83 71˚ 80˚ M5 x 40.0L 25 U Short Flange Low
Model No. KJF-009-21F
* Stainless Steel : Available
Holding Capacity(kgf) Weight(g) Handle Move Arm Move Spindle Supplied Spindle Adjust.(mm) Arm Type Arm Length Base Type Base Height 2D 3D PDF
90 124 64˚ 79˚ M6 x 58.0L 36 U Short Flange Low
Model No. KJF-010-21F
Holding Capacity(kgf) Weight(g) Handle Move Arm Move Spindle Supplied Spindle Adjust.(mm) Arm Type Arm Length Base Type Base Height 2D 3D PDF
100 137 75˚ 67˚ M6 x 58.0L 30 U Short Flange Low

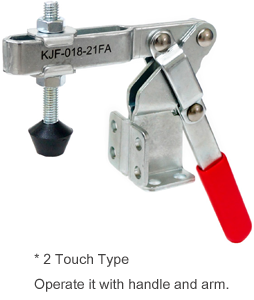

Model No. KJF-018-21FA
Holding Capacity(kgf) Weight(g) Handle Move Arm Move Spindle Supplied Spindle Adjust.(mm) Arm Type Arm Length Base Type Base Height 2D 3D PDF
180 441 57˚ 185˚ M8 x 77.0L 50 U Short Angle Low
Model No. KJF-022-21F
* Stainless Steel : Available
Holding Capacity(kgf) Weight(g) Handle Move Arm Move Spindle Supplied Spindle Adjust.(mm) Arm Type Arm Length Base Type Base Height 2D 3D PDF
220 257 68˚ 83˚ M8 x 67.0L 44 U Short Flange Low
Model No. KJF-023-21F
Holding Capacity(kgf) Weight(g) Handle Move Arm Move Spindle Supplied Spindle Adjust.(mm) Arm Type Arm Length Base Type Base Height 2D 3D PDF
230 394 70˚ 82˚ M8 x 77.0L 40 U Short Flange Low
Model No. KJF-023-22F
Holding Capacity(kgf) Weight(g) Handle Move Arm Move Spindle Supplied Spindle Adjust.(mm) Arm Type Arm Length Base Type Base Height 2D 3D PDF
230 426 70˚ 82˚ M8 x 77.0L 80 U Long Flange Low
Model No. KJF-030-21F
Holding Capacity(kgf) Weight(g) Handle Move Arm Move Spindle Supplied Spindle Adjust.(mm) Arm Type Arm Length Base Type Base Height 2D 3D PDF
300 621 87˚ 87˚ M10 x 90.0L 60 U Short Flange Low
Model No. KJF-040-21F
Holding Capacity(kgf) Weight(g) Handle Move Arm Move Spindle Supplied Spindle Adjust.(mm) Arm Type Arm Length Base Type Base Height 2D 3D PDF
400 661 58˚ 92˚ M10 x 90.0L 52 U Short Flange Low
Model No. KJF-040-22F
Holding Capacity(kgf) Weight(g) Handle Move Arm Move Spindle Supplied Spindle Adjust.(mm) Arm Type Arm Length Base Type Base Height 2D 3D PDF
400 710 58˚ 92˚ M10 x 90.0L 98 U Long Flange Low
Model No. KJF-040-23F
Holding Capacity(kgf) Weight(g) Handle Move Arm Move Spindle Supplied Spindle Adjust.(mm) Arm Type Arm Length Base Type Base Height 2D 3D PDF
400 734 58˚ 92˚ M10 x 90.0L 52 U Short Flange High
Model No. KJF-040-24F
Holding Capacity(kgf) Weight(g) Handle Move Arm Move Spindle Supplied Spindle Adjust.(mm) Arm Type Arm Length Base Type Base Height 2D 3D PDF
400 791 58˚ 92˚ M10 x 90.0L 98 U Long Flange High
Model No. KJF-065-21F
Holding Capacity(kgf) Weight(g) Handle Move Arm Move Spindle Supplied Spindle Adjust.(mm) Arm Type Arm Length Base Type Base Height 2D 3D PDF
650 1590 46˚ 92˚ M12 x 100.0L 45 U Short Flange Low
Model No. KJF-065-22F
Holding Capacity(kgf) Weight(g) Handle Move Arm Move Spindle Supplied Spindle Adjust.(mm) Arm Type Arm Length Base Type Base Height 2D 3D PDF
650 1670 46˚ 92˚ M12 x 100.0L 90 U Long Flange Low
Model No. KJF-065-23F
Holding Capacity(kgf) Weight(g) Handle Move Arm Move Spindle Supplied Spindle Adjust.(mm) Arm Type Arm Length Base Type Base Height 2D 3D PDF
650 1590 46˚ 92˚ M12 x 100.0L 45 U Short Flange High
Model No. KJF-065-24F
Holding Capacity(kgf) Weight(g) Handle Move Arm Move Spindle Supplied Spindle Adjust.(mm) Arm Type Arm Length Base Type Base Height 2D 3D PDF
650 1680 46˚ 92˚ M12 x 100.0L 90 U Long Flange High
Model No. KJF-023-21A
Holding Capacity(kgf) Weight(g) Handle Move Arm Move Spindle Supplied Spindle Adjust.(mm) Arm Type Arm Length Base Type Base Height 2D 3D PDF
230 429 70˚ 82˚ M8 x 77.0L 40 U Short Angle Low
Model No. KJF-023-22A
Holding Capacity(kgf) Weight(g) Handle Move Arm Move Spindle Supplied Spindle Adjust.(mm) Arm Type Arm Length Base Type Base Height 2D 3D PDF
230 460 70˚ 82˚ M8 x 77.0L 80 U Long Angle Low
Model No. KJF-065-21S
Holding Capacity(kgf) Weight(g) Handle Move Arm Move Spindle Supplied Spindle Adjust.(mm) Arm Type Arm Length Base Type Base Height 2D 3D PDF
650 1580 46˚ 92˚ M12 x 100.0L 45 U Short Straight Low
Model No. KJF-065-22S
Holding Capacity(kgf) Weight(g) Handle Move Arm Move Spindle Supplied Spindle Adjust.(mm) Arm Type Arm Length Base Type Base Height 2D 3D PDF
650 1670 46˚ 92˚ M12 x 100.0L 90 U Long Straight Low
Model No. KJF-065-23S
Holding Capacity(kgf) Weight(g) Handle Move Arm Move Spindle Supplied Spindle Adjust.(mm) Arm Type Arm Length Base Type Base Height 2D 3D PDF
650 1570 46˚ 92˚ M12 x 100.0L 45 U Short Straight High
Model No. KJF-065-24S
Holding Capacity(kgf) Weight(g) Handle Move Arm Move Spindle Supplied Spindle Adjust.(mm) Arm Type Arm Length Base Type Base Height 2D 3D PDF
650 1670 46˚ 92˚ M12 x 100.0L 90 U Long Straight High
