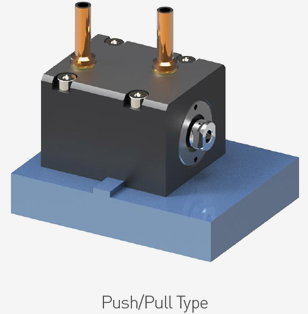

Push/Pull Horizontal Type Block Clamp

YOU CAN COUNT ON OUR EXPERTISE

Piping Method
Features
  • 복동
  • 다양한 사이즈
  • 설치용이
  • 내경범위 : ø20~80
  • 작동압력 : 15~250kgf/㎠
  • 피스톤속도 : 8~100mm/s
  • 사용온도 : 0~60℃
Model No.
  • 1
    Clamp Type
    BDH = Block Clamp, Double(Push/Pull)-acting, Horizontal type
  • 2
    Piston Diameter
    ex ) 28 = Ø28
  • 3
    Pistion Rod Stroke
    ex ) 15 = 15mm
BLOCK CLAMP PUSH/PULL HORIZONTAL TYPE
  • BDH-2010
  • BDH-2510
  • BDH-2815
  • BDH-3215
  • BDH-4015
  • BDH-5015
  • BDH-6315
  • BDH-8015
Specifications
MODEL NO. Max.Clamping Force (Ton) Effective Area (㎠) Oil Capacity (㎤) Weight(kg) Operating Pressure Range Operating Temperature Range
Push Pull Push Pull Push Pull
BDH-2010 0.79 0.50 3.1 2.0 3.1 2.0 0.7 15~250 kgf/㎠ 0~60℃
BDH-2015 4.7 3.0 0.7
BDH-2020 6.3 4.0 0.8
BDH-2025 7.9 5.0 0.8
BDH-2030 9.4 6.0 0.9
BDH-2510 1.23 0.84 4.9 3.4 4.9 3.4 0.9
BDH-2515 7.4 5.1 0.9
BDH-2520 9.8 6.7 1.0
BDH-2525 12.3 8.4 1.1
BDH-2530 14.7 10.1 1.1
BDH-2815 1.52 1.02 6.1 4.1 9.3 6.2 1.6
BDH-2825 15.4 10.4 1.8
BDH-2850 30.8 20.7 2.3
BDH-3215 2.00 1.37 8.0 5.5 12.0 8.2 1.8
BDH-3225 20.1 13.7 2.3
BDH-3250 40.2 27.5 3.5
BDH-4015 3.12 2.15 12.5 8.6 18.9 12.9 2.3
BDH-4025 31.4 21.6 2.6
BDH-4050 62.8 43.1 3.5
BDH-5015 4.95 3.40 19.8 13.6 49.5 20.2 3.4
BDH-5025 49.1 33.7 3.8
BDH-5050 98.2 67.4 4.8
BDH-6315 7.77 5.32 31.1 21.3 46.8 31.8 5.5
BDH-6325 78.0 53.2 6.1
BDH-6350 155.9 106.4 7.6
BDH-8015 12.55 8.60 50.2 34.4 75.4 51.5 10.7
BDH-8025 125.7 85.9 11.5
BDH-8050 251.4 171.8 13.3
BDH-100xx 19.63 13.47 78.5 53.9 - - -
BDH-125xx 30.67 22.38 122.7 89.5 - - -

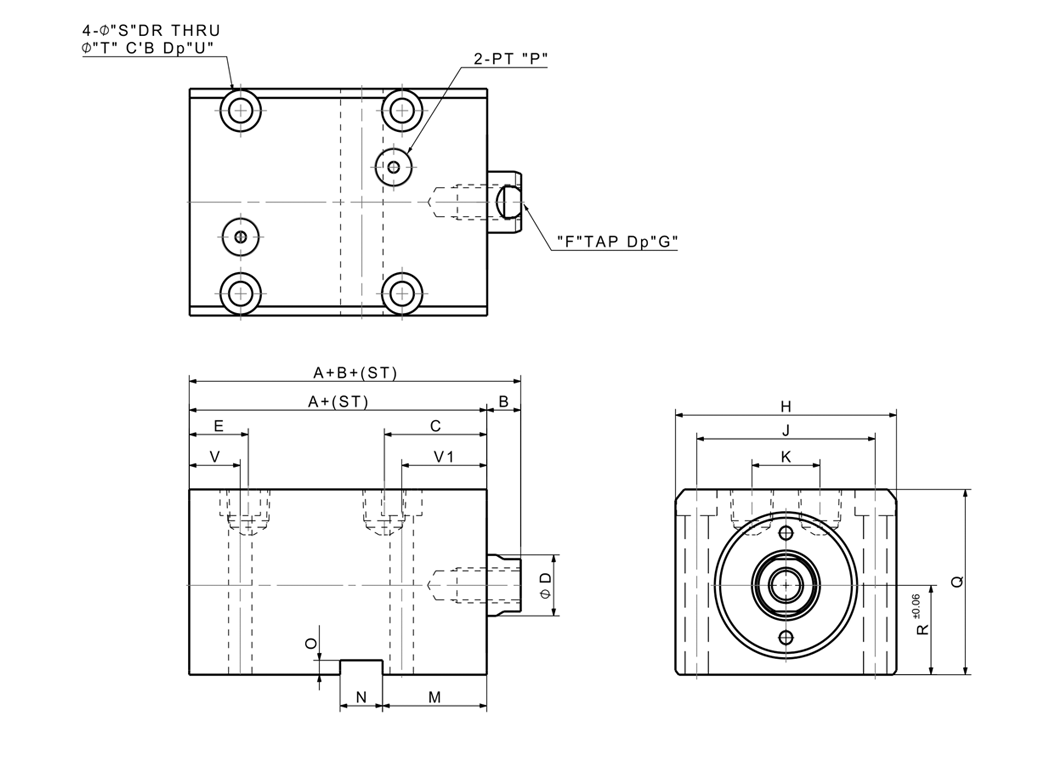

NO. DIMENSIONS(mm) Download 주문
A B C øD E F G H J K M N O P Q R øS øT U V V1 Pistondia. 2D 3D PDF
BDH-2010 43 8 20.5 12 12 M8 x 1.25P 16 45 35 0 22.5 10 3.3 1/8 40 18 5.5 9.5 6 12 18 20
BDH-2015 43 8 20.5 12 12 M8 x 1.25P 16 45 35 0 22.5 10 3.3 1/8 40 18 5.5 9.5 6 12 18 20
BDH-2020 43 8 20.5 12 12 M8 x 1.25P 16 45 35 0 22.5 10 3.3 1/8 40 18 5.5 9.5 6 12 18 20
BDH-2025 43 8 20.5 12 12 M8 x 1.25P 16 45 35 0 22.5 10 3.3 1/8 40 18 5.5 9.5 6 12 18 20
BDH-2030 43 8 20.5 12 12 M8 x 1.25P 16 45 35 0 22.5 10 3.3 1/8 40 18 5.5 9.5 6 12 18 20
BDH-2510 45 8 22 14 12 M8 x 1.25P 16 52 42 16 24.5 10 3.3 1/8 42.5 20.5 5.5 9.5 6 12 20 ø25
BDH-2515 45 8 22 14 12 M8 x 1.25P 16 52 42 16 24.5 10 3.3 1/8 42.5 20.5 5.5 9.5 6 12 20 ø25
BDH-2520 45 8 22 14 12 M8 x 1.25P 16 52 42 16 24.5 10 3.3 1/8 42.5 20.5 5.5 9.5 6 12 20 ø25
BDH-2525 45 8 22 14 12 M8 x 1.25P 16 52 42 16 24.5 10 3.3 1/8 42.5 20.5 5.5 9.5 6 12 20 ø25
BDH-2530 45 8 22 14 12 M8 x 1.25P 16 52 42 16 24.5 10 3.3 1/8 42.5 20.5 5.5 9.5 6 12 20 ø25
BDH-2815 50 8 23 16 12 M8 x 1.25P 12 62 50 16 25 10 3.3 1/8 52 24 6.6 11 6.5 12 20 ø28
BDH-2825 50 8 23 16 12 M8 x 1.25P 12 62 50 16 25 10 3.3 1/8 52 24 6.6 11 6.5 12 20 ø28
BDH-2850 50 8 23 16 12 M8 x 1.25P 12 62 50 16 25 10 3.3 1/8 52 24 6.6 11 6.5 12 20 ø28
BDH-3215 54 10 26 18 12 M10 x1.5P 15 70 56 20 28 12 3.3 1/4 56 25 9 14 9 10 20 ø32
BDH-3225 54 10 26 18 12 M10 x1.5P 15 70 56 20 28 12 3.3 1/4 56 25 9 14 9 10 20 ø32
BDH-3250 54 10 26 18 12 M10 x1.5P 15 70 56 20 28 12 3.3 1/4 56 25 9 14 9 10 20 ø32
BDH-4015 55 10 27 22.4 12 M12x1.75P 20 80 62 20 28 12 3.3 1/4 64 29 11 17.5 11 12 20 ø40
BDH-4025 55 10 27 22.4 12 M12x1.75P 20 80 62 20 28 12 3.3 1/4 64 29 11 17.5 11 12 20 ø40
BDH-4050 55 10 27 22.4 12 M12x1.75P 20 80 62 20 28 12 3.3 1/4 64 29 11 17.5 11 12 20 ø40
BDH-5015 60 10 28 28 13 M16 x2.0P 25 94 74 20 29 14 3.8 1/4 74 34 14 20 13 13 20 ø50
BDH-5025 60 10 28 28 13 M16 x2.0P 25 94 74 20 29 14 3.8 1/4 74 34 14 20 13 13 20 ø50
BDH-5050 60 10 28 28 13 M16 x2.0P 25 94 74 20 29 14 3.8 1/4 74 34 14 20 13 13 20 ø50
BDH-6315 67 13 31.5 35.5 15 M20 x2.5P 33 114 90 20 31 16 4.3 1/4 89 42 16 23 16 15 20 ø63
BDH-6325 67 13 31.5 35.5 15 M20 x2.5P 33 114 90 20 31 16 4.3 1/4 89 42 16 23 16 15 20 ø63
BDH-6350 67 13 31.5 35.5 15 M20 x2.5P 33 114 90 20 31 16 4.3 1/4 89 42 16 23 16 15 20 ø63
BDH-8015 78 17 33 45 20 M24 x3.0P 33 142 114 30 32 20 4.9 3/8 109 52 18 26 18 20 20 ø80
BDH-8025 78 17 33 45 20 M24 x3.0P 33 142 114 30 32 20 4.9 3/8 109 52 18 26 18 20 20 ø80
BDH-8050 78 17 33 45 20 M24 x3.0P 33 142 114 30 32 20 4.9 3/8 109 52 18 26 18 20 20 ø80
BDH-100xx 88 20 42 56 23 M36x4.0P 40 164 134 46 40 20 5.0 3/8 133 65 20 31 20 23 26 ø100
BDH-125xx 102 25 43 65 25 M42x4.5P 45 196 164 52 40 20 5.0 1/2 163 80 21 31 22 23 26 ø125
