Bolt Type Swivel Pads

YOU CAN COUNT ON OUR EXPERTISE

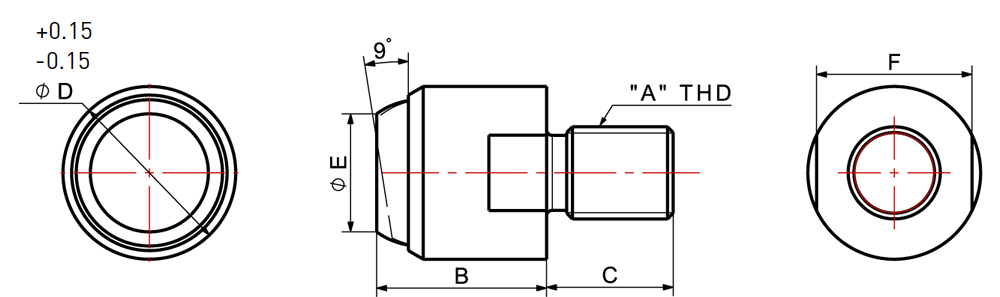

Bolt Type-Flat Pad
MODEL NO. DIMENSIONS (mm) Download
A B C øD E F Max Load Capacity Type 2D 3D PDF
SPF-0600 M6x1.0P 13 8 13 7.7 11 0.8ton Flat
SPF-0800 M8x1.25P 12.5 8 14 7.7 11 0.8ton Flat
SPF-0800-A M8x1.25P 20.5 10 20 10.3 17 0.8ton Flat
SPF-0815 M8x1.25P 12.5 15 14 7.7 11 0.8ton Flat
SPF-0825 M8x1.25P 12.5 25 14 7.7 11 0.8ton Flat
SPF-1000 M10x1.5P 20.5 10 20 10.3 17 2.1ton Flat
SPF-1015 M10x1.5P 20.5 15 20 10.3 17 2.1ton Flat
SPF-1030 M10x1.5P 20.5 30 20 10.3 17 2.1ton Flat
SPF-1200 M12x1.75P 20.5 12 20 10.3 17 2.1ton Flat
SPF-1235 M12x1.75P 20.5 35 20 10.3 17 2.1ton Flat
SPF-1600 M16x2.0P 29.5 16 30 20.5 27 7.9ton Flat
SPF-1640 M16x2.0P 29.5 40 30 20.5 27 7.9ton Flat

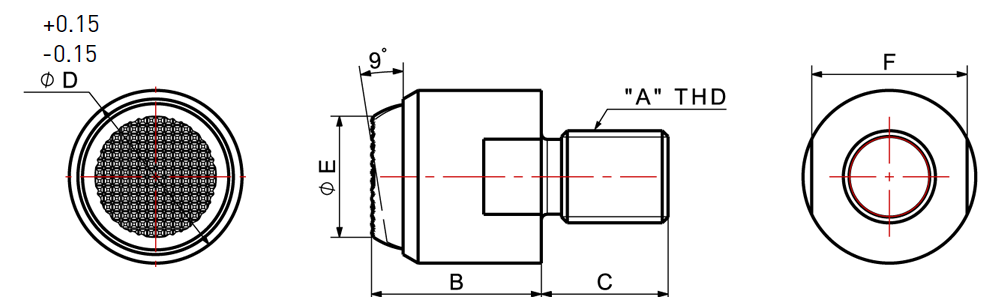

Bolt Type-Diamond Pad
MODEL NO. DIMENSIONS (mm) Download
A B C øD E F Max Load Capacity Type 2D 3D PDF
SPD-0600 M6x1.0P 13 8 13 7.7 11 0.8ton Diamond
SPD-0800 M8x1.25P 12.5 8 14 7.7 11 0.8ton Diamond
SPD-0800-A M8x1.25P 20.5 10 20 10.3 17 0.8ton Diamond
SPD-0815 M8x1.25P 12.5 15 14 7.7 11 0.8ton Diamond
SPD-0825 M8x1.25P 12.5 25 14 7.7 11 0.8ton Diamond
SPD-1000 M10x1.5P 20.5 10 20 10.3 17 2.1ton Diamond
SPD-1015 M10x1.5P 20.5 15 20 10.3 17 2.1ton Diamond
SPD-1030 M10x1.5P 20.5 30 20 10.3 17 2.1ton Diamond
SPD-1200 M12x1.75P 20.5 12 20 10.3 17 2.1ton Diamond
SPD-1235 M12x1.75P 20.5 35 20 10.3 17 2.1ton Diamond
SPD-1600 M16x2.0P 29.5 16 30 20.5 27 7.9ton Diamond
SPD-1640 M16x2.0P 29.5 40 30 20.5 27 7.9ton Diamond
