STAINLESS STEEL
YOU CAN COUNT ON OUR EXPERTISE

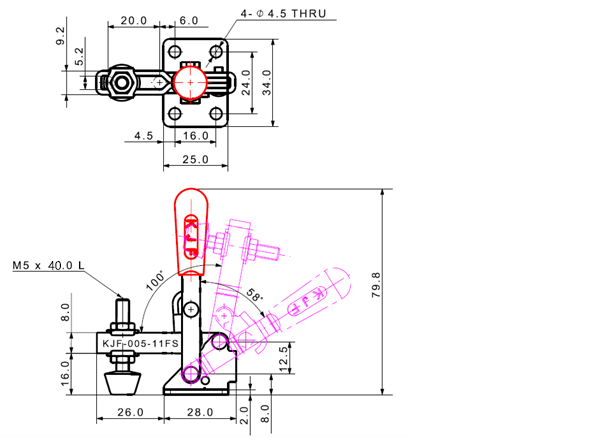

Model No. KJF-005-11FS
| Holding Capacity(kgf) | Weight(g) | Handle Move | Arm Move | Spindle Supplied | Spindle Adjust.(mm) | Arm Type | Arm Length | Base Type | Base Height | 2D | 3D | 주문 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 63 | 58˚ | 100˚ | M5 x 36.0L | 20 | U | Short | Flange | Low |  |
 |
 |
 |
Model No. KJF-009-11FS
| Holding Capacity(kgf) | Weight(g) | Handle Move | Arm Move | Spindle Supplied | Spindle Adjust.(mm) | Arm Type | Arm Length | Base Type | Base Height | 2D | 3D | 주문 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 90 | 157 | 60˚ | 100˚ | M6 x 44.0L | 20 | U | Short | Flange | Low | |
|
|
|
Model No. KJF-010-11FS
| Holding Capacity(kgf) | Weight(g) | Handle Move | Arm Move | Spindle Supplied | Spindle Adjust.(mm) | Arm Type | Arm Length | Base Type | Base Height | 2D | 3D | 주문 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100 | 165 | 62˚ | 101˚ | M6 x 58.0L | 34 | U | Short | Flange | Low | |
|
|
|
Model No. KJF-010-11AS
| Holding Capacity(kgf) | Weight(g) | Handle Move | Arm Move | Spindle Supplied | Spindle Adjust.(mm) | Arm Type | Arm Length | Base Type | Base Height | 2D | 3D | 주문 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100 | 187 | 62˚ | 101˚ | M6 x 58.0L | 34 | U | Short | Angle | Low | |
|
|
|
Model No. KJF-018-11FS
| Holding Capacity(kgf) | Weight(g) | Handle Move | Arm Move | Spindle Supplied | Spindle Adjust.(mm) | Arm Type | Arm Length | Base Type | Base Height | 2D | 3D | 주문 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 180 | 376 | 66˚ | 114˚ | M8 x 77.0L | 48 | U | Short | Flange | Low | |
|
|
|
Model No. KJF-018-11AS
| Holding Capacity(kgf) | Weight(g) | Handle Move | Arm Move | Spindle Supplied | Spindle Adjust.(mm) | Arm Type | Arm Length | Base Type | Base Height | 2D | 3D | 주문 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 180 | 466 | 66˚ | 114˚ | M8 x 77.0L | 48 | U | Short | Angle | Low | |
|
|
|
Model No. KJF-034-11FS
| Holding Capacity(kgf) | Weight(g) | Handle Move | Arm Move | Spindle Supplied | Spindle Adjust.(mm) | Arm Type | Arm Length | Base Type | Base Height | 2D | 3D | 주문 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 340 | 659 | 58˚ | 103˚ | M10 x 85.0L | 62 | U | Short | Flange | Low | |
|
|
|
Model No. KJF-003-21FS
| Holding Capacity(kgf) | Weight(g) | Handle Move | Arm Move | Spindle Supplied | Spindle Adjust.(mm) | Arm Type | Arm Length | Base Type | Base Height | 2D | 3D | 주문 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 30 | 31 | 66˚ | 80˚ | M5 x 23.0L | 12 | U | Short | Flange | Low | |
|
|
|
Model No. KJF-006-21FS
| Holding Capacity(kgf) | Weight(g) | Handle Move | Arm Move | Spindle Supplied | Spindle Adjust.(mm) | Arm Type | Arm Length | Base Type | Base Height | 2D | 3D | 주문 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 60 | 84 | 71˚ | 80˚ | M5 x 40.0L | 25 | U | Short | Flange | Low | |
|
|
|
Model No. KJF-007-21FS
| Holding Capacity(kgf) | Weight(g) | Handle Move | Arm Move | Spindle Supplied | Spindle Adjust.(mm) | Arm Type | Arm Length | Base Type | Base Height | 2D | 3D | 주문 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 70 | 56 | 179˚ | 95˚ | M5 x 36.0L | 14 | U | Short | Flange | Low | |
|
|
|
Model No. KJF-009-21FS
| Holding Capacity(kgf) | Weight(g) | Handle Move | Arm Move | Spindle Supplied | Spindle Adjust.(mm) | Arm Type | Arm Length | Base Type | Base Height | 2D | 3D | 주문 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 90 | 126 | 64˚ | 79˚ | M6 x 58.0L | 36 | U | Short | Flange | Low | |
|
|
|
Model No. KJF-022-21FS
| Holding Capacity(kgf) | Weight(g) | Handle Move | Arm Move | Spindle Supplied | Spindle Adjust.(mm) | Arm Type | Arm Length | Base Type | Base Height | 2D | 3D | 주문 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 220 | 250 | 68˚ | 83˚ | M8 x 67.0L | 44 | U | Short | Flange | Low | |
|
|
|
Model No. KJF-014-31FSR
| Holding Capacity(kgf) | Weight(g) | Handle Move | Spindle Supplied | Rod Stroke(mm) | Base Type | 2D | 3D | 주문 | |
|---|---|---|---|---|---|---|---|---|---|
| 140 | 303 | 174˚ | M8 x 49.0L | 32 | Flange | |
|
|
|
Model No. KJF-040-31FSR
| Holding Capacity(kgf) | Weight(g) | Handle Move | Spindle Supplied | Rod Stroke(mm) | Base Type | 2D | 3D | 주문 | |
|---|---|---|---|---|---|---|---|---|---|
| 400 | 600 | 180˚ | M10 x 50.0L | 42 | Flange | |
|
|
|
Model No. KJF-015-31FS
| Holding Capacity(kgf) | Weight(g) | Handle Move | Spindle Supplied | Rod Stroke(mm) | Base Type | 2D | 3D | 주문 | |
|---|---|---|---|---|---|---|---|---|---|
| 150 | 281 | 186˚ | M8 x 50.0L | 40 | Threaded | |
|
|
|
Model No. KJF-016-41FS
| Holding Capacity(kgf) | Weight(g) | U-bolt Adjust.(mm) | Base Type | 2D | 3D | 주문 | |
|---|---|---|---|---|---|---|---|
| 160 | 78 | 10 | Flange | |
|
|
|
Model No. KJF-016-42FS
| Holding Capacity(kgf) | Weight(g) | U-bolt Adjust.(mm) | Base Type | 2D | 3D | 주문 | |
|---|---|---|---|---|---|---|---|
| 160 | 82 | 10 | Flange | |
|
|
|
Model No. KJF-025-41FS
| Holding Capacity(kgf) | Weight(g) | U-bolt Adjust.(mm) | Base Type | 2D | 3D | 주문 | |
|---|---|---|---|---|---|---|---|
| 250 | 165 | 24 | Flange | |
|
|
|
Model No. KJF-025-42FS
| Holding Capacity(kgf) | Weight(g) | U-bolt Adjust.(mm) | Base Type | 2D | 3D | 주문 | |
|---|---|---|---|---|---|---|---|
| 250 | 169 | 24 | Flange | |
|
|
|
Model No. KJF-032-41FAS
| Holding Capacity(kgf) | Weight(g) | U-bolt Adjust.(mm) | Base Type | 2D | 3D | 주문 | |
|---|---|---|---|---|---|---|---|
| 320 | 251 | 20 | Flange | |
|
|
|
Model No. KJF-032-42FAS
| Holding Capacity(kgf) | Weight(g) | U-bolt Adjust.(mm) | Base Type | 2D | 3D | 주문 | |
|---|---|---|---|---|---|---|---|
| 320 | 265 | 20 | Flange | |
|
|
|
Model No. KJF-032-41FS
| Holding Capacity(kgf) | Weight(g) | U-bolt Adjust.(mm) | Base Type | 2D | 3D | 주문 | |
|---|---|---|---|---|---|---|---|
| 320 | 245 | 20 | Flange | |
|
|
|
Model No. KJF-032-42FS
| Holding Capacity(kgf) | Weight(g) | U-bolt Adjust.(mm) | Base Type | 2D | 3D | 주문 | |
|---|---|---|---|---|---|---|---|
| 320 | 260 | 20 | Flange | |
|
|
|
Model No. KJF-070-41FS
| Holding Capacity(kgf) | Weight(g) | U-bolt Adjust.(mm) | Base Type | 2D | 3D | 주문 | |
|---|---|---|---|---|---|---|---|
| 700 | 771 | 30 | Flange | |
|
|
|
Model No. KJF-070-42FS
| Holding Capacity(kgf) | Weight(g) | U-bolt Adjust.(mm) | Base Type | 2D | 3D | 주문 | |
|---|---|---|---|---|---|---|---|
| 700 | 793 | 30 | Flange | |
|
|
|
Model No. KJF-090-41FSL
| Holding Capacity(kgf) | Weight(g) | U-bolt Adjust.(mm) | Base Type | 2D | 3D | 주문 | |
|---|---|---|---|---|---|---|---|
| 900 | 750 | 8.5 | Flange | |
|
|
|
