KJF_Total_Clamping_System

Hydraulic Clamp

Pneumatic Clamp

VERTICAL TYPE

YOU CAN COUNT ON OUR EXPERTISE

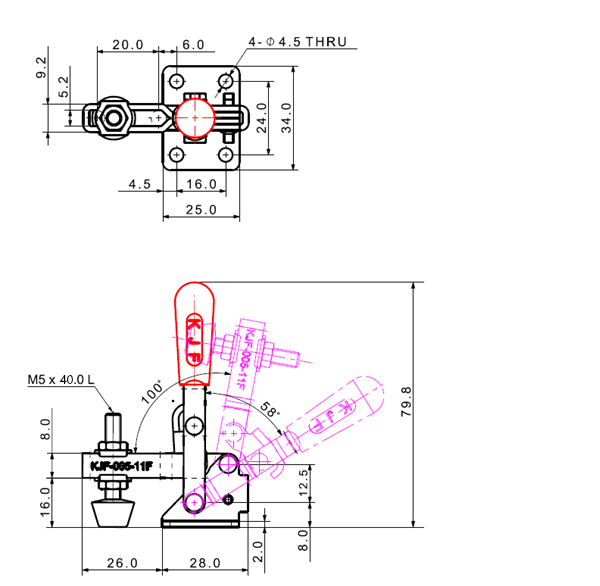

Model No. KJF-005-11F

* Stainless Steel : Available

Holding Capacity(kgf)	Weight(g)	Handle Move	Arm Move	Spindle Supplied	Spindle Adjust.(mm)	Arm Type	Arm Length	Base Type	Base Height	2D	3D	PDF
50	66	58˚	100˚	M5 x 40.0L	20	U	Short	Flange	Low

Model No. KJF-009-11FS

* Material : Stainless Steel

Holding Capacity(kgf)	Weight(g)	Handle Move	Arm Move	Spindle Supplied	Spindle Adjust.(mm)	Arm Type	Arm Length	Base Type	Base Height	2D	3D	PDF
90	157	60˚	100˚	M6 x 44.4L	20	U	Short	Flange	Low

Model No. KJF-010-11F

* Stainless is available.(Click!)

Holding Capacity(kgf)	Weight(g)	Handle Move	Arm Move	Spindle Supplied	Spindle Adjust.(mm)	Arm Type	Arm Length	Base Type	Base Height	2D	3D	PDF
100	165	62˚	101˚	M6 x 58.0L	34	U	Short	Flange	Low

Model No. KJF-010-12F

Holding Capacity(kgf)	Weight(g)	Handle Move	Arm Move	Spindle Supplied	Spindle Adjust.(mm)	Arm Type	Arm Length	Base Type	Base Height	2D	3D	PDF
100	185	62˚	101˚	M6 x 58.0L	82	U	Long	Flange	Low

Model No. KJF-010-13F

Holding Capacity(kgf)	Weight(g)	Handle Move	Arm Move	Spindle Supplied	Spindle Adjust.(mm)	Arm Type	Arm Length	Base Type	Base Height	2D	3D	PDF
100	175	62˚	101˚	M6 x 58.0L	58	U	Middle	Flange	Low

Model No. KJF-018-11F

* Stainless Steel : Available

Holding Capacity(kgf)	Weight(g)	Handle Move	Arm Move	Spindle Supplied	Spindle Adjust.(mm)	Arm Type	Arm Length	Base Type	Base Height	2D	3D	PDF
180	400	66˚	114˚	M8 x 77.0L	48	U	Short	Flange	Low

Model No. KJF-018-12F

Holding Capacity(kgf)	Weight(g)	Handle Move	Arm Move	Spindle Supplied	Spindle Adjust.(mm)	Arm Type	Arm Length	Base Type	Base Height	2D	3D	PDF
180	431	66˚	114˚	M8 x 77.0L	98	U	Middle	Flange	Low

Model No. KJF-018-13F

Holding Capacity(kgf)	Weight(g)	Handle Move	Arm Move	Spindle Supplied	Spindle Adjust.(mm)	Arm Type	Arm Length	Base Type	Base Height	2D	3D	PDF
180	449	66˚	114˚	M8 x 77.0L	127	U	Long	Flange	Low

Model No. KJF-040-12F

Holding Capacity(kgf)	Weight(g)	Handle Move	Arm Move	Spindle Supplied	Spindle Adjust.(mm)	Arm Type	Arm Length	Base Type	Base Height	2D	3D	PDF
400	889	62˚	91˚	M10 x 89.0L	N/A	Solid	Long	Flange	Low

Model No. KJF-034-11FS

* Material : Stainless Steel

Holding Capacity(kgf)	Weight(g)	Handle Move	Arm Move	Spindle Supplied	Spindle Adjust.(mm)	Arm Type	Arm Length	Base Type	Base Height	2D	3D	PDF
340	659	58˚	103˚	M10 x 85.0L	62	U	Short	Flange	Low

Model No. KJF-036-11F

Holding Capacity(kgf)	Weight(g)	Handle Move	Arm Move	Spindle Supplied	Spindle Adjust.(mm)	Arm Type	Arm Length	Base Type	Base Height	2D	3D	PDF
360	819	60˚	115˚	M10 x 90.0L	60	U	Short	Flange	Low

Model No. KJF-036-12F

Holding Capacity(kgf)	Weight(g)	Handle Move	Arm Move	Spindle Supplied	Spindle Adjust.(mm)	Arm Type	Arm Length	Base Type	Base Height	2D	3D	PDF
360	884	60˚	115˚	M10 x 90.0L	114	U	Long	Flange	Low

Model No. KJF-045-11F

Holding Capacity(kgf)	Weight(g)	Handle Move	Arm Move	Spindle Supplied	Spindle Adjust.(mm)	Arm Type	Arm Length	Base Type	Base Height	2D	3D	PDF
450	1410	62˚	99˚	M12 x 100.0L	103	U	Short	Flange	Low

Model No. KJF-045-12F

Holding Capacity(kgf)	Weight(g)	Handle Move	Arm Move	Spindle Supplied	Spindle Adjust.(mm)	Arm Type	Arm Length	Base Type	Base Height	2D	3D	PDF
450	1470	62˚	99˚	M12 x 100.0L	143	U	Long	Flange	Low

Model No. KJF-055-11F

Holding Capacity(kgf)	Weight(g)	Handle Move	Arm Move	Spindle Supplied	Spindle Adjust.(mm)	Arm Type	Arm Length	Base Type	Base Height	2D	3D	PDF
550	2400	48˚	92˚	M16 x 130.0L	108	U	Short	Flange	Low

Model No. KJF-055-12F

Holding Capacity(kgf)	Weight(g)	Handle Move	Arm Move	Spindle Supplied	Spindle Adjust.(mm)	Arm Type	Arm Length	Base Type	Base Height	2D	3D	PDF
550	2560	48˚	92˚	M16 x 130.0L	168	U	Long	Flange	Low

Model No. KJF-010-11S

Holding Capacity(kgf)	Weight(g)	Handle Move	Arm Move	Spindle Supplied	Spindle Adjust.(mm)	Arm Type	Arm Length	Base Type	Base Height	2D	3D	PDF
100	163	62˚	101˚	M6 x 58.0L	34	U	Short	Straight	Low

Model No. KJF-010-12S

Holding Capacity(kgf)	Weight(g)	Handle Move	Arm Move	Spindle Supplied	Spindle Adjust.(mm)	Arm Type	Arm Length	Base Type	Base Height	2D	3D	PDF
100	182	62˚	101˚	M6 x 58.0L	82	U	Long	Straight	Low

Model No. KJF-010-13S

Holding Capacity(kgf)	Weight(g)	Handle Move	Arm Move	Spindle Supplied	Spindle Adjust.(mm)	Arm Type	Arm Length	Base Type	Base Height	2D	3D	PDF
100	175	62˚	101˚	M6 x 58.0L	58	U	Middle	Straight	Low

Model No. KJF-018-11S

Holding Capacity(kgf)	Weight(g)	Handle Move	Arm Move	Spindle Supplied	Spindle Adjust.(mm)	Arm Type	Arm Length	Base Type	Base Height	2D	3D	PDF
180	403	66˚	114˚	M8 x 77.0L	48	U	Short	Straight	Low

Model No. KJF-018-12S

Holding Capacity(kgf)	Weight(g)	Handle Move	Arm Move	Spindle Supplied	Spindle Adjust.(mm)	Arm Type	Arm Length	Base Type	Base Height	2D	3D	PDF
180	403	66˚	114˚	M8 x 77.0L	98	U	Middle	Straight	Low

Model No. KJF-018-13S

Holding Capacity(kgf)	Weight(g)	Handle Move	Arm Move	Spindle Supplied	Spindle Adjust.(mm)	Arm Type	Arm Length	Base Type	Base Height	2D	3D	PDF
180	452	66˚	114˚	M8 x 77.0L	127	U	Long	Straight	Low

Model No. KJF-045-11S

Holding Capacity(kgf)	Weight(g)	Handle Move	Arm Move	Spindle Supplied	Spindle Adjust.(mm)	Arm Type	Arm Length	Base Type	Base Height	2D	3D	PDF
450	1420	62˚	99˚	M12 x 100.0L	103	U	Short	Straight	Low

Model No. KJF-045-12S

Holding Capacity(kgf)	Weight(g)	Handle Move	Arm Move	Spindle Supplied	Spindle Adjust.(mm)	Arm Type	Arm Length	Base Type	Base Height	2D	3D	PDF
450	1440	62˚	99˚	M12 x 100.0L	143	U	Long	Straight	Low

Model No. KJF-055-11S

Holding Capacity(kgf)	Weight(g)	Handle Move	Arm Move	Spindle Supplied	Spindle Adjust.(mm)	Arm Type	Arm Length	Base Type	Base Height	2D	3D	PDF
550	2400	48˚	92˚	M16 x 130.0L	108	U	Short	Straight	Low

Model No. KJF-055-12S

Holding Capacity(kgf)	Weight(g)	Handle Move	Arm Move	Spindle Supplied	Spindle Adjust.(mm)	Arm Type	Arm Length	Base Type	Base Height	2D	3D	PDF
550	2540	48˚	92˚	M16 x 130.0L	168	U	Long	Straight	Low

Model No. KJF-010-11A

Holding Capacity(kgf)	Weight(g)	Handle Move	Arm Move	Spindle Supplied	Spindle Adjust.(mm)	Arm Type	Arm Length	Base Type	Base Height	2D	3D	PDF
100	187	62˚	101˚	M6 x 58.0L	34	U	Short	Angle	Low

Model No. KJF-010-12A

Holding Capacity(kgf)	Weight(g)	Handle Move	Arm Move	Spindle Supplied	Spindle Adjust.(mm)	Arm Type	Arm Length	Base Type	Base Height	2D	3D	PDF
100	207	62˚	101˚	M6 x 58.0L	82	U	Long	Angle	Low

Model No. KJF-010-13A

Holding Capacity(kgf)	Weight(g)	Handle Move	Arm Move	Spindle Supplied	Spindle Adjust.(mm)	Arm Type	Arm Length	Base Type	Base Height	2D	3D	PDF
100	199	62˚	101˚	M6 x 58.0L	58	U	Middle	Angle	Low

Model No. KJF-018-11A

Holding Capacity(kgf)	Weight(g)	Handle Move	Arm Move	Spindle Supplied	Spindle Adjust.(mm)	Arm Type	Arm Length	Base Type	Base Height	2D	3D	PDF
180	466	66˚	114˚	M8 x 77.0L	48	U	Short	Angle	Low

Model No. KJF-018-12A

Holding Capacity(kgf)	Weight(g)	Handle Move	Arm Move	Spindle Supplied	Spindle Adjust.(mm)	Arm Type	Arm Length	Base Type	Base Height	2D	3D	PDF
180	503	66˚	114˚	M8 x 77.0L	98	U	Middle	Angle	Low

Model No. KJF-018-13A

Holding Capacity(kgf)	Weight(g)	Handle Move	Arm Move	Spindle Supplied	Spindle Adjust.(mm)	Arm Type	Arm Length	Base Type	Base Height	2D	3D	PDF
180	515	66˚	114˚	M8 x 77.0L	127	U	Long	Angle	Low

Model No. KJF-018-15F

Holding Capacity(kgf)	Weight(g)	Handle Move	Arm Move	Spindle Supplied	Spindle Adjust.(mm)	Arm Type	Arm Length	Base Type	Base Height	2D	3D	PDF
180	405	66˚	114˚	M8 x 77.0L	N/A	Solid	Long	Flange	Low

Model No. KJF-018-16F

Holding Capacity(kgf)	Weight(g)	Handle Move	Arm Move	Spindle Supplied	Spindle Adjust.(mm)	Arm Type	Arm Length	Base Type	Base Height	2D	3D	PDF
180	441	66˚	114˚	M8 x 77.0L	N/A	Solid	Long	Flange	Low

Model No. KJF-018-17F

Holding Capacity(kgf)	Weight(g)	Handle Move	Arm Move	Spindle Supplied	Spindle Adjust.(mm)	Arm Type	Arm Length	Base Type	Base Height	2D	3D	PDF
180	479	66˚	114˚	M8 x 77.0L	N/A	Solid	Long	Flange	Low

Model No. KJF-017-16S

Holding Capacity(kgf)	Weight(g)	Handle Move	Arm Move	Spindle Supplied	Spindle Adjust.(mm)	Arm Type	Arm Length	Base Type	Base Height	2D	3D	PDF	주문
170	406	56˚	99.3˚	M8 x 67.0L	N/A	Solid	Short	Straight	Low

Model No. KJF-018-15S

Holding Capacity(kgf)	Weight(g)	Handle Move	Arm Move	Spindle Supplied	Spindle Adjust.(mm)	Arm Type	Arm Length	Base Type	Base Height	2D	3D	PDF
180	415	66˚	114˚	M8 x 77.0L	N/A	Solid	Long	Straight	Low

Model No. KJF-018-16S

Holding Capacity(kgf)	Weight(g)	Handle Move	Arm Move	Spindle Supplied	Spindle Adjust.(mm)	Arm Type	Arm Length	Base Type	Base Height	2D	3D	PDF
180	440	66˚	114˚	M8 x 77.0L	N/A	Solid	Long	Straight	Low

Model No. KJF-018-17S

Holding Capacity(kgf)	Weight(g)	Handle Move	Arm Move	Spindle Supplied	Spindle Adjust.(mm)	Arm Type	Arm Length	Base Type	Base Height	2D	3D	PDF
180	471	66˚	114˚	M8 x 77.0L	N/A	Solid	Long	Straight	Low

Model No. KJF-018-15A

Holding Capacity(kgf)	Weight(g)	Handle Move	Arm Move	Spindle Supplied	Spindle Adjust.(mm)	Arm Type	Arm Length	Base Type	Base Height	2D	3D	PDF
180	477	66˚	114˚	M8 x 77.0L	N/A	Solid	Long	Angle	Low

Model No. KJF-018-16A

Holding Capacity(kgf)	Weight(g)	Handle Move	Arm Move	Spindle Supplied	Spindle Adjust.(mm)	Arm Type	Arm Length	Base Type	Base Height	2D	3D	PDF
180	508	66˚	114˚	M8 x 77.0L	N/A	Solid	Long	Angle	Low

Model No. KJF-018-17A

Holding Capacity(kgf)	Weight(g)	Handle Move	Arm Move	Spindle Supplied	Spindle Adjust.(mm)	Arm Type	Arm Length	Base Type	Base Height	2D	3D	PDF
180	538	66˚	114˚	M8 x 77.0L	N/A	Solid	Long	Angle	Low
